HSU12VHGL-W ROOM AIR CONDITIONER

Products

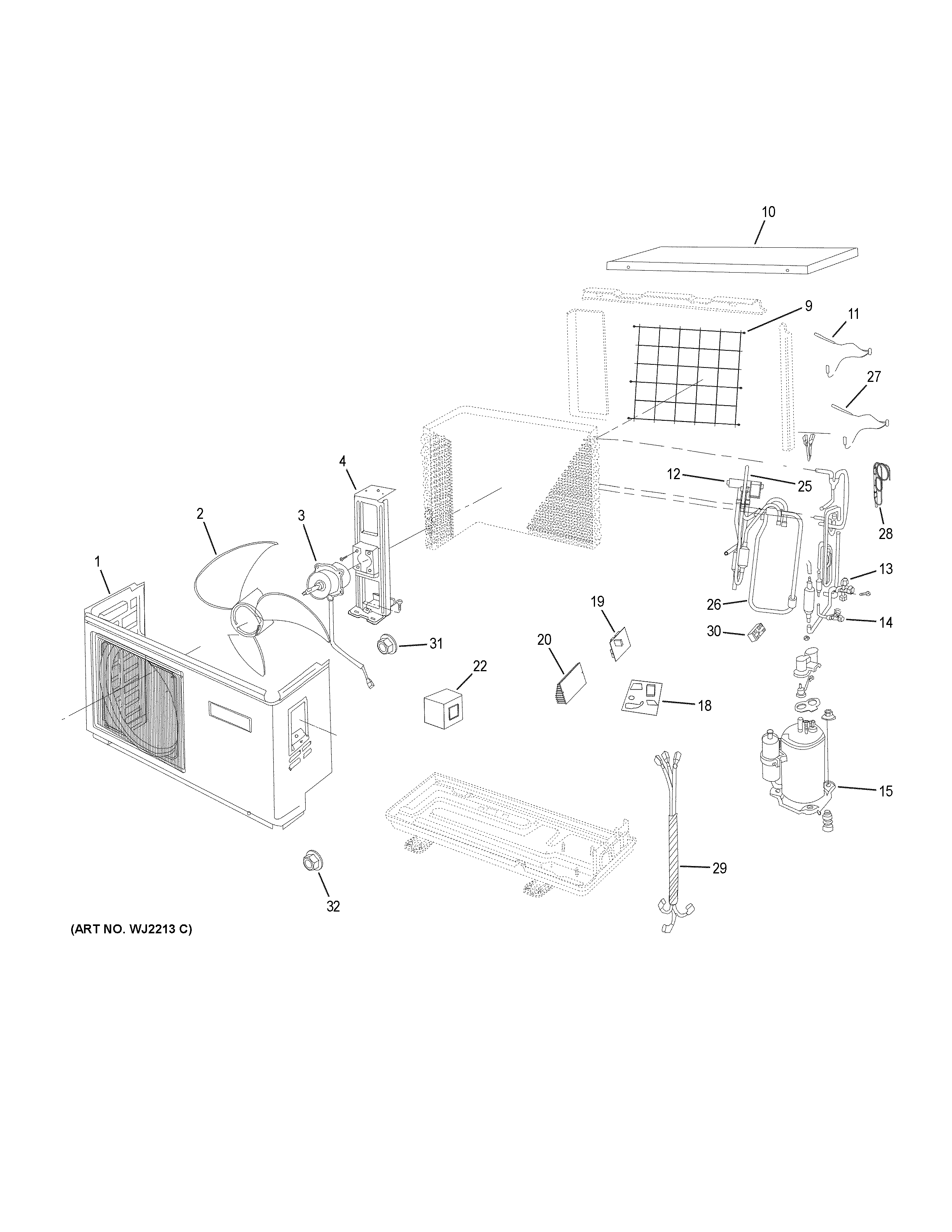

Position	Product
1	WJ76X23478 GE Casing
2	WJ73X23190 GE Fan Blade
3	OUTDOOR FAN MOTOR
4	WJ65X23207 GE Outdoor Fan Motor Bracket
9	WJ71X23338 GE Rear Grille
10	WJ76X23200 GE Top Cover
11	WJ26X23009 GE Suction Sensor
12	WJ53X22967 GE Valve 4-Way
13	WJ53X24974 GE Vapor Service Valve
14	WJ53X22991 GE Liquid Service Valve
15	WJ98X23186 GE Compressor
18	OUTDOOR POWER CONTROL BOARD
19	WJ26X24099 GE Inverter Assembly
20	WJ26X23195 GE Radiator
22	WJ26X23694 GE Reactor
25	DISCHARGE TUBE
26	DISCHARGE TUBE
27	TEMPERATURE SENSOR
28	WJ53X23303 GE Electronic Expansion Valve
29	WJ35X23332 GE Outdoor Wiring Harness
30	WJ27X22985 GE Terminal Block
31	FLANGE NUT
32	WJ01X22974 GE Flange Nut
