HSU12VHJ(DB)-G ROOM AIR CONDITIONER

HSU12VHJ(DB)-G ROOM AIR CONDITIONER

Written by

in

HSU12VHJ(DB)-G ROOM AIR CONDITIONER

Products

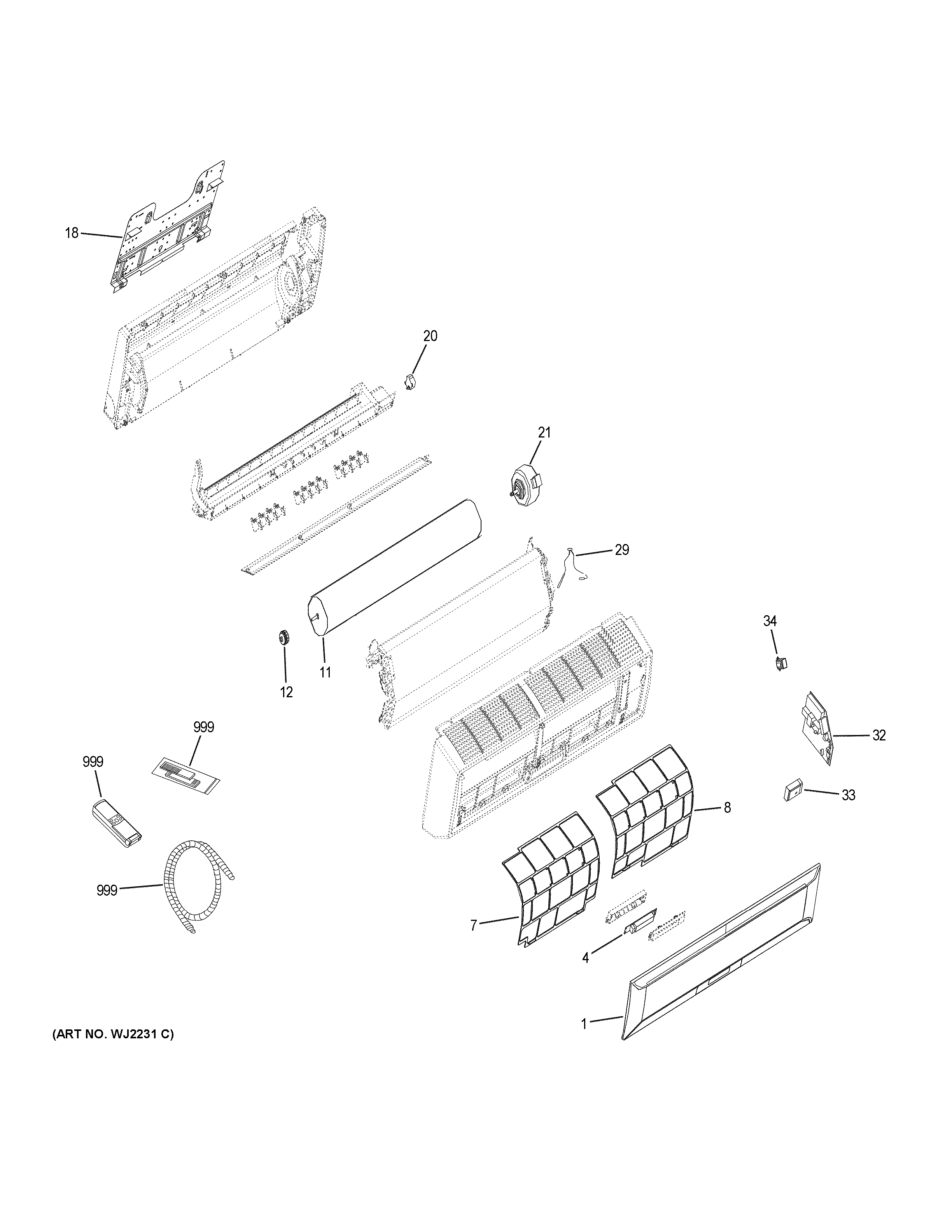

Position	Product
1	TOP PANEL
4	DISPLAY PANEL
7	AIR FILTER LEFT
8	AIR FILTER RIGHT
11	CROSS FLOW FAN
12	FAN BEARING
18	REAR BRACKET
20	STEPPER MOTOR
21	INDOOR FAN MOTOR
29	SENSOR
32	INDOOR POWER CONTROL BOARD
33	WJ26X23043 GE Terminal Block
34	TRANSFORMER
999	REMOTE CONTROL
999	WJ01X23311 GE Air Purifier Filter
999	DRAIN HOSE
