HSU18VHG(DB)-W ROOM AIR CONDITIONER

Products

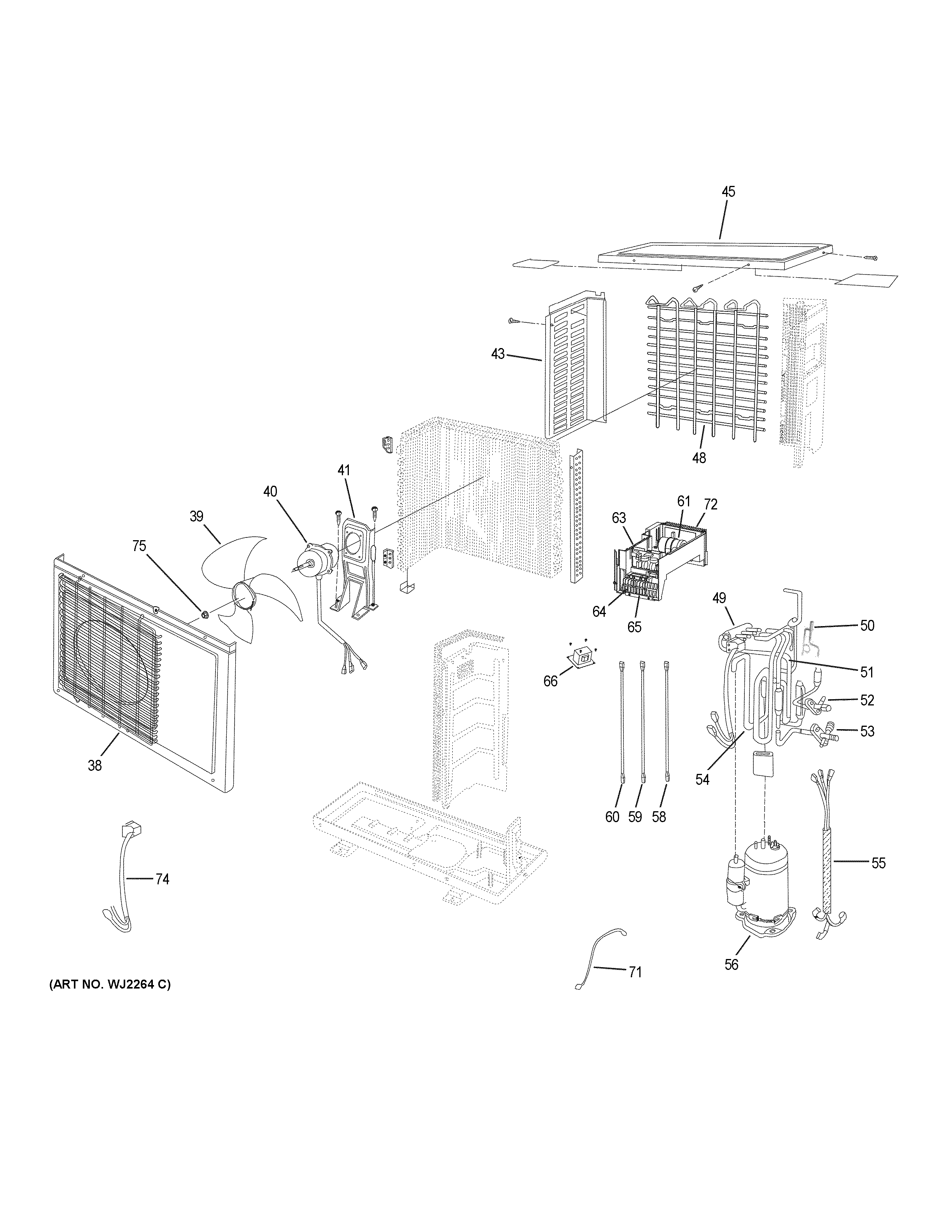

PositionProduct
38CASING
39WJ73X23305 GE Fan Blade
40OUTDOOR FAN MOTOR
41FAN MOTOR BRACKET
43LEFT SIDE PANEL
45WJ71X23357 GE Top Panel
48WJ71X23339 GE Rear Grille
49WJ53X22987 GE 4-Way Valve Assembly
50WJ53X22996 GE Electronic Expansion Valve
51WJ53X23295 GE Discharge Tube
52WJ53X22991 GE Liquid Service Valve
53WJ53X22992 GE Service Valve Vapor
54WJ53X23348 GE Suction Tube
55WJ35X25394 GE Outdoor Wire Harness
56WJ98X23285 GE Compressor
58WJ26X23286 GE Compressor Temperature Sensor
59WJ26X23334 GE Sensor Pipe
60WJ26X23278 GE Ambient Temperature Sensor
61OUTDOOR MODULE
63WJ26X23331 GE Outdoor Power Control Board
64TERMINAL BLOCK
65WJ27X23011 GE Indoor Terminal Block
66WJ27X23006 GE Reactor
71WJ26X23346 GE Temperature Suction Sensor
72RADIATOR
74WJ35X22997 GE Coil Electronic Expansion Valve
75WJ01X23312 GE Flange Nut
