HSU18VHGL-W ROOM AIR CONDITIONER

Products

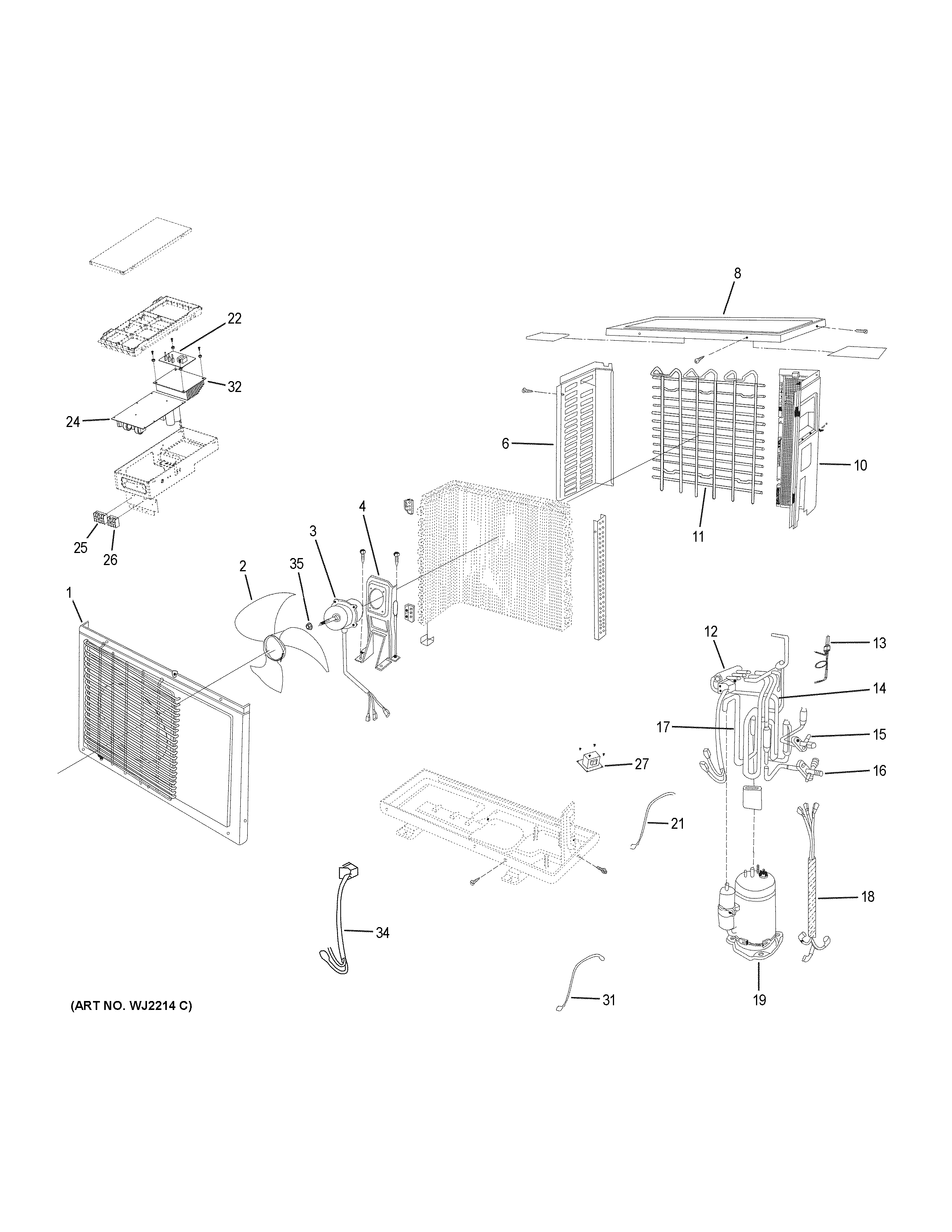

PositionProduct
1CASING
2WJ73X23305 GE Fan Blade
3OUTDOOR FAN MOTOR
4FAN MOTOR BRACKET
6WJ71X23696 GE Left Side Panel
8WJ71X23357 GE Top Panel
10WJ71X23699 GE Right Side Panel
11WJ71X23339 GE Rear Grille
12WJ53X22987 GE 4-Way Valve Assembly
13WJ53X22996 GE Electronic Expansion Valve
14WJ53X23295 GE Discharge Tube
15WJ53X22991 GE Liquid Service Valve
16WJ53X22992 GE Service Valve Vapor
17WJ53X23348 GE Suction Tube
18WJ35X25394 GE Outdoor Wire Harness
19WJ98X23285 GE Compressor
21WJ26X23009 GE Suction Sensor
22OUTDOOR MODULE
24OUTDOOR POWER CONTROL BOARD
25TERMINAL BLOCK
26WJ27X23011 GE Indoor Terminal Block
27WJ27X23006 GE Reactor
31TEMPERATURE SENSOR
32RADIATOR
34WJ35X22997 GE Coil Electronic Expansion Valve
35WJ01X23312 GE Flange Nut
