HSU24VHG(DB)-W ROOM AIR CONDITIONER

Products

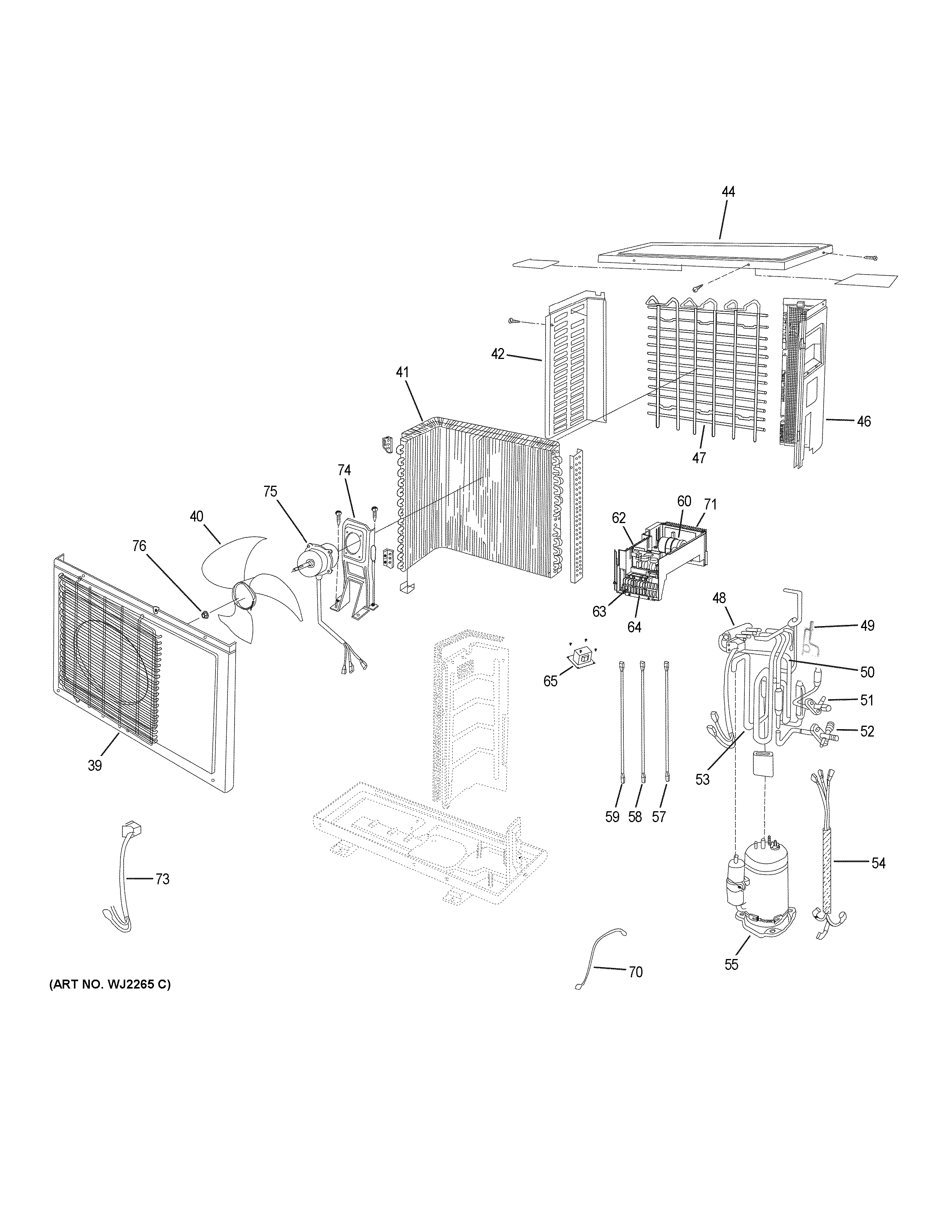

PositionProduct
39WJ76X24913 GE Casing
40FAN BLADE
41CONDENSER
42LEFT SIDE PANEL
44WJ71X23352 GE Top Cover
46RIGHT SIDE PANEL
47WJ71X23340 GE Grille Rear
48WJ53X22987 GE 4-Way Valve Assembly
49WJ53X22996 GE Electronic Expansion Valve
50DISCHARGE TUBE
512-WAY VALVE
523-WAY VALVE
53SUCTION TUBE
54WJ35X25394 GE Outdoor Wire Harness
55COMPRESSOR
57WJ26X23286 GE Compressor Temperature Sensor
58WJ26X23334 GE Sensor Pipe
59WJ26X23278 GE Ambient Temperature Sensor
60WJ26X23336 GE Power Module Board
62WJ26X23328 GE Outdoor Power Control Board
63TERMINAL BLOCK
64WJ27X23011 GE Indoor Terminal Block
65WJ27X23006 GE Reactor
70WJ26X23346 GE Temperature Suction Sensor
71RADIATOR
73WJ35X23024 GE Coi Electronic Expansion Valve
74WJ65X23309 GE Bracket Fan Motor
75WJ94X23718 GE Outdoor Fan Motor
76WJ01X22974 GE Flange Nut
