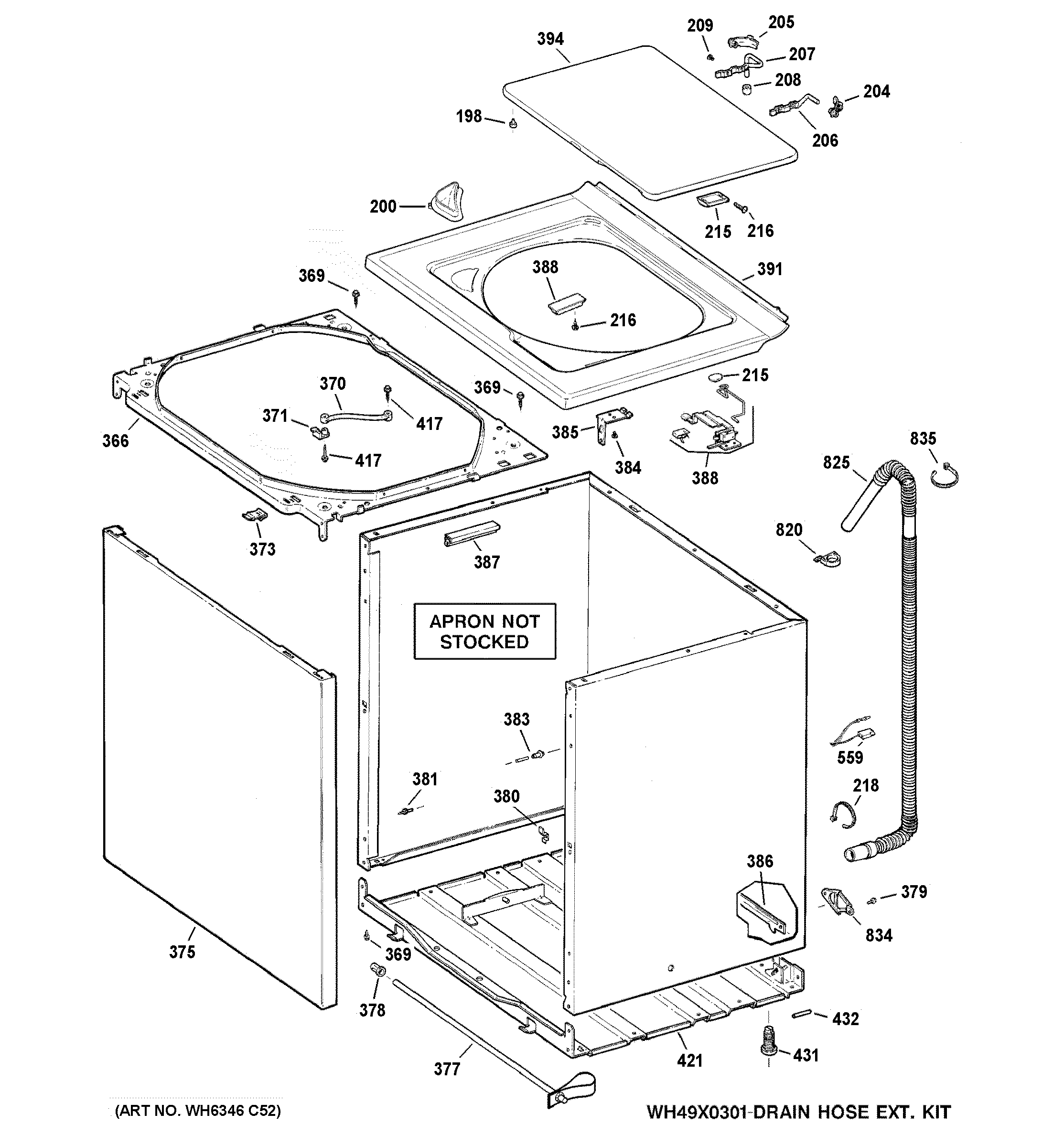

HSWP1000M4WW CABINET, COVER & FRONT PANEL

HSWP1000M4WW CABINET, COVER & FRONT PANEL

Written by

in

HSWP1000M4WW CABINET, COVER & FRONT PANEL

Products

PositionProduct
198WH1X2722 GE Lid Bumper
200WH01X10057 GE Blender Funnel
204WH1X2741 GE BSHNG Hinge
205WH01X10025 GE Hinge Bushing
206WH1X2740 GE Hinge Wire Frame
207GEN WH01X2743
208GEN WH01X2742
209WH2X1211 GE Screw
215WH12X10276 GE Washer Door Magnet
216WH02X24634 GE Lid Hinge Screw 6-32 MCH F
218WH01X10704 GE Wire Tie
366WH46X10270 GE Rod Support Weld Assembly
369WH2X1217 GE Screw Assembly
370WH1X2727 GE Washer Tub Support Strap
371WH1X2726 GE Retaining Strap
373WH02X10279 GE Washer Locking Clip
375WH46X10281 GE Front Panel Assembly
377SHIPPING BAR ASM
378WH1X2745 GE Plug Button
379SCREW 8-15 A 3/4 SP HXW
380GEN WH02X1207
381WH2X1190 GE Ground Stud
383WH2X1189 GE Alignment Pin
384WH01X10423 GE Screw 6-20 B TRT 3/8 S
385WH01X10422 GE Cover Clip
386WH46X10094 GE Self-Leveling Bar
387WH41X10036 GE Conduit Preset
388WH12X10334 GE Washer Lid Switch Assembly
391COVER ASM FINISHED
394WH44X20021 GE Service Lid Assembly Finished
417GEN WH02X0694
421BASE ASM
431WH2X1187 GE Leveling Assembly
432GEN WH02X1188
559GEN WH12X0538
820WH1X2725 GE Antenna Clip
825WH41X10096 GE Washer Drain Hose
834WH16X513 GE Washer Drain Hose Clip
835WH1X2594 GE Tie Strap
