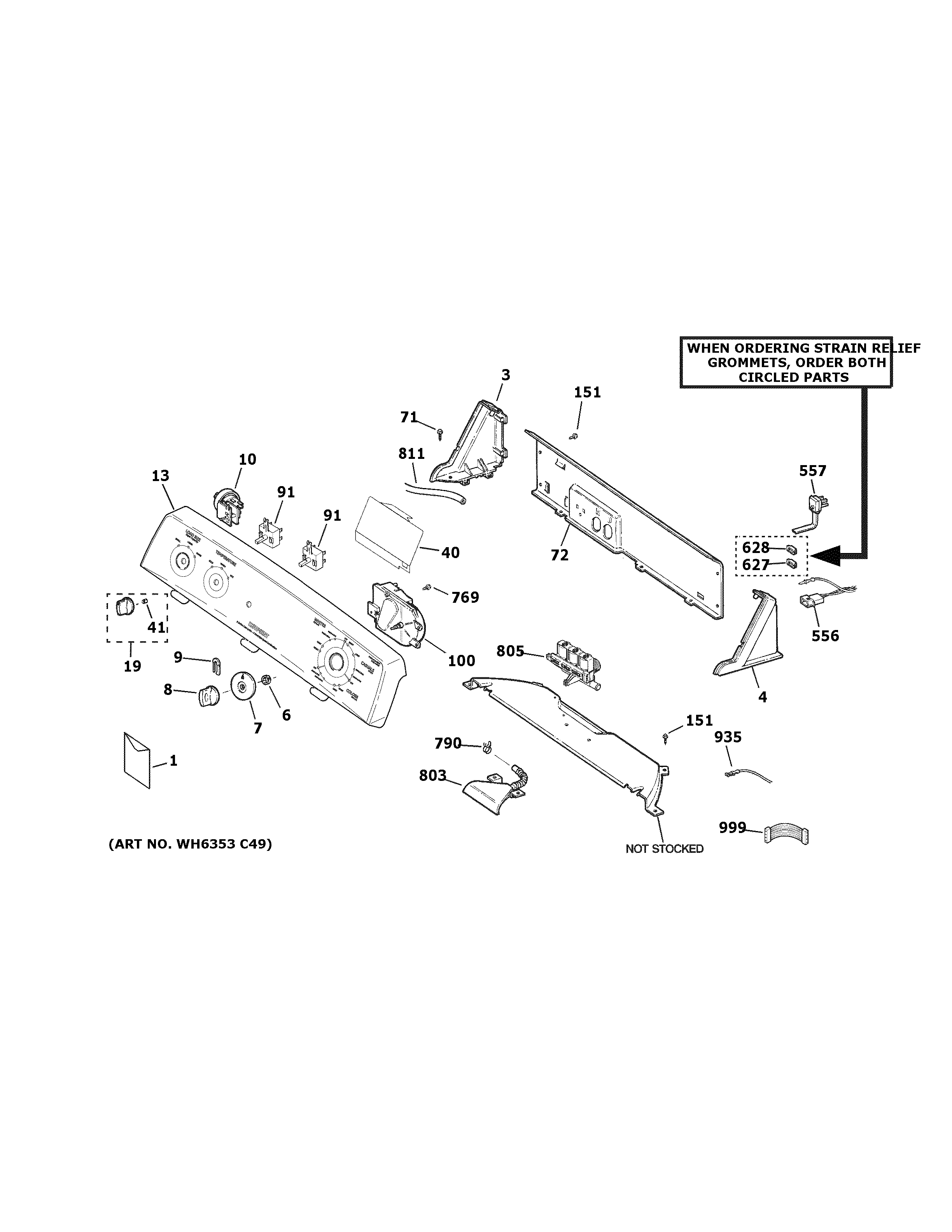

HSWP1000M4WW CONTROLS & BACKSPLASH

HSWP1000M4WW CONTROLS & BACKSPLASH

Written by

in

HSWP1000M4WW CONTROLS & BACKSPLASH

Products

PositionProduct
1PM INSTRUCTION INSTALL
1PM MINI MANUAL
1PM OWNERS MANUAL
3WH42X10679 GE White Left Hand Endcap
4WH42X10678 GE End Cap Right Hand White
6WH02X10093 GE Washer Compression Ring
7WH11X10047 GE Washer Timer Dial
8WH01X10314 GE Control Knob Assembly
9WH1X2117 GE Timer Knob Spring Clip
10WH12X22696 GE Washer Pressure Switch
13BACKSPLASH ASM
19KNOB & CLIP ASM
40WH02X10354 GE Shield Timer
41GEN WH01X10106
71WH2X1205 GE Screw 8-18
72BACK PANEL
91WH12X10498 GE Washer Rotary Switch
100WASHER TIMER
151WH02X10126 GE Screw 8-18 B 1HW 1/2 SN
556GEN WH12X0497
557CORD POWER ASM
627GEN WH12X10208
628STRAIN RELIEF
769WR01X10619 GE Refrigerator Screw
790WH1X2036 GE UNIX Clamp
803HOSE & WATER INLET
805TRIPLE SOL WATER VALVE
811WH41X365 GE Washer Water Level Pressure Switch HOSE
935GEN WD01X1434
999HARNESS WASHER
