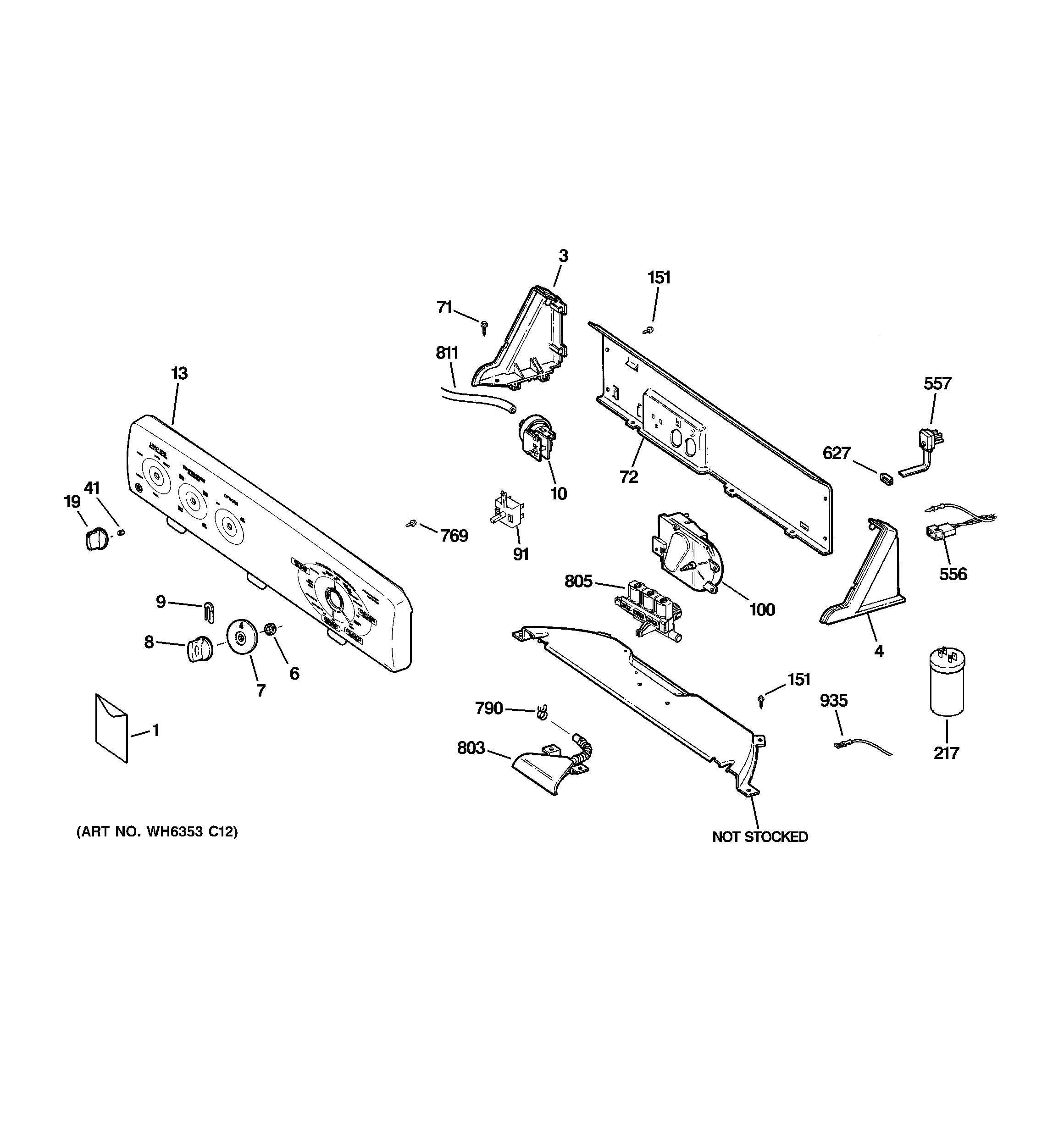

HTAP1000M0WW CONTROLS & BACKSPLASH

HTAP1000M0WW CONTROLS & BACKSPLASH

Written by

in

HTAP1000M0WW CONTROLS & BACKSPLASH

Products

PositionProduct
1GEN 31-15441
1GEN 49-90397
1GEN 31-16639
3WH42X10679 GE White Left Hand Endcap
4WH42X10678 GE End Cap Right Hand White
6WH02X10093 GE Washer Compression Ring
7WH11X10047 GE Washer Timer Dial
8WH01X10314 GE Control Knob Assembly
9WH1X2117 GE Timer Knob Spring Clip
10WH12X10476 GE Washer Water Level Pressure Switch
13GEN WH42X10883
19KNOB & CLIP ASM
41GEN WH01X10106
71WH2X1205 GE Screw 8-18
72GEN WH46X10146
91WH12X10498 GE Washer Rotary Switch
100WH12X10478 GE Washer Timer Control Assembly
151WH02X10126 GE Screw 8-18 B 1HW 1/2 SN
217WH12X10462 GE Washer Capacitor
556GEN WH12X0497
557GEN WH19X10068
627GEN WH12X10208
769WR01X10196 GE Refrigerator Screw 8-18 HID02
790WH1X2036 GE UNIX Clamp
803HOSE & WATER INLET
805WH13X23974 GE Washer Water Inlet Valve
811WH41X365 GE Washer Water Level Pressure Switch HOSE
935GEN WD01X1434
