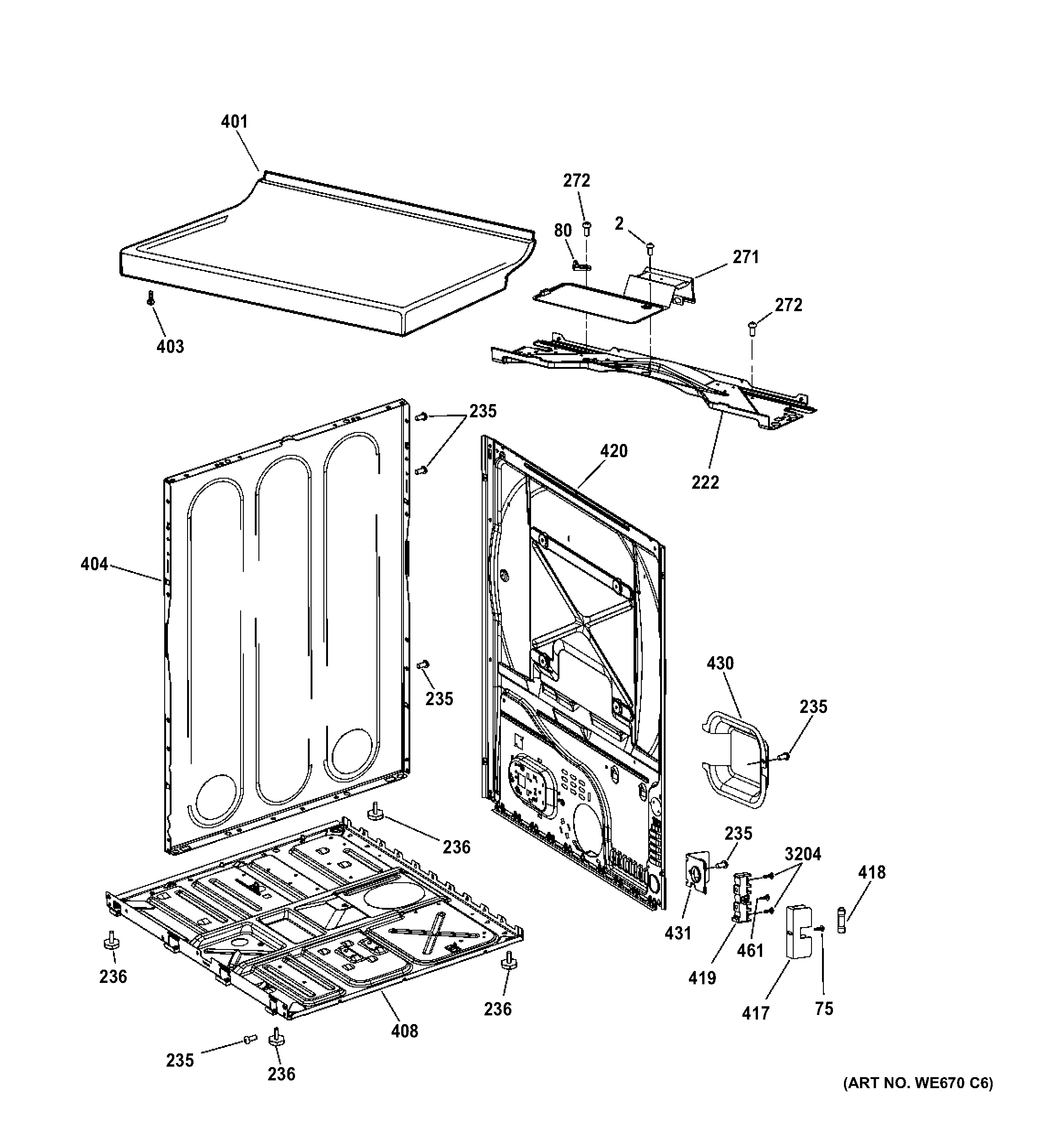

HTDX100ED2WW CABINET & TOP PANEL

HTDX100ED2WW CABINET & TOP PANEL

Written by

in

HTDX100ED2WW CABINET & TOP PANEL

Products

PositionProduct
2GEN WE02X20422
75WE2M173 GE Screw
80WE4M255 GE Washer Resistor
222GEN WE20M494
235WE2M307 GE Screw 10-16 X 1/2 AB
236WE01X29357 GE Washer Levelling Leg
271GEN WE1M892
272GEN WE2M308
401WE20X20417 GE Cover White
403WE2M160 GE Screw
404GEN WE20X20092
408GEN WE20M492
417WE1M1003 GE Fuse Holder
418WE1M1002 GE Washer Fuse
419WE4M525 GE Black Terminal and Ground Strap
420GEN WE20M538
430WE1M1102 GE Washer Cover Terminal Block
431WE01X20423 GE Strain Relief Bracket
461WZ5X158D GE Screw Package of 12
3204WZ4X241D GE Screw Package
