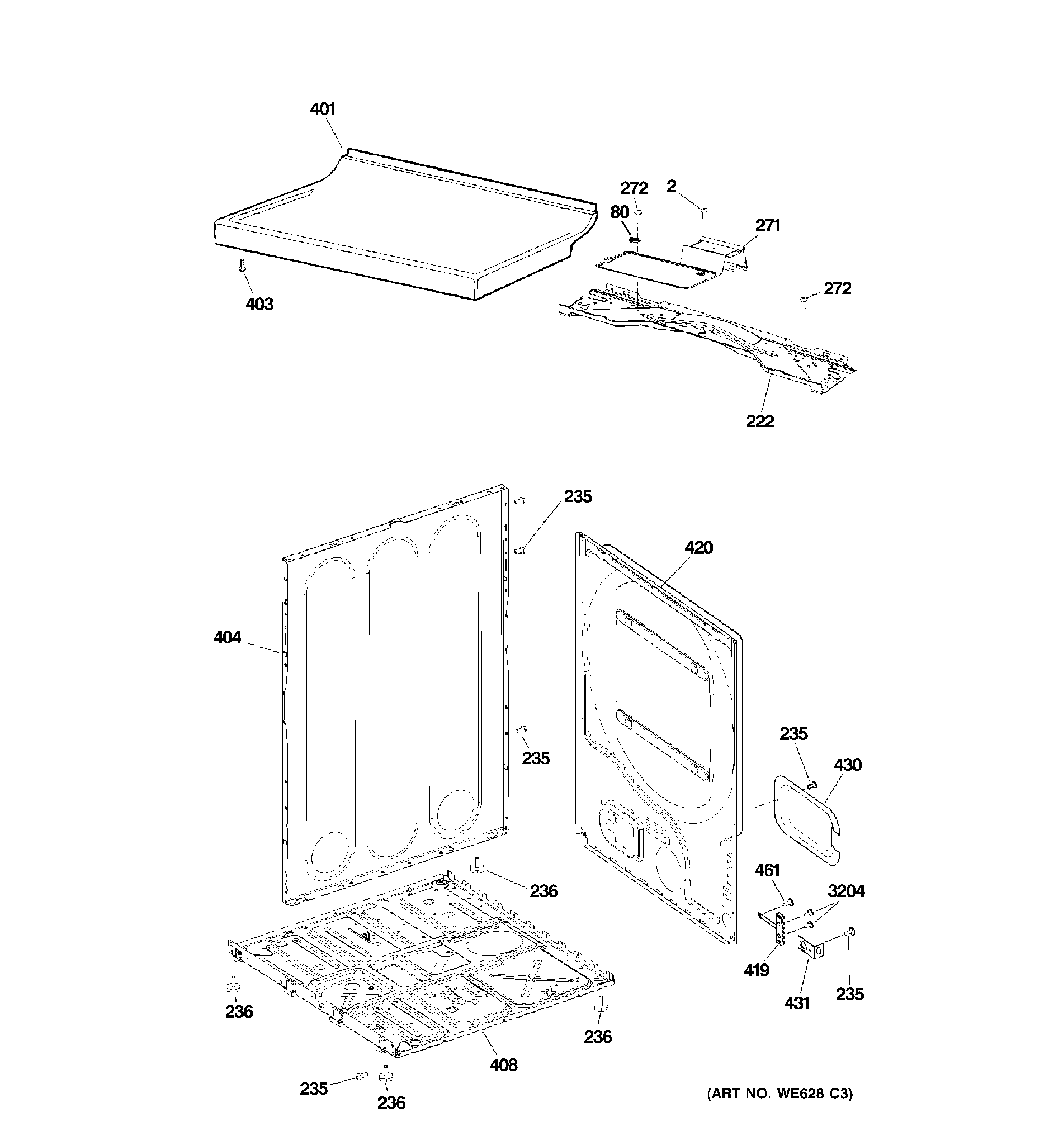

HTDX100EM3WW CABINET & TOP PANEL

HTDX100EM3WW CABINET & TOP PANEL

Written by

in

HTDX100EM3WW CABINET & TOP PANEL

Products

PositionProduct
2GEN WE02X20422
80WE4M255 GE Washer Resistor
222GEN WE20M494
235WE2M307 GE Screw 10-16 X 1/2 AB
236WE01X29357 GE Washer Levelling Leg
271GEN WE1M892
272GEN WE2M308
401WE20X20417 GE Cover White
403WE2M160 GE Screw
404GEN WE20M478
408GEN WE20M492
419WE4M325 GE Dryer Terminal Block and Ground Strap
420REAR PANEL (6 C. F.)
430WE1M1102 GE Washer Cover Terminal Block
431WE01X20423 GE Strain Relief Bracket
461WZ5X158D GE Screw Package of 12
3204WZ4X241D GE Screw Package
