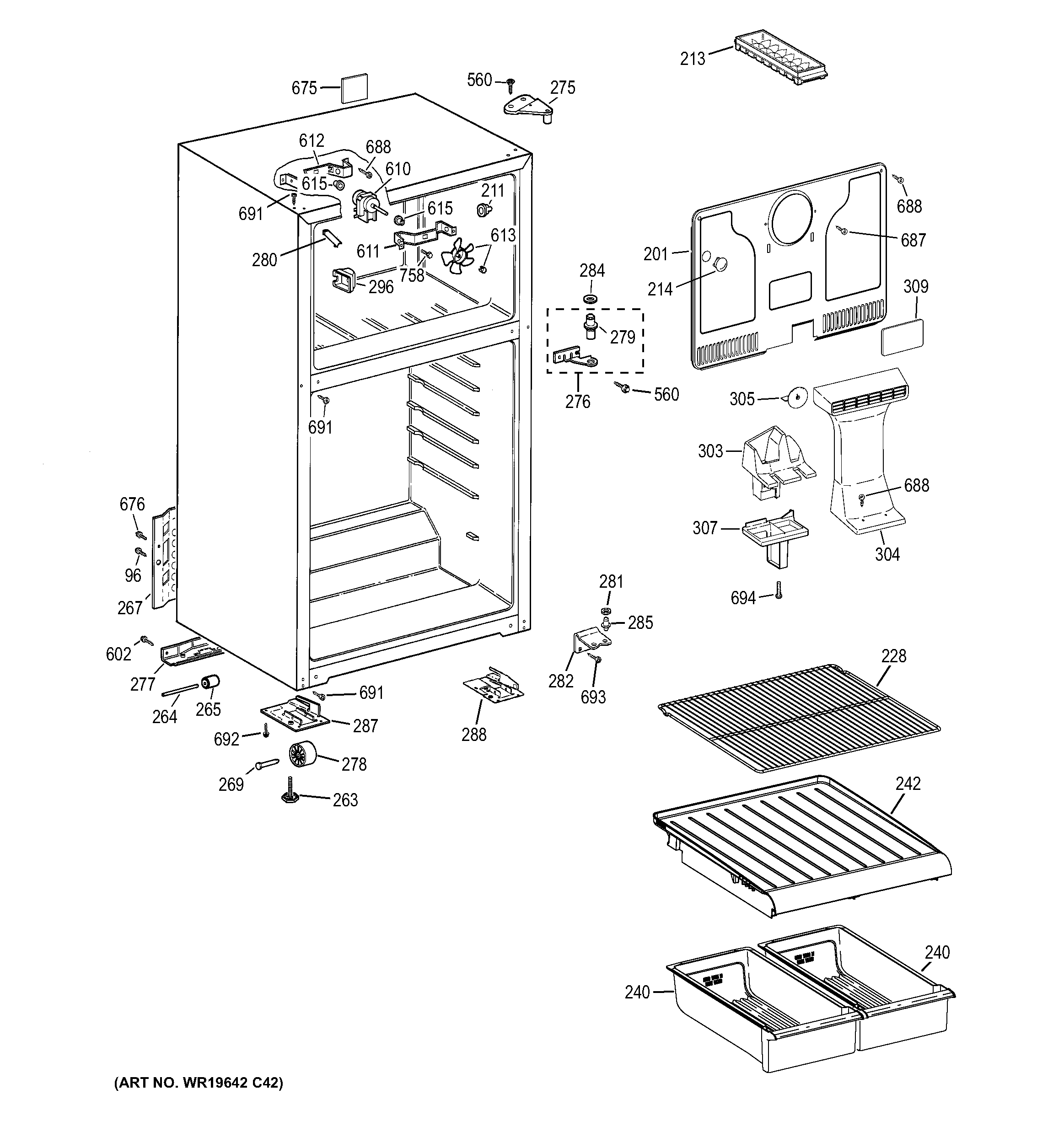

HTR16BBEMRBB CABINET

HTR16BBEMRBB CABINET

Written by

in

HTR16BBEMRBB CABINET

Products

PositionProduct
96GEN WR01X2009
201GEN WR17X11887
211WR2X8429 GE Refrigerator Support
213WR30X311 GE Refrigerator Ice Tray
214WR02X11760 GE Refrigerator Plug Button
228WR71X10378 GE Wire Rack Shelf
240WR32X10340 GE Refrigerator Lower Twin Vegetable Crisper Pan
242WR32X10398 GE Refrigerator Vegetable Crisper Pan Cover
263WR2X7877 GE Refrigerator Slider Adjuster
264GEN WR02X8214
265GEN WR02X8245
267GEN WR82X10112
269GEN WR02X12267
275GEN WR13X20866
276WR13X10991 GE Refrigerator Hinge Center and Pin Assembly
277GEN WR17X3188
278WHEEL MOBILITY FRT
279GEN WR02X8232
280WR02X10749 GE Refrigerator Black Corner Cap
281WASHER HINGE
282GEN WR13X10898
284WR1X1794 GE Refrigerator Door Spacer
285PIN HINGE BOTTOM
287GEN WR02X8709
288GEN WR02X8708
296WR02X11123 GE Refrigerator Cover IM REC
303WR02X20092 GE Refrigerator Foam Duct
304WR17X11891 GE Refrigerator Air Duct E04
305GEN WR02X12018
307WR02X11793 GE Refrigerator Air Diffuser
309GEN WR02X12020
560GEN WR01X1249
602WR01X10617 GE Refrigerator Screw 1/4-14 AB IHW 3/4 S
610WR60X21886 GE Refrigerator Motor Evaporator Fan Service
611GEN WR02X9314
612GEN WR02X9315
613BLADE EVAP FAN ASM
615GEN WR02X13132
675GASKET IM FILL
676WD2X5166 GE Dishwasher Screw
687WR01X10589 GE Refrigerator Screw 8-15 AB IHXW 1/2"
688WR01X10448 GE Refrigerator Screw 8-19 HI/LO TRP 1" S
691SCREW 12-24
692WR01X11074 GE Refrigerator Screw 8-15 AB IHXW 1/2 S
693WR01X10591 GE Refrigerator Screw 12-24 TT OVT20 .900
694GEN WR01X1792
758WR01X10860 GE Refrigerator Screw 8-32 TT HXW 3/8 S
