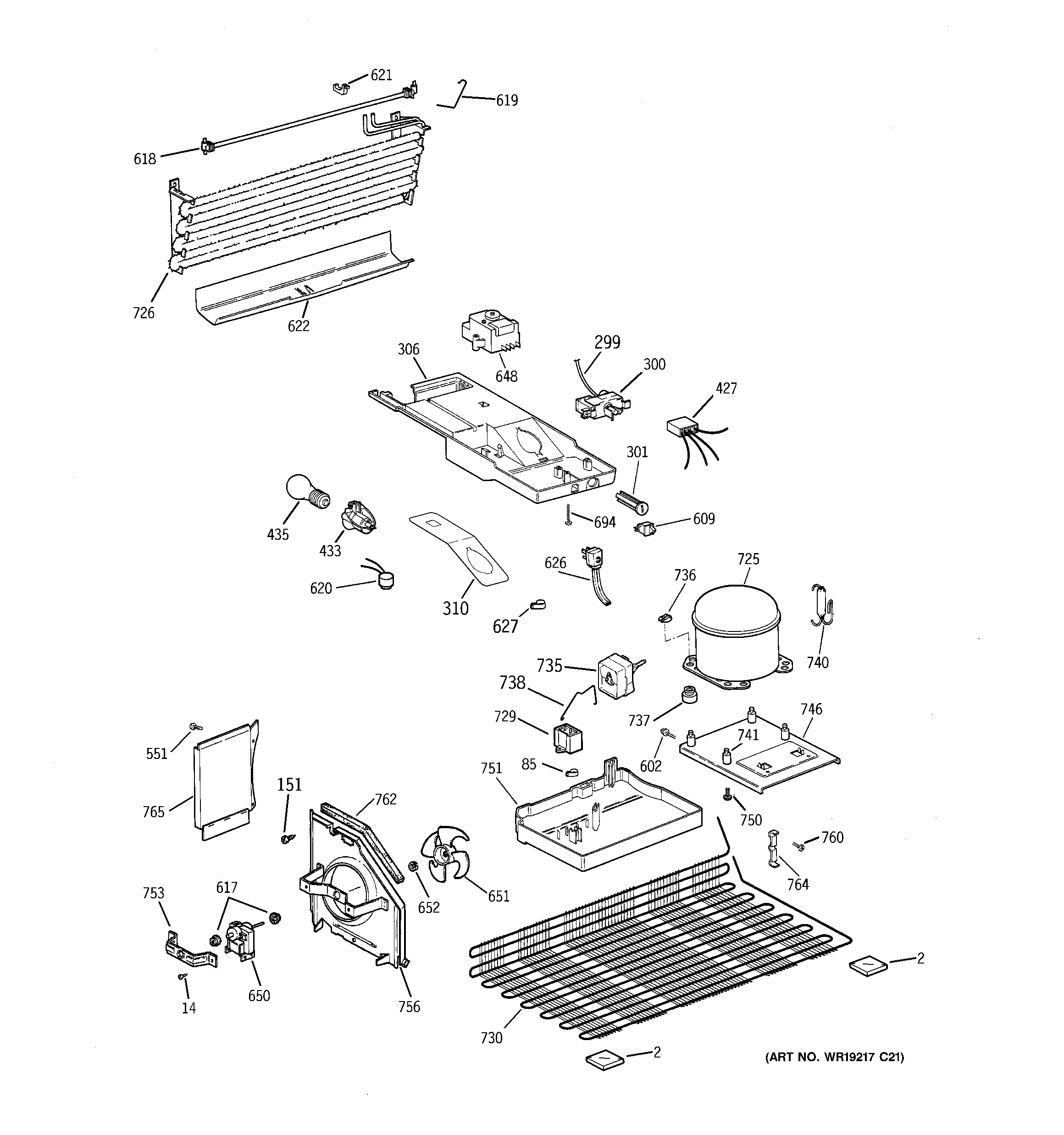

HTS17BBSALCC UNIT PARTS

HTS17BBSALCC UNIT PARTS

Written by

in

HTS17BBSALCC UNIT PARTS

Products

PositionProduct
2GEN WR02X10534
14SCREW FAN MTR/BRKT
85GEN WR01X2008
151WR01X10623 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
299WR2X8344 GE Refrigerator Vinyl Sleeve
300CONTROL TEMP
301WR02X13355 GE Control Knob
306WR17X12852 GE Refrigerator Control Housing
310GEN WR02X11597
427GEN WR23X0358
433WR02X10591 GE Light Socket and Terminal
435RANGE ONLY 40W 120V APPL BULB
551GEN WZ04X0244
602WR1X1591 GE Refrigerator Screw
609WR23X37285 GE Light Switch
617GROMMET EVAP
618WR51X10038 GE Refrigerator Defrost Heater Assembly
619GEN WR51X10072
620THERMOSTAT DEF
621WR02X10518 GE Refrigerator Element Holder
622GEN WR17X11657
626WR23X10300 GE Refrigerator Power Cord Assembly
627WR1X5278 GE Refrigerator Cable Clamp
648WR9X502 GE Refrigerator Defrost Timer
650MOTOR COND FAN
651WR60X10207 GE Refrigerator Fan Blade
652WR02X12149 GE Refrigerator Ring
694GEN WR01X1792
725WR87X20798 GE Refrigerator High Side Assembly
726WR87X28948 GE Refrigerator Evaporator
729WR55X24064 GE Refrigerator Run Capacitor
730GEN WR84X0221
735WR09X10107 GE Refrigerator PTC Overload 5SP
736WR2X8583 GE Refrigerator Clip
737GEN WR02X7238
738WR02X11999 GE Refrigerator Clip Retainer
740WR86X25269 GE Refrigerator R134 Dryer
741WR1X1779 GE Refrigerator Stud Mounting Compressor
746GEN WR17X10195
750WR1X1786 GE Refrigerator Screw
751GEN WR32X10455
753BRACKET EVAP FAN
756GEN WR17X11548
760WR01X10317 GE Refrigerator Screw 8-32 CA Hex Washer 1/2
762GEN WR14X0313
764WR2X9000 GE Refrigerator Condenser Clip
765GEN WR17X10463
