HTS18IBSXLBB FREEZER SECTION

HTS18IBSXLBB FREEZER SECTION

Written by

in

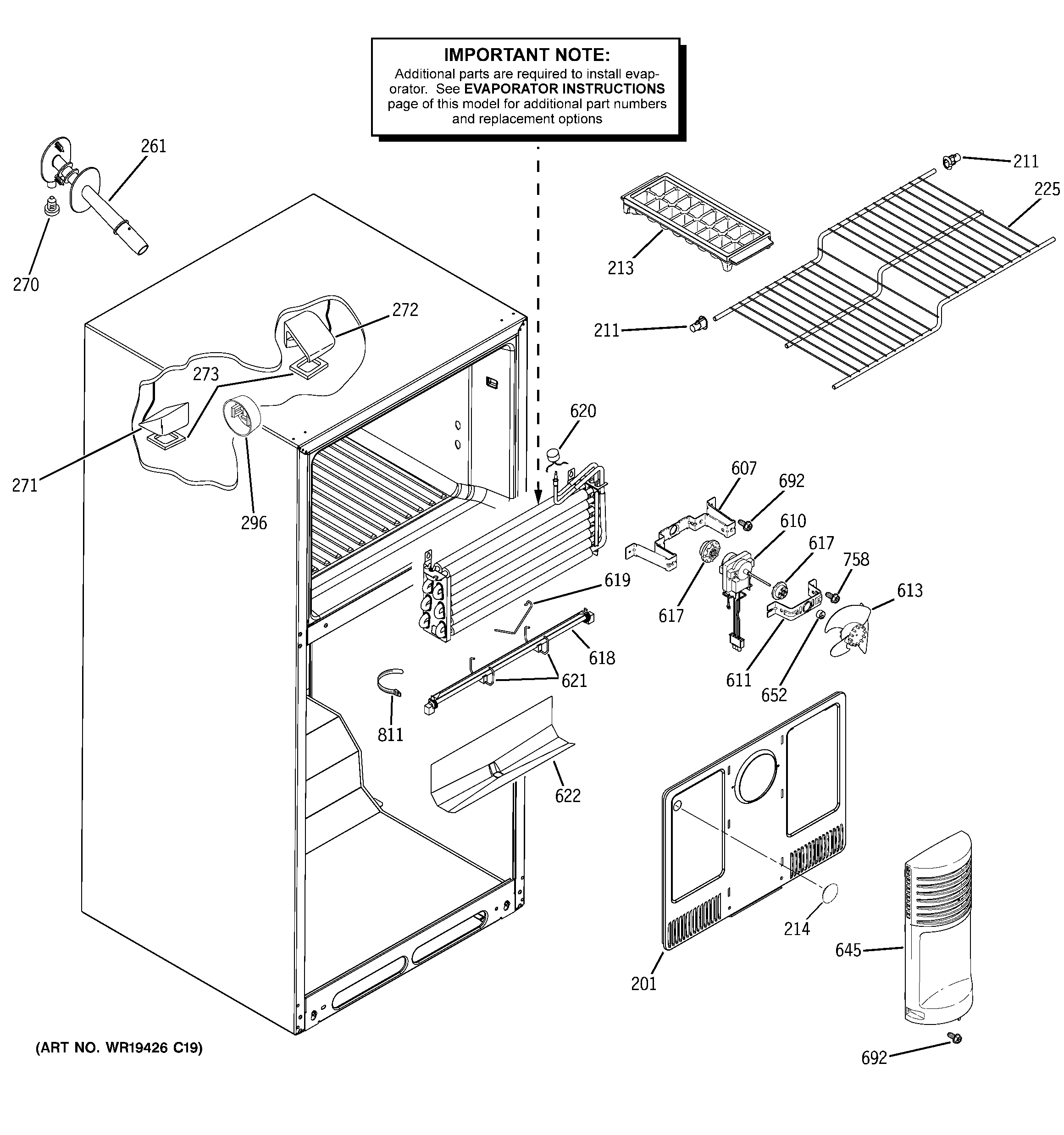

HTS18IBSXLBB FREEZER SECTION

Products

PositionProduct
201GEN WR17X11641
211GEN WR02X7973
213WR30X311 GE Refrigerator Ice Tray
214WR02X11760 GE Refrigerator Plug Button
225WR71X10702 GE Refrigerator Shelf Assembly
261GEN WR02X10804
270WR2X8247 GE Refrigerator Plug Button
271GEN WR02X10718
272GEN WR02X10719
273GEN WR14X10077
296WR02X11123 GE Refrigerator Cover IM REC
607GEN WR02X11582
610WR60X10172 GE Evaporator Fan Motor
611GEN WR02X11859
613BLADE EVAP FAN ASM
617GEN WR02X11942
618WR51X10038 GE Refrigerator Defrost Heater Assembly
619WR51X10052 GE Refrigerator Heater Condition
620WR50X10070 GE Refrigerator Defrost Thermostat
621WR02X10518 GE Refrigerator Element Holder
622WR17X26031 GE Refrigerator Trough Drain
645WR17X11521 GE Refrigerator Tower Bottom
652WR02X12149 GE Refrigerator Ring
692SCREW
758WR01X10860 GE Refrigerator Screw 8-32 TT HXW 3/8 S
811WR02X11607 GE Refrigerator Wire Tie
