HTW200ASK1WW CONTROLS & BACKSPLASH

HTW200ASK1WW CONTROLS & BACKSPLASH

Written by

in

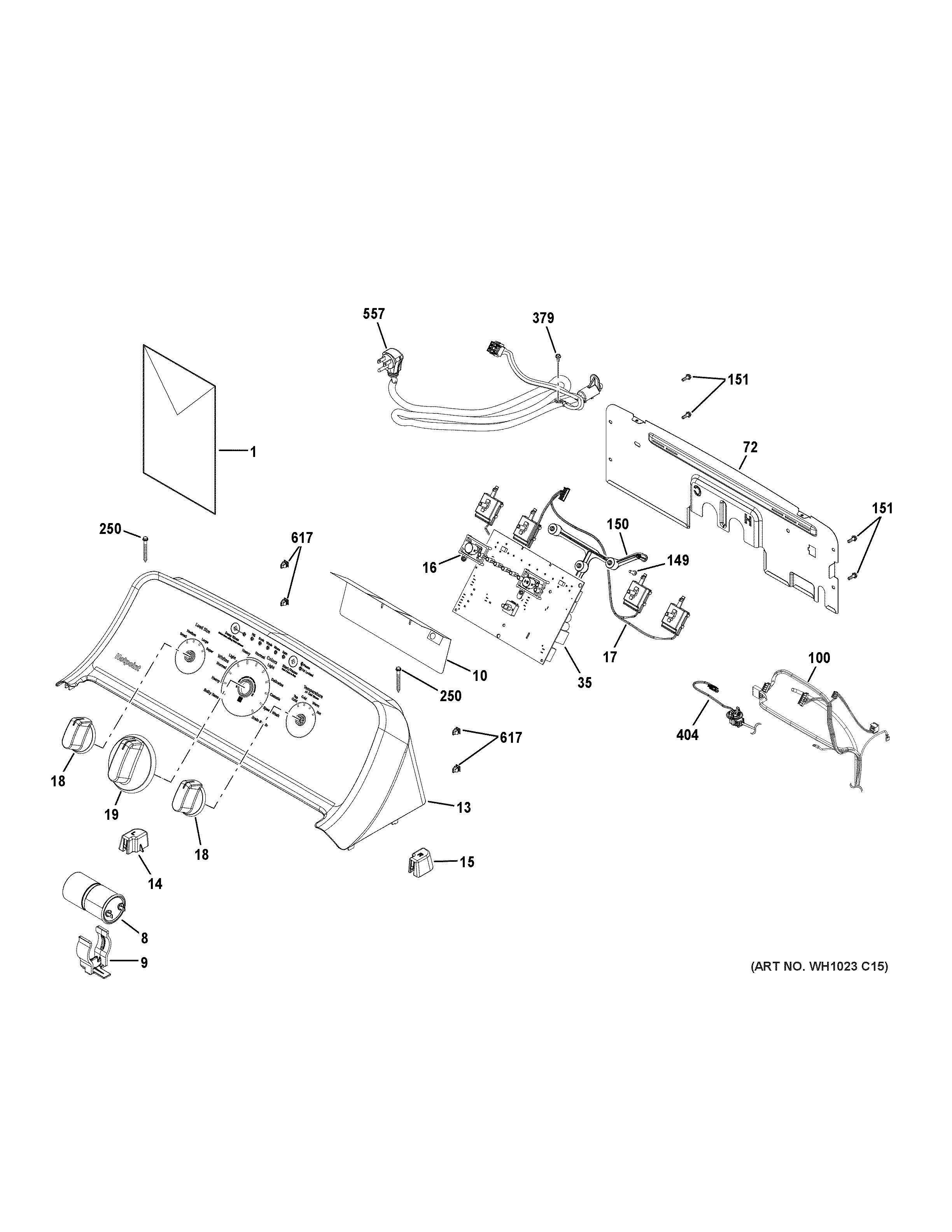

HTW200ASK1WW CONTROLS & BACKSPLASH

Products

PositionProduct
1PM MINI MANUAL AND WIRING
1PM QUICK REFERENCE GUIDE
1PM MANUAL USE AND CARE
8WH12X27614 GE Capacitor Bracket Kit
10WH01X24396 GE Control Board Shield
13WH42X25479 GE Control Panel Assembly
14WH16X24476 GE Washer Right Backsplash Support
15WH16X24477 GE Left Backsplash Support
16WH01X25477 GE Button Tree
17WH12X25478 GE Washing Machine Selector Switch Assembly
18KNOB ROTARY (HOTPOINT)
19WH01X25355 GE Main Knob
35MAIN CONTROL BOARD W/INSTRUCTI
72WH10X28194 GE Rear Control Panel
100WH19X25299 GE Washer Main Harness
149WR01X10196 GE Refrigerator Screw 8-18 HID02
150WH16X24375 GE Bracket Printed Circuit Board
151WH02X10126 GE Screw 8-18 B 1HW 1/2 SN
250WR01X10634 GE Refrigerator Screw 8-18 AB 13/4 S HXW
379WE02X10107 GE Screw 10-32 GX HXW 7/16 S
404WH19X24141 GE Washer Wire Harness Lid Lock
557WH08X28843 GE Power Cord
617WR2X8349 GE Screw Grommet
