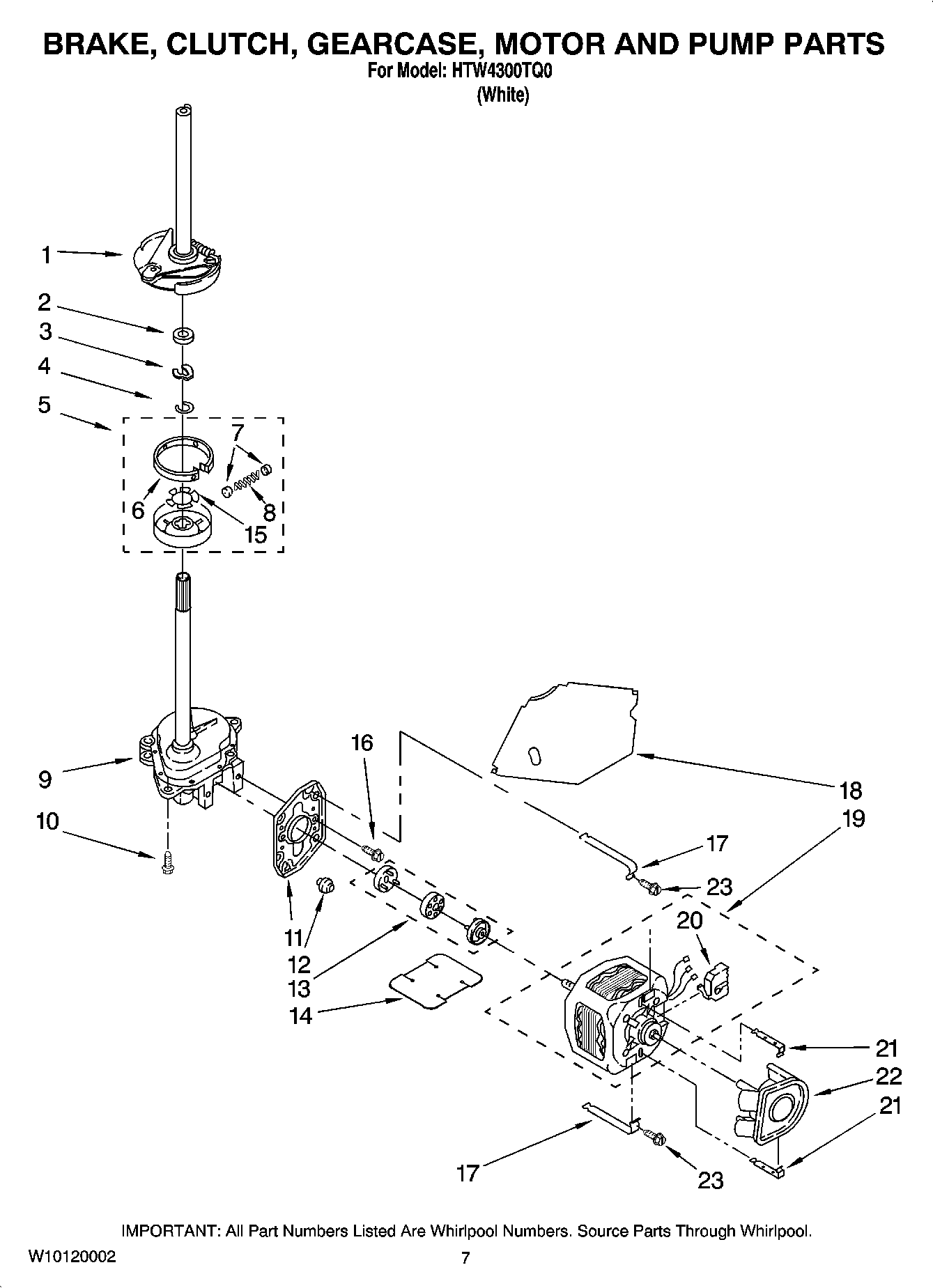

HTW4300TQ0 04 – BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

Products

Position	Product
1	MAY 388952
2	MAY 63292
3	MAY 62697
4	MAY 63283
5	MAY 3951311
6	Band And Lining (Includes Illus. 7 & 8)
7	MAY 62646
8	SPRING & DAMPER ASSEMBLY
9	Gearcase (Complete) (Refer To Page 12 For Further Breakdown)
10	Screw, 5/16-24 x 5/8
11	MAY 62611
12	MAY 62691
13	Coupling, Motor & Isolation
14	MAY 3946532
15	MAY 3355454
16	MAY 3400516
17	MAY 3349637
18	MAY 3362089
19	Motor, Main Drive
20	MAY 3952056
21	Retainer, Pump
22	MAY 3363394
23	MAY 3387485
