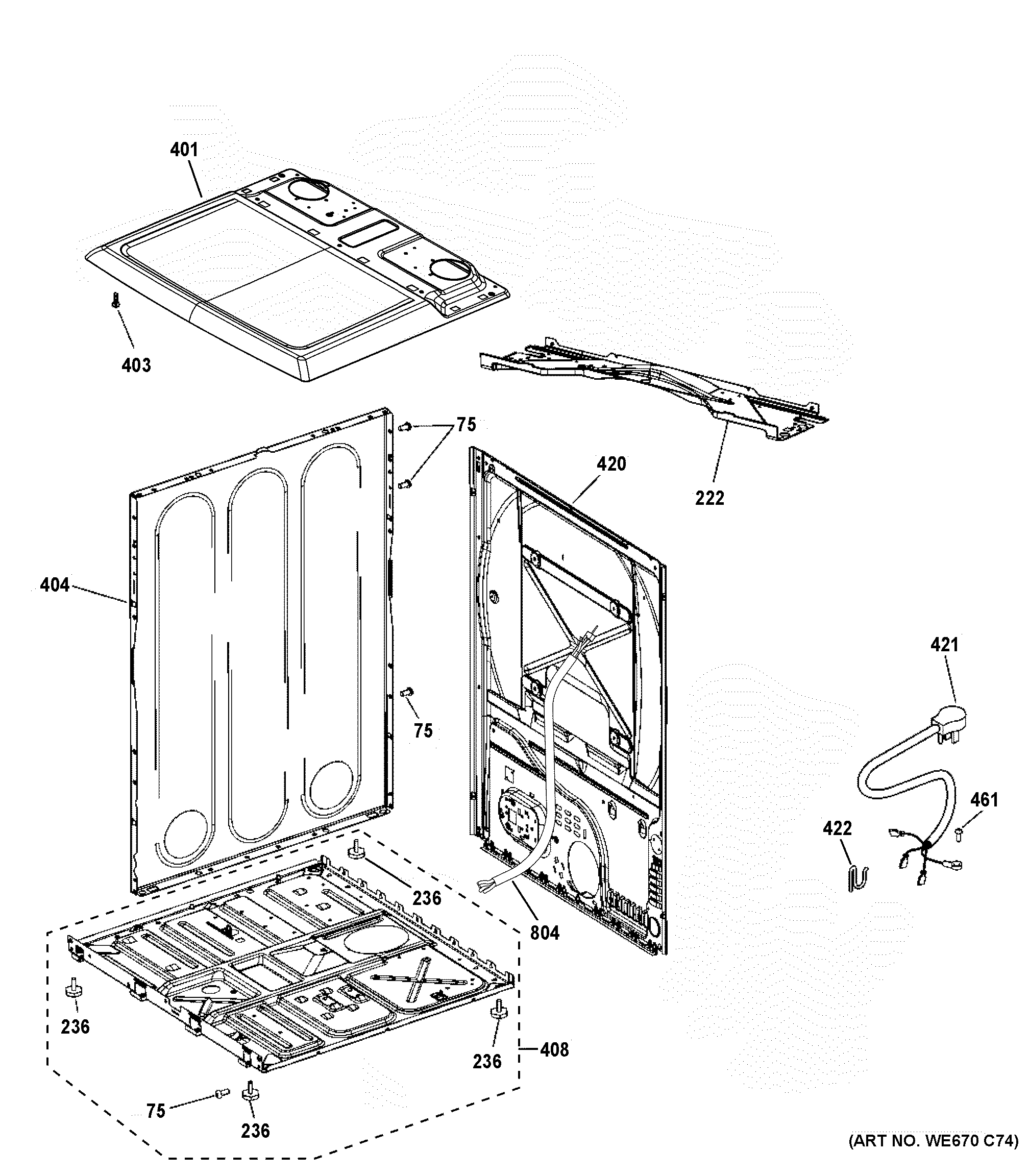

HTX21PASK0WW CABINET & TOP PANEL

HTX21PASK0WW CABINET & TOP PANEL

Written by

in

HTX21PASK0WW CABINET & TOP PANEL

Products

PositionProduct
75WE01X25535 GE Screw
222WE03X23883 GE Bottom Cover
236WE01X29357 GE Washer Levelling Leg
401WE03X24721 GE Top Low Depth Cover
403WE01X25318 GE Screw
404WE10X29822 GE Side Panel
408WE04X25159 GE Chassis and Leg Assembly
420WE02X25274 GE Rear Panel
421WE26M345 GE Gas Power Cord (120V)
422CLIP CORDSET
461WZ5X158D GE Screw Package of 12
804WE15X26199 GE Gas Harness Assembly
