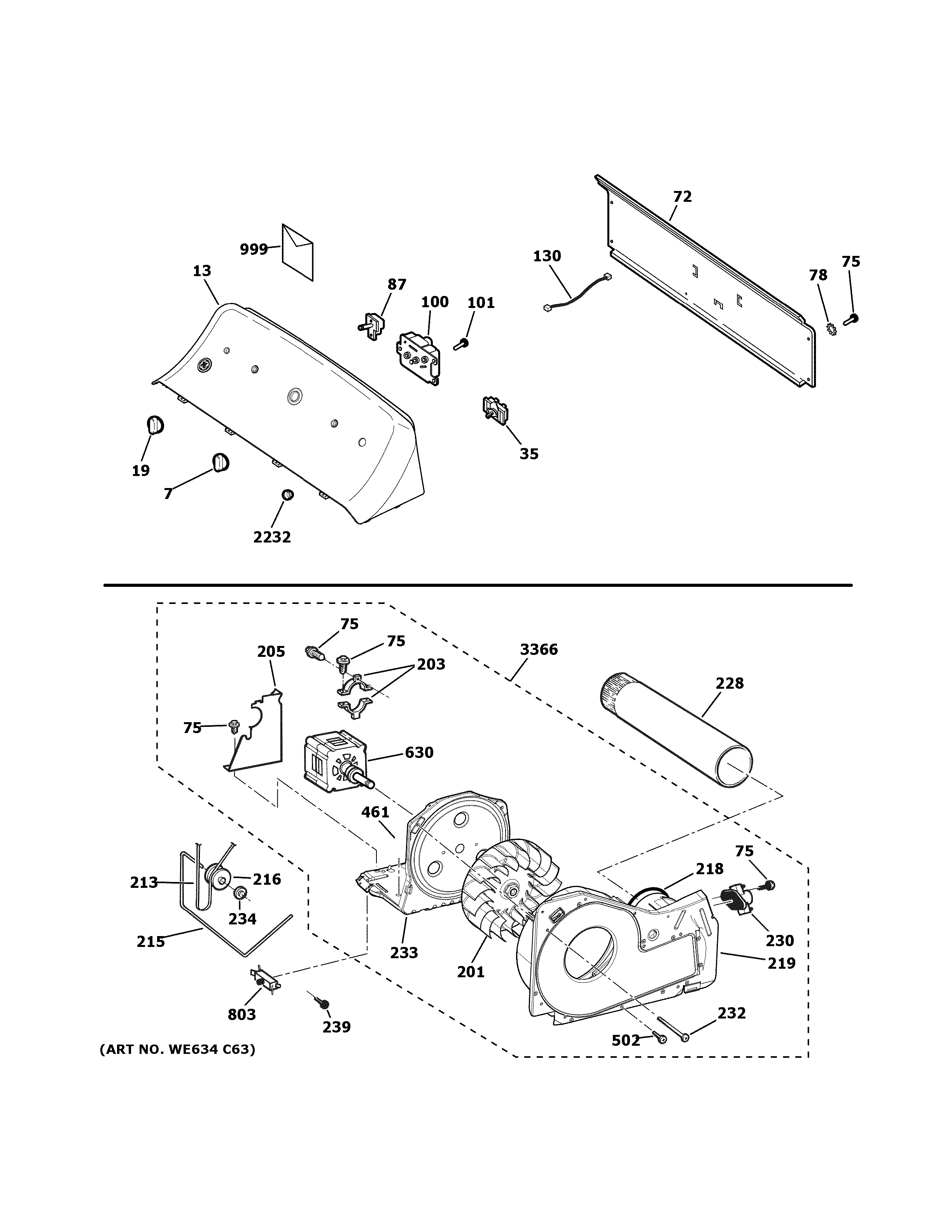

HTX24GASK0WW BACKSPLASH, BLOWER & MOTOR ASSEMBLY

HTX24GASK0WW BACKSPLASH, BLOWER & MOTOR ASSEMBLY

Written by

in

HTX24GASK0WW BACKSPLASH, BLOWER & MOTOR ASSEMBLY

Products

PositionProduct
7WE03X25285 GE Dryer Main Control Knob Assembly
13WE01X25585 GE Backsplash Assembly
19KNOB ROTARY (HOTPOINT)
35PUSH TO START SWITCH
72WE20X24556 GE Back Panel
75WE01X25535 GE Screw
78WE01X26154 GE Washer
87WE04X25588 GE Rotary Switch
100TIMER
101WE01X24720 GE Screw 30 x 20 IA PP
130WIRE GROUP ASM
201WH16X34317 GE Blower Wheel
203WE13X200 GE Motor Strap
205WE13M39 GE Motor Support
213WE03X29897 BELT DRIVE
215WE03X20434 GE Washer Idler Arm
216PULLEY
218WE09X27636 GE Exhaust Blower Gasket
219WE03X24536 GE Blower Assembly Housing
228WE01X23892 GE Exhaust Duct
230WE04X25195 GE Washer Dryer Cycle Thermostat
232WE2M202 GE Screw
233WE03X23858 GE Motor Plate
234GEN WE2M96?
239WR2X9260 GE Refrigerator Screw
461WZ5X158D GE Screw Package of 12
502WE2M174 GE Screw #10
630KIT MOTOR DRIVE AND PULLEY 27
803WD21X10261 GE Dishwasher Interlock Switch
999PM INSTALLATION INSTRUCTION USA ELEC Y G
999PM MINI MANUAL A1 Y A2 GAS
999USE & CARE GE USA A1, A2
2232BUTTON START ASM
3366WE17X24535 GE Motor and Blower Assembly
