HVM1540SP1SS MICROWAVE

HVM1540SP1SS MICROWAVE

Written by

in

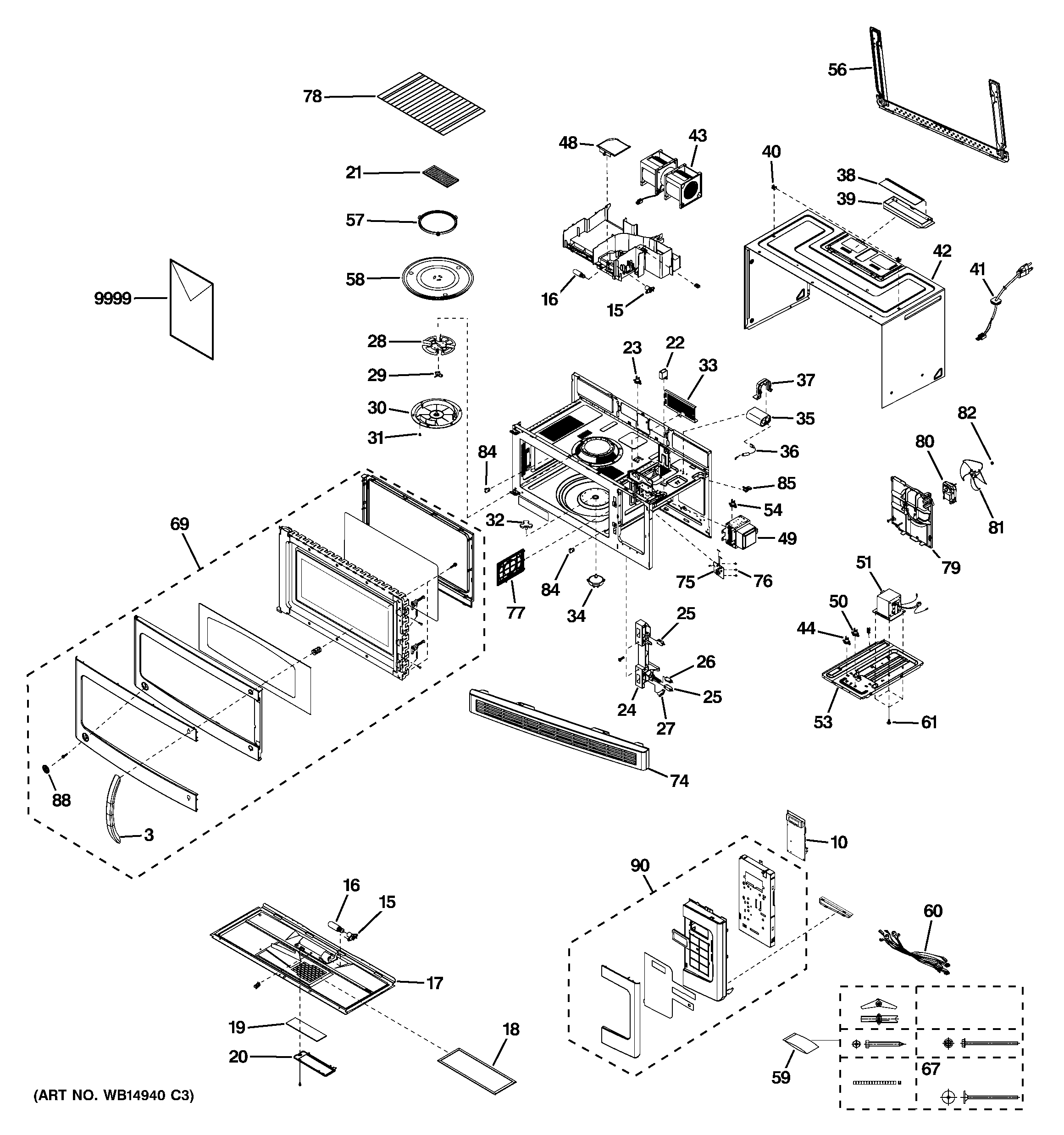

HVM1540SP1SS MICROWAVE

Products

Position	Product
3	GEN WB15X10224
3	GEN WB07X11050
3	WB15X10223 GE Oven Door Handle
10	GEN WB27X11078
15	WB08X10016 GE Range Oven Microwave Light Bulb Lamp Holder Socket
16	WB36X10003 GE Oven 40W 130V Light Bulb
17	WB56X10718 GE Oven Bottom Base
17	GEN WB56X10721
18	WB06X10596 GE Grease Filter Replacement
19	WB36X10071 GE Oven Microwave Glass Lamp Light Lens Cover
20	WB36X10216 GE Oven Glass Cover
20	WB36X10217 GE Oven Glass Cover
21	WB02X11124 GE Microwave Oven Charcoal Filter Vent Hood
22	WB27X10170 GE Oven Capacitor
23	WB27X11094 GE Oven TCO Assembly
24	MICROWAVE LATCH BODY
25	WB24X829 GE Oven Microwave Secondary Micro Switch
26	WB24X830 GE Oven Door Switch
27	LEVER-S/W
28	WB06X10812 GE Oven Stirring Blade
29	WB06X10813 GE Oven Stirrer Holder
30	WB06X10814 GE Oven Stirrer Cover
31	BUTTON-LOCK
32	COUPLER
33	WB27X32205 GE Oven Dorian Gray Overlay and Controller
34	TURNTABLE MOTOR
35	WB27X10240 GE Oven High Voltage Capacitor
36	WB27X10597 GE Oven Diode
37	WB06X10713 GE HVAC Bracket
38	GEN WB06X10715
39	WB06X10436 GE Oven Hood Damper Assembly
40	WB01X10071 GE Oven Holder Assembly
41	WB18X10442 GE Oven Power Cord Assembly
42	GEN WB56X10895
42	GEN WB56X10898
43	GEN WB26X10234
44	WB27X709 GE Oven Thermostat Vent
48	WB06X10817 GE Oven Lamp Cover
49	MAGNETRON ASM
50	WB21X10162 GE Microwave Thermal Cut-Off Bottom
51	WB20X10043 GE Oven High Voltage Transformer
53	GEN WB56X10896
54	TCO – MAGNETRON
56	WB56X10446 GE Oven Mounting Plate Bracket
57	WB06X10818 GE Oven Guide Roller
58	WB49X10224 GE Oven Cooking Tray
59	GEN WB01X10181
60	GEN WB18X10445
61	WB01X10084 GE Oven Washer Screw
67	WB01X10180 GE Oven Flat Bolt
69	GEN WB55X10952
69	GEN WB55X10951
69	GEN WB55X10948
69	WB55X10950 GE Oven Door Assembly
74	GEN WB07X11285
74	GRILLE ASM WW
74	GRILLE ASM BB
74	GEN WB07X11286
75	WB02X11200 GE Noise Filter Assembly
76	WB4X175 GE Oven Printed Circuit Board Support
77	WB06X10822 GE Oven Mounting Cover
78	GEN WB48X10070
79	WB34X21786 GE Motor Cover
80	GEN WB26X10265
81	GEN WB26X10090
82	WB09X10042 GE Oven Spring Blade
84	WB06X10521 GE Oven Rack Holder
85	WB06X10819 GE Wire Holder
88	GEN WB03X10306
90	WB56X10816 GE Oven Control Panel
90	GEN WB56X10817
90	GEN WB56X10819
90	GEN WB56X10821
9999	GEN 49-40615-1
9999	GEN 31-41032
9999	GEN 49-40614
