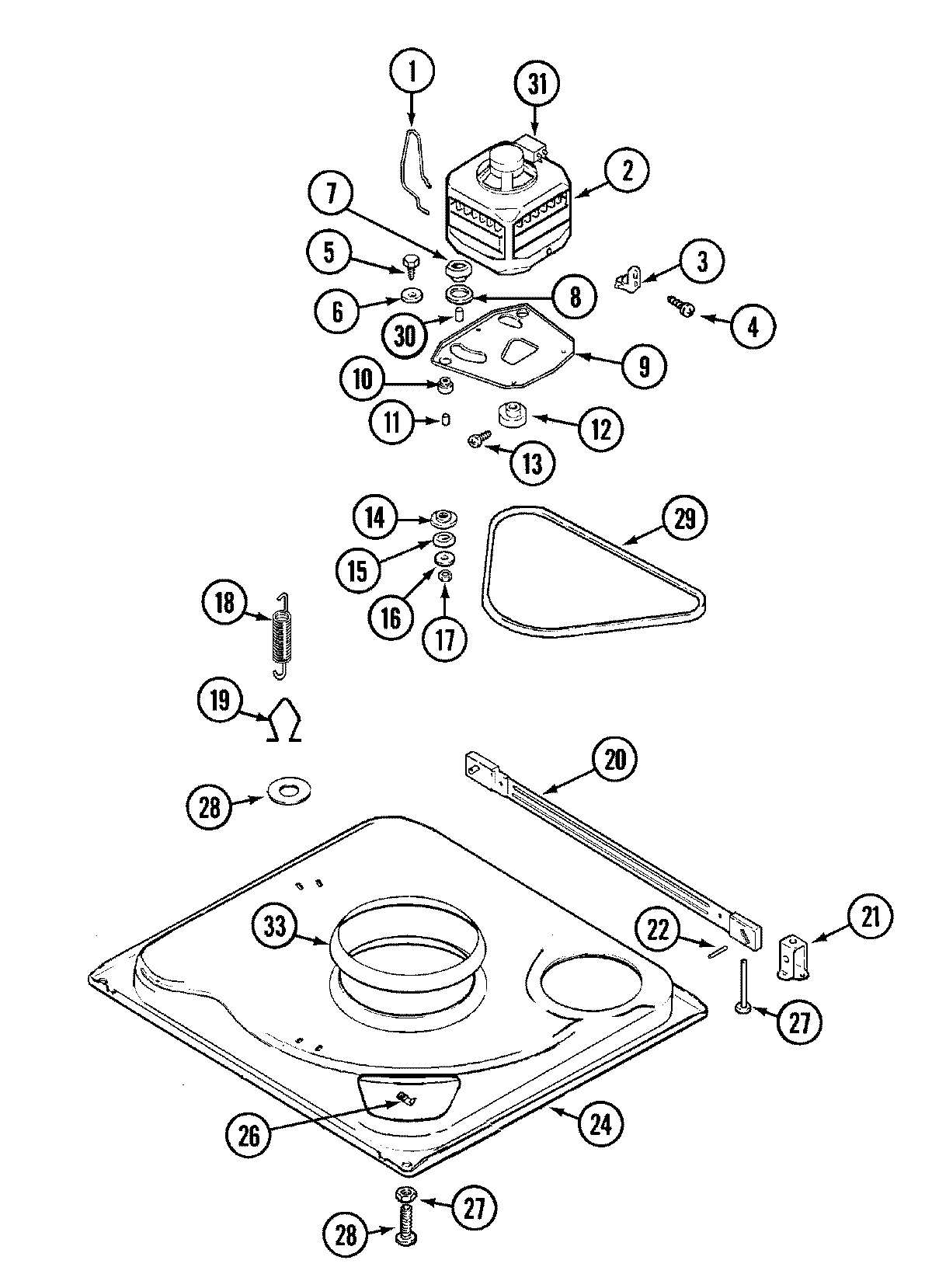

| 1 | MAY 35-0235 |
| 1 | WP22004376 Whirlpool Spring Motor |
| 2 | MAY 21001231 |
| 2 | MAY 35-3649 |
| 3 | MAY 21001109 |
| 3 | MAY 33-9945 |
| 4 | MAY 25-7418 |
| 4 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
| 5 | MAY 25-7833 |
| 6 | MAY 25-7834 |
| 7 | WP33-9946 Whirlpool Isolator |
| 8 | MAY 35-3570 |
| 9 | MAY 21001111 |
| 9 | MAY 35-2810 |
| 10 | WP35-3646 Whirlpool Isolator |
| 11 | MAY 25-7831 |
| 12 | WP21001108 Whirlpool Motor Pulley |
| 12 | W10143344 Whirlpool Pulley Assembly |
| 13 | MAY 25-7117 |
| 14 | MAY 33-9943 |
| 15 | WP33-9967 Whirlpool Washer Assembly |
| 16 | MAY 25-7047 |
| 17 | WPY707702 Whirlpool Locknut |
| 18 | MAY 21001165 |
| 18 | MAY 21001138 |
| 18 | MAY 35-3658 |
| 19 | WP21001166 Whirlpool Hook |
| 19 | MAY 35-2976 |
| 20 | MAY 35-2049 |
| 21 | MAY 35-2046 |
| 22 | MAY 35-2052 |
| 23 | WP489483 Whirlpool Screw |
| 23 | WP22004469 Whirlpool Leg Foot |
| 24 | MAY 21001169 |
| 24 | MAY 35-2984 |
| 25 | MAY 25-7838 |
| 26 | MAY 25-7915 |
| 27 | MAY 35-0772 |
| 27 | MAY 35-0837 |
| 28 | MAY Y25-7951 |
| 29 | MAY 35-2279 |
| 30 | MAY 25-7830 |
| 31 | MAY 33-9765 |
| 32 | MAY 35-2065 |
| 33 | WP21002026 Whirlpool Snubber Assembly |
