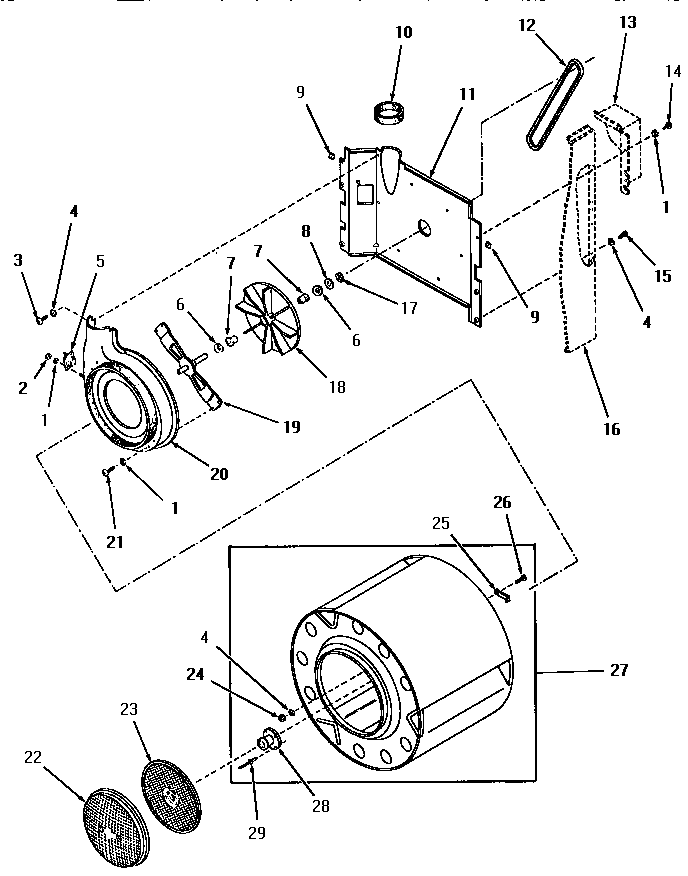

HZ1070 03 – FAN ASSY, DRUM AND LINT SCREEN

HZ1070 03 – FAN ASSY, DRUM AND LINT SCREEN

Written by

in

HZ1070 03 – FAN ASSY, DRUM AND LINT SCREEN

Products

PositionProduct
1MAY Y20278
2MAY M540064
3MAY M540007
4MAY 03815
5MAY M540095
6MAY M540088
7MAY M540089
8MAY M540092
9MAY 54038
10MAY M540141
11MAY M540091
12MAY M540094
14MAY M540004
15MAY M540011
16SEE NOTE GROUND WIRE, GREEN
17MAY 23748
18MAY M540090
19MAY M540087
20MAY M540230
21MAY M540212
22MAY M540101
23MAY M540196
24MAY 03673
25MAY M540098
26MAY 20267
27MAY M540159
28MAY M540166
29MAY M540117
