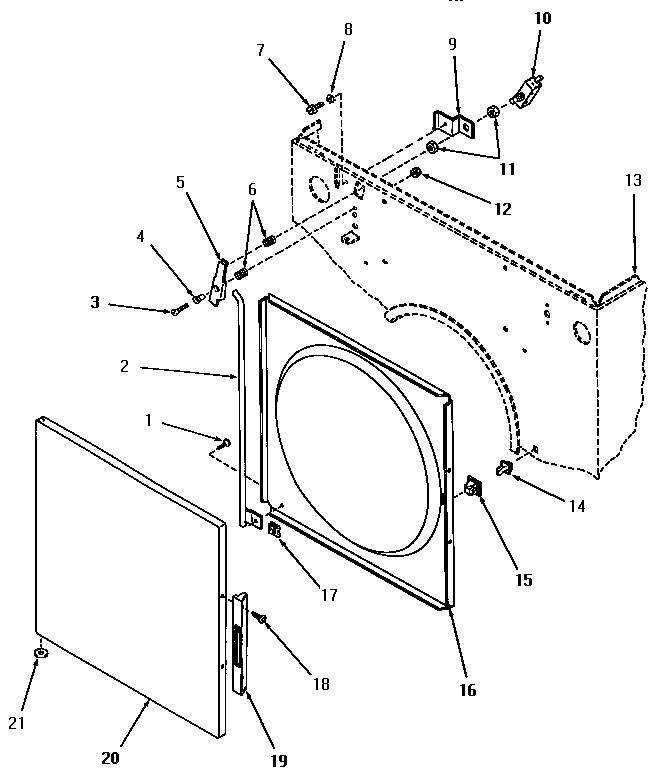

HZ1070 05 – LOADING DOOR AND DOOR SAFETY SWITCH
Written by
in
HZ1070 05 – LOADING DOOR AND DOOR SAFETY SWITCH
Products
Position
Product
2
MAY M540044
3
MAY M540122
4
MAY M540061
5
MAY M540062
6
MAY 53267
7
MAY 52150
8
MAY Y20278
9
MAY M540158
10
MAY 10484
11
MAY Y0052975
12
MAY 51236
13
SEE NOTE GROUND WIRE, GREEN
14
MAY 54661
15
MAY M540216
16
MAY M540048W
16
MAY M540048A
16
MAY M540048H
17
MAY M540009
18
MAY M540004
19
MAY M540047
20
MAY M540046A
20
MAY M540046H
20
MAY M540046W
21
MAY M540045
←
