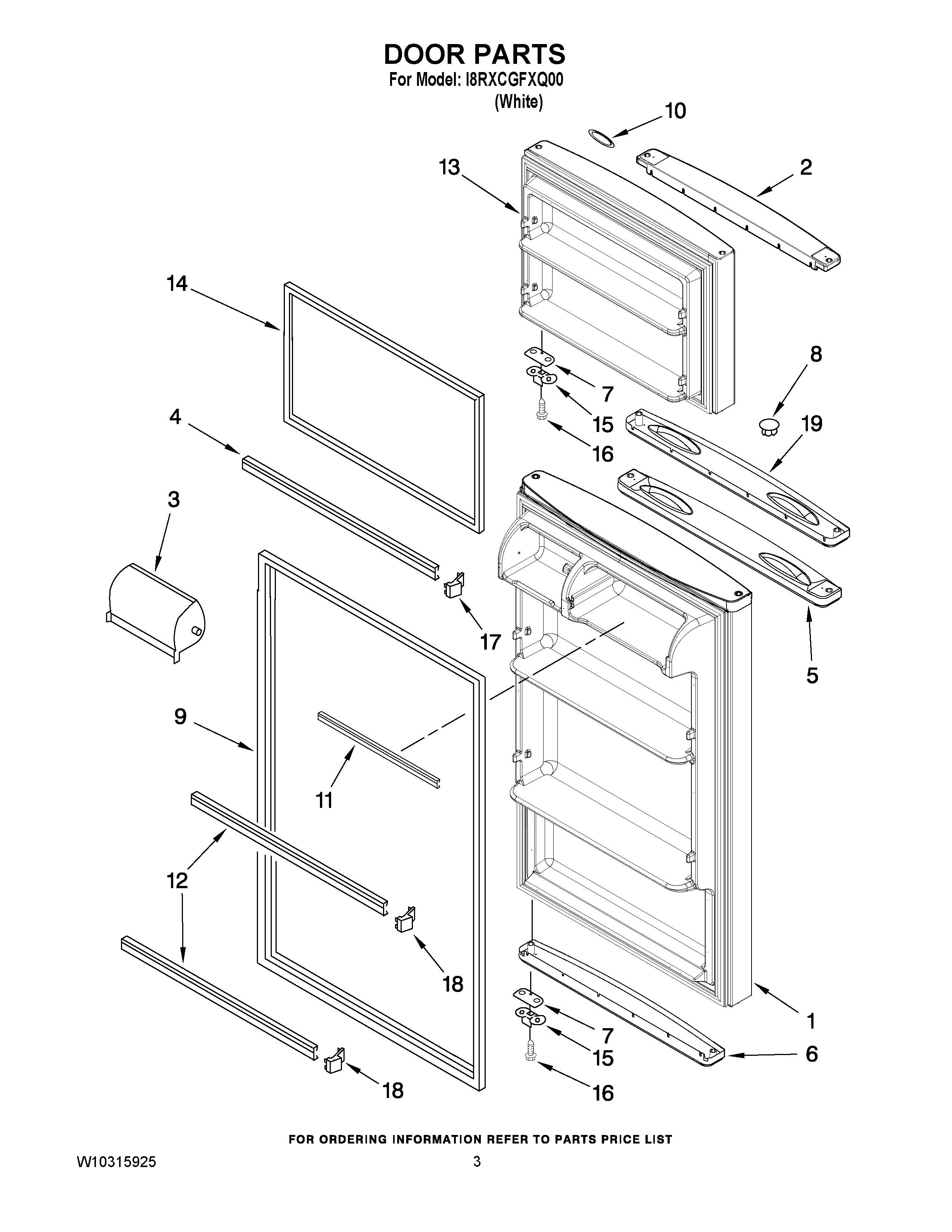

I8RXCGFXQ00 02 – DOOR PARTS

Products

Position	Product
1	REFRIGERATOR DOOR (INCLUDES ILLUS. 9 & MOLDED DOOR HANDLE (WHITE)
2	2265644W Whirlpool Refrigerator Door Trim
3	DOOR-COMP
4	WP2266727 Whirlpool Refrigerator Door Trim
5	2265645W Whirlpool Refrigerator Handle
6	ENDCAP, BOTTOM (WHITE)
7	WP2258681W Whirlpool Refrigerator Shim
8	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
9	WP2319264T Whirlpool Door Gasket
10	Nameplate
11	W11129820 Whirlpool Refrigerator Door Trim
12	WP2266738 Whirlpool Refrigerator Door Trim
13	FREEZER DOOR (INCLUDES ILLUS. 15 & MOLDED DOOR HANDLE) (WHITE)
14	WP2319263T Whirlpool Refrigerator FIP Gasket
15	W11745278 Whirlpool Bracket
16	SCREW
17	WP2156003 Whirlpool Refrigerator Door Shelf End Cap
18	ENDCAP
19	ENDCAP, BOTTOM (WHITE)
