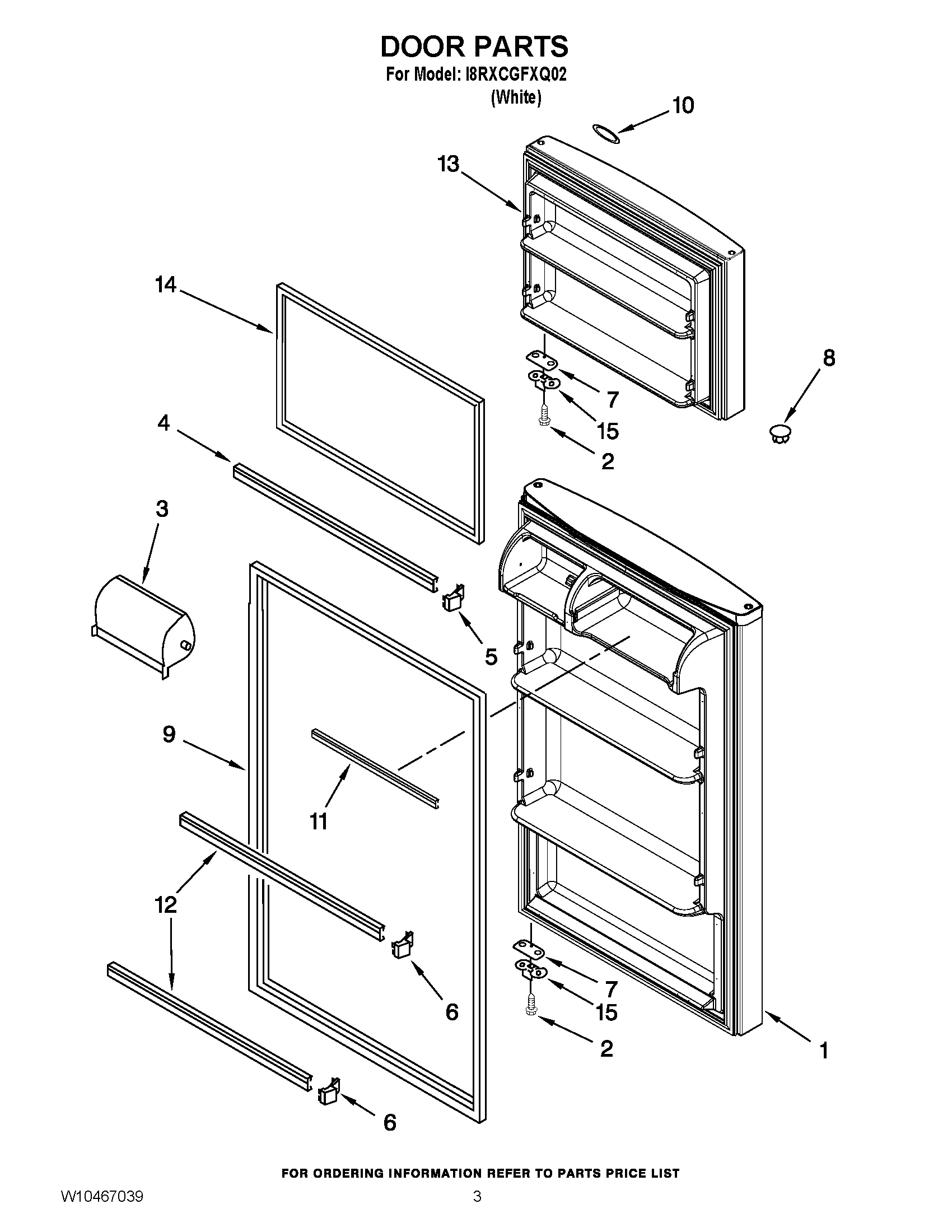

I8RXCGFXQ02 02 – DOOR PARTS

Products

PositionProduct
1REFRIGERATOR DOOR (INCLUDES ILLUS. 9 & MOLDED DOOR HANDLE (WHITE)
2SCREW
3DOOR-COMP
4WP2266727 Whirlpool Refrigerator Door Trim
5WP2156003 Whirlpool Refrigerator Door Shelf End Cap
6ENDCAP
7WP2258681W Whirlpool Refrigerator Shim
8WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
9WP2319264T Whirlpool Door Gasket
10Nameplate
11W11129820 Whirlpool Refrigerator Door Trim
12WP2266738 Whirlpool Refrigerator Door Trim
13FREEZER DOOR (INCLUDES ILLUS. 15 & MOLDED DOOR HANDLE) (WHITE)
14WP2319263T Whirlpool Refrigerator FIP Gasket
15W11745278 Whirlpool Bracket
