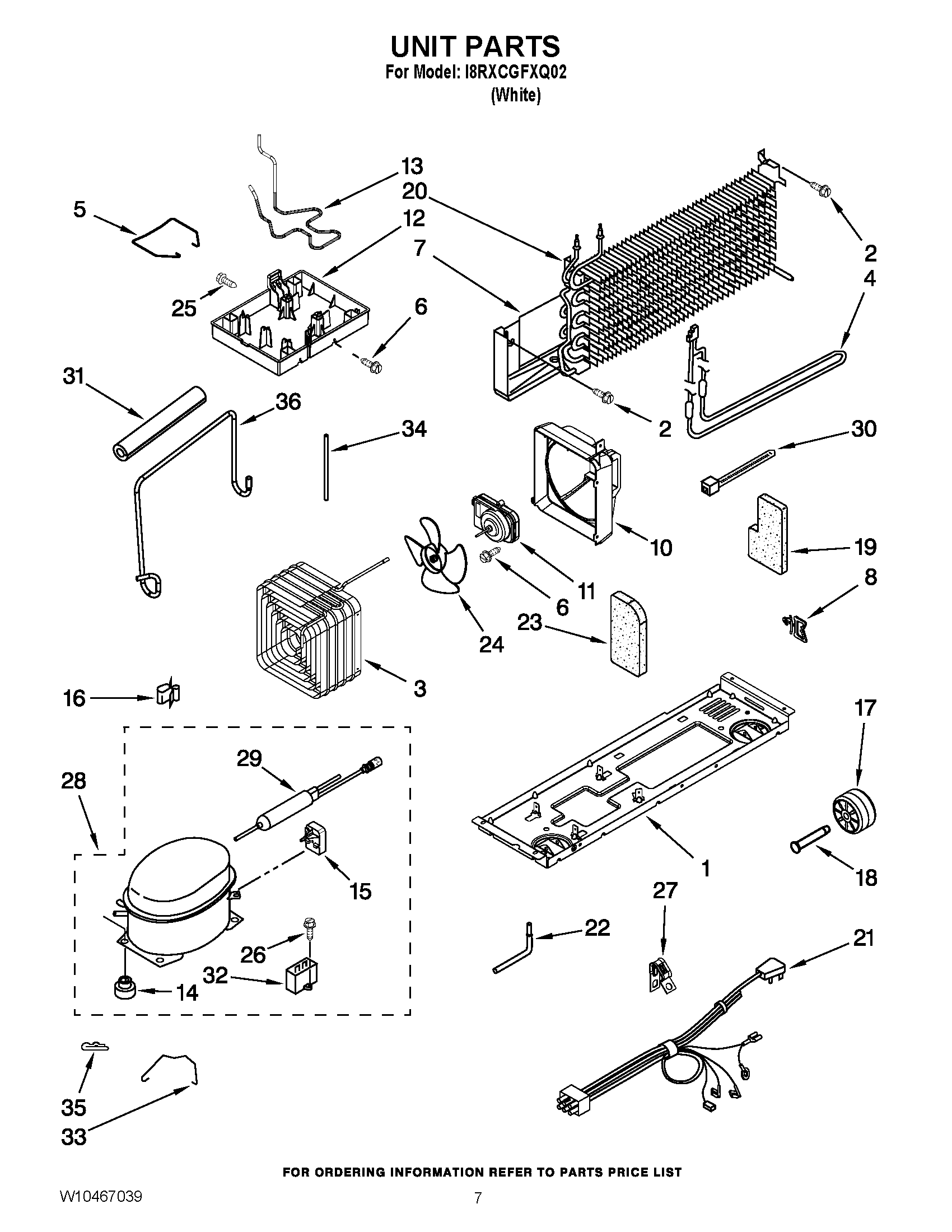

I8RXCGFXQ02 04 – UNIT PARTS

Products

Position	Product
NI	978026 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	CABINET (NOT A SERVICEABLE PART)
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
1	WPW10222450 Whirlpool Refrigerator Support
2	WP489442 Whirlpool Refrigerator Screw
3	WP2264004 Whirlpool Refrigerator Condenser
4	WP2263749 Whirlpool Defrost Heater Assembly
5	2264835 Whirlpool Clip
6	WPW10171469 Whirlpool Refrigerator Screw
7	Heat Shield
8	CLIP, HARNESS
10	W10358308 Whirlpool Refrigerator Air Baffle
11	W11578915 Whirlpool Condenser Motor
12	WP2263928 Whirlpool Refrigerator Evaporator Tray
13	WPW10401889 Whirlpool Refrigerator Tube
14	WPW10169124 Whirlpool Refrigerator Grommet
15	WPW10399283 Whirlpool Refrigerator Start Device
16	W10812038 Whirlpool Refrigerator Clip
17	WPW10475495 Whirlpool Roller Assembly
18	WP2264756 Whirlpool Refrigerator Rivet
19	8201619 Whirlpool Refrigerator Support Assembly
20	WP2263920 Whirlpool Refrigerator Evaporator
21	WPW10151677 Whirlpool Refrigerator Wire Harness
22	W11676464 Whirlpool Tube
24	2264129 Whirlpool Refrigerator Fan Blade
25	WP489489 Whirlpool Screw
26	SCREW
27	549193 Whirlpool Refrigerator Power Clamp
28	W10822653 Whirlpool Refrigerator Compressor
29	W10843121 Whirlpool Refrigerator Tube
29	WPW10143759 Whirlpool Dryer Filter
30	WPW10339879 Whirlpool Wire Tie
31	2264838 Whirlpool Refrigerator Sleeve
32	WP65889-4 Whirlpool Refrigerator Capacitor
33	2212996 Whirlpool Refrigerator Retainer
34	2264278 Whirlpool Refrigerator Extension
35	Clip, Compressor
36	W10401891 Whirlpool Refrigerator Extension Tube
