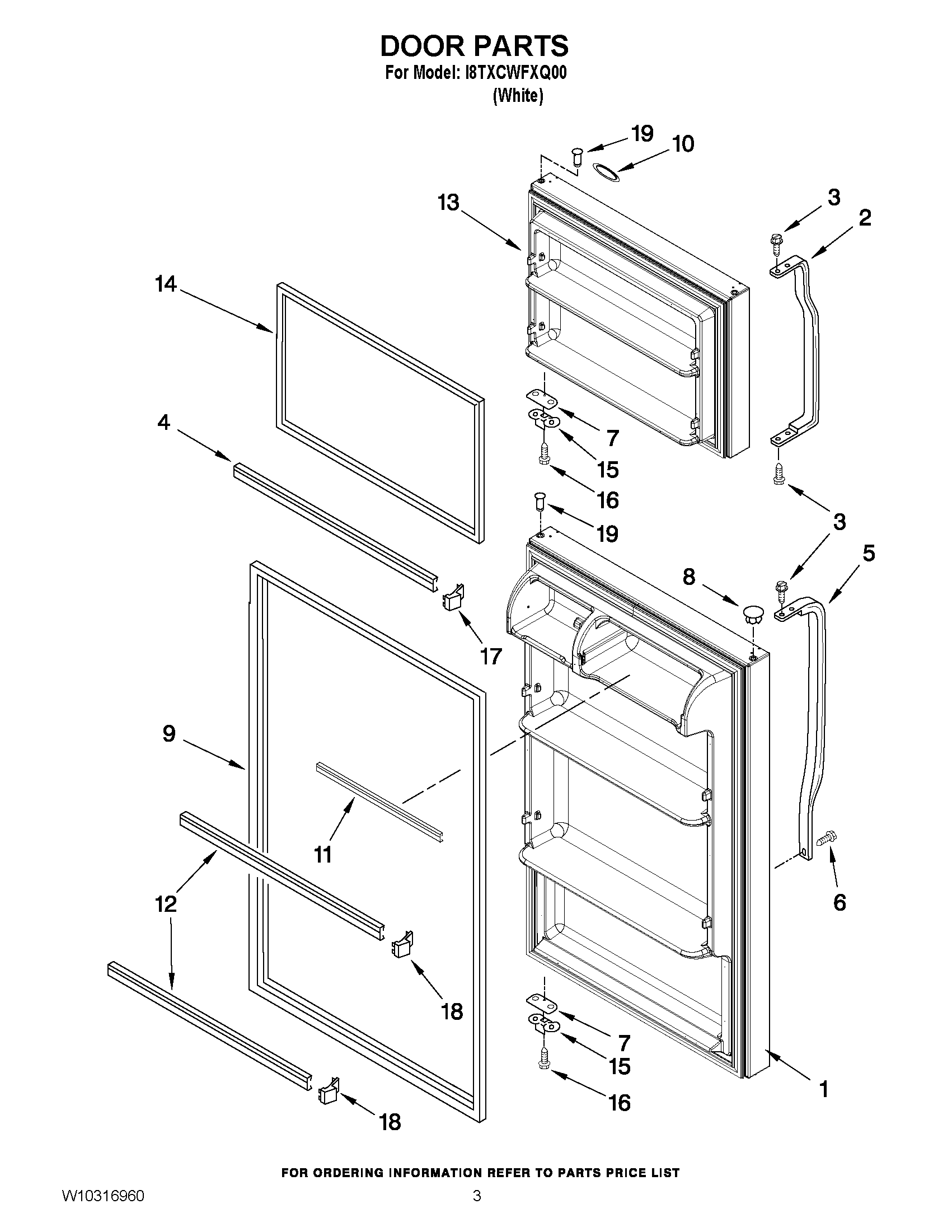

I8TXCWFXQ00 02 – DOOR PARTS

Products

Position	Product
1	REFRIGERATOR DOOR ASSEMBLY (INCLUDES ILLUS. 9) (WHITE)
2	HANDLE
3	WP489357 Whirlpool Recessed Screw
4	WP2266727 Whirlpool Refrigerator Door Trim
5	HANDLE
6	WP8281206 Whirlpool Refrigerator Screw
7	WP2258681W Whirlpool Refrigerator Shim
8	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
9	WP2319264T Whirlpool Door Gasket
10	Nameplate
11	W11129820 Whirlpool Refrigerator Door Trim
12	WP2266738 Whirlpool Refrigerator Door Trim
13	FREEZER DOOR INCLUDES (10 & 14) (WHITE)
14	WP2319263T Whirlpool Refrigerator FIP Gasket
15	W11745278 Whirlpool Bracket
16	SCREW
17	WP2156003 Whirlpool Refrigerator Door Shelf End Cap
18	ENDCAP
19	WP2183003 Whirlpool Thimble
