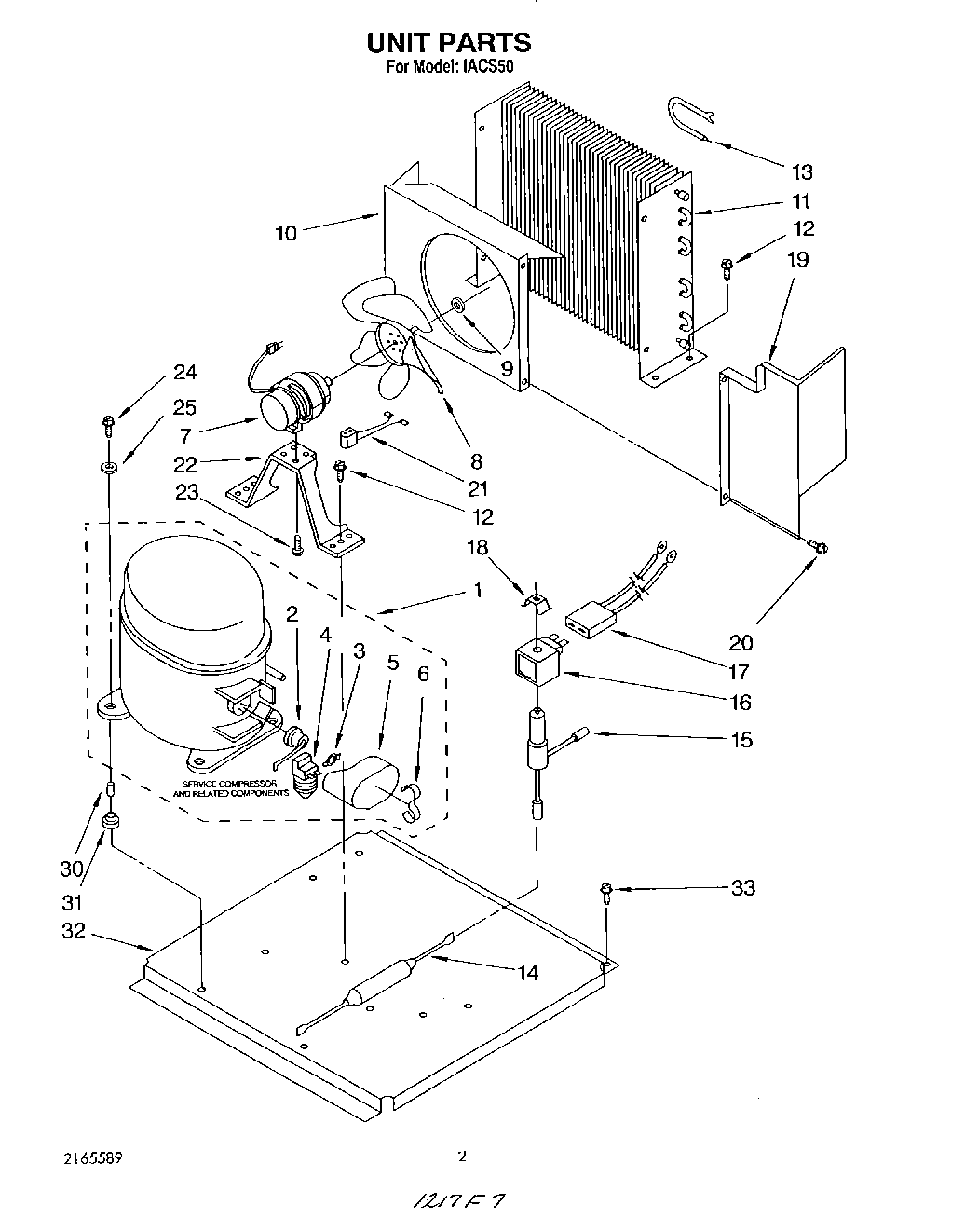

IACS50 02 – UNIT, LITERATURE

Products

PositionProduct
WPL LIT758459
WPL 757463
WPL LIT2165588
WPL LIT2165589
WPL LIT2165590
1Compressor, Service Kit
2Overload
2Overload
3Spring, Overload
4Relay, Start
4Relay, Start
5Cover
5Cover, Terminal
6Cover, Spring
6Strap
7Motor, Fan (Includes No. 23)
8978655 Whirlpool Refrigerator Fan Blade
9Nut, Hex 1/4-20
10Shroud, Condenser
11Condenser
12Screw, 1/4-20 x 1/2
13Accumulator
14W10843121 Whirlpool Refrigerator Tube
15Valve, Solenoid Coil
16Coil, Solenoid
17Harness, Wiring (Solenoid Coil)
18Retainer, Solenoid Coil
19Deflector, Air
20WP90767 Whirlpool Screw
21Harness, Wiring (Fan Motor)
22Bracket, Fan Motor
23Screw, 8-36 x 1/2 (4)
24Screw, 5/16-18 x 1-1/4 (4)
25Washer, Flat (4)
30Sleeve (4)
31Grommet (4)
32Base, Unit
33Screw, No.10-32 x 3/8
