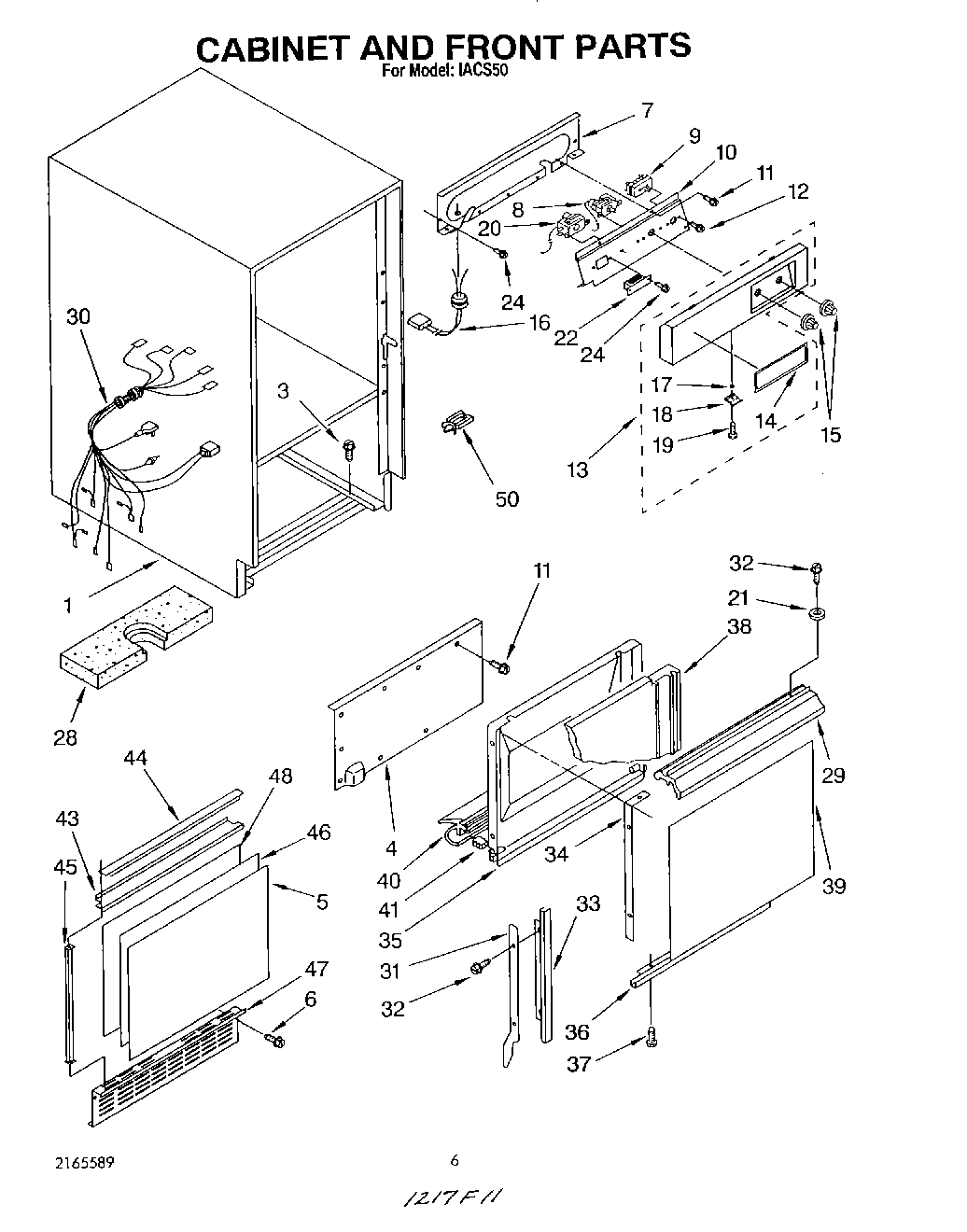

IACS50 04 – CABINET AND FRONT

Products

Position	Product
1	WPL 759117
3	Screw, No.10-32 x 3/8
4	Support, Cabinet Front
5	Panel, Outer
6	WP90767 Whirlpool Screw
7	Escutcheon, Panel
8	WPL 2157321
9	Switch, Rotary
10	Panel, Control
11	WP488729 Whirlpool Refrigerator Door Screw
12	WP486579 Whirlpool Air Conditioner Screw
13	Escutcheon
14	Nameplate
15	Knob
16	Harness, Wiring (Cutter Grid)
17	Washer, Latch
18	Latch, Door
19	Screw, 8-32 x 1/2
20	WPL 2165478
21	Washer (2)
22	Transformer
24	Screw, 8-32 x 3/8 (2)
28	Insul/Bottom Foam
29	Handle, Door Pull
30	WPL 756657
31	Rail, Door (Right Side)
31	Rail, Door (Left Side)
32	Screw, No.8-32 1/2 (6)
33	Trim, Door (L.S.)
33	Trim, Door (R.S.)
34	Strip, Tapping (2)
35	Liner, Door
36	Trim, Door (Lower)
37	Screw, No.8-32 x 1/2
38	WPL 758754
39	Panel, Door (Stainless Steel)
40	Gasket, Door
41	Plug, Hinge
43	Support Panel
44	Trim, Top & Bottom
45	Trim, Sides (2)
46	Filler, Grille Panel
47	Grille, Panel
48	Panel, Inner Grille
50	Retainer, Wire (2)
