IACS50E 02 – UNIT, LITERATURE

Products

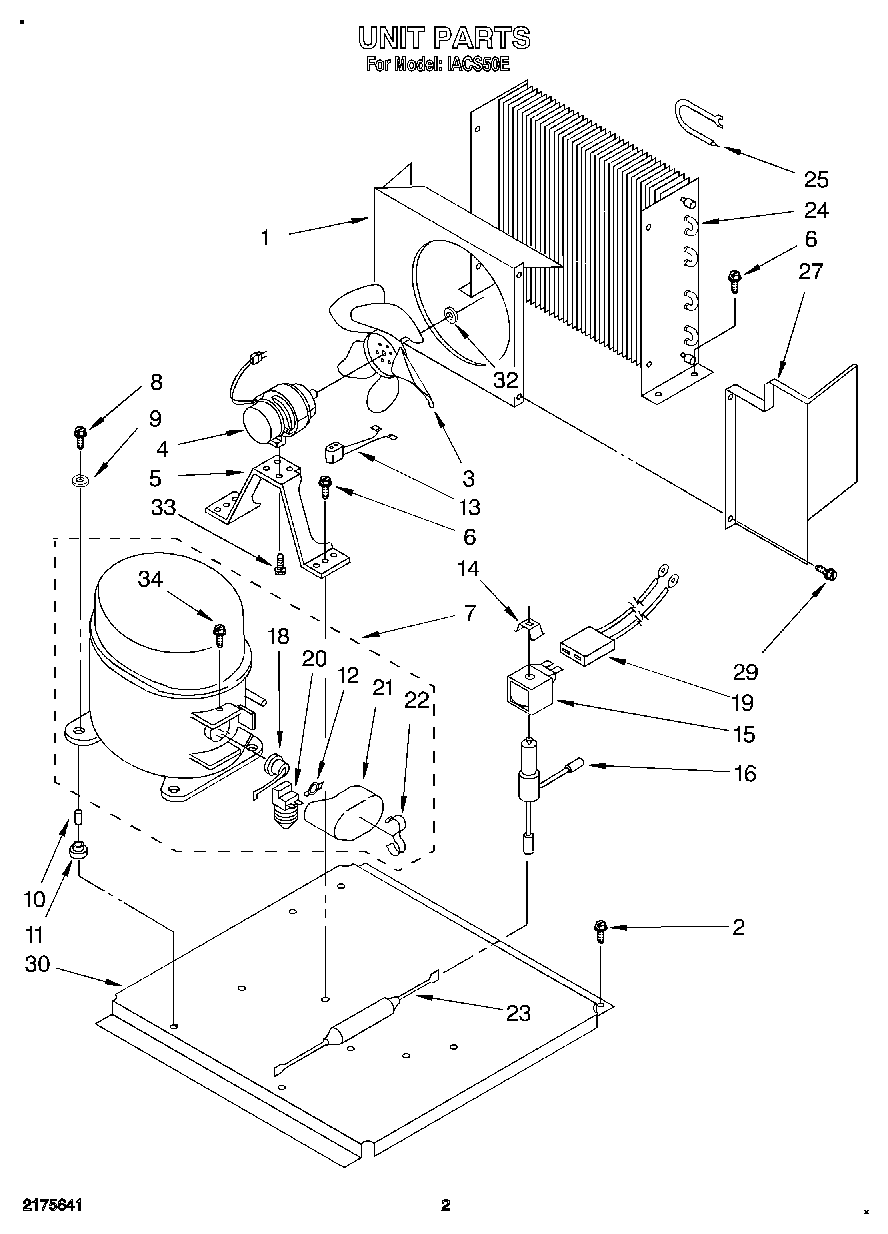

PositionProduct
WPL LIT2151399
WPL LIT2175641
1Shroud, Condenser
2Screw, No.10-32 x 3/8
3978655 Whirlpool Refrigerator Fan Blade
4WPL 593821
5Bracket, Fan Motor
6Screw, 1/4-20 x 1/2
7WPL 598180
8Screw, 5/16-18 x 1-1/4 (4)
9Washer, Flat (4)
10Sleeve (4)
11Grommet (4)
12Spring, Overload
13Harness, Wiring (Fan Motor)
14Retainer, Solenoid Coil
15WPL 593639
16Valve, Solenoid Coil
18WPL 598196
19Harness, Wiring (Solenoid Coil)
20WPL 598195
21Case, Relay
22Cover, Spring
23W10843121 Whirlpool Refrigerator Tube
24Condenser
25Accumulator
27Deflector, Air
29WP90767 Whirlpool Screw
30Base, Unit
32Nut, Hex 1/4-20
33Screw, 8-36 x 1/2 (4)
34Screw (Compressor Ground)
34WPL 758654
