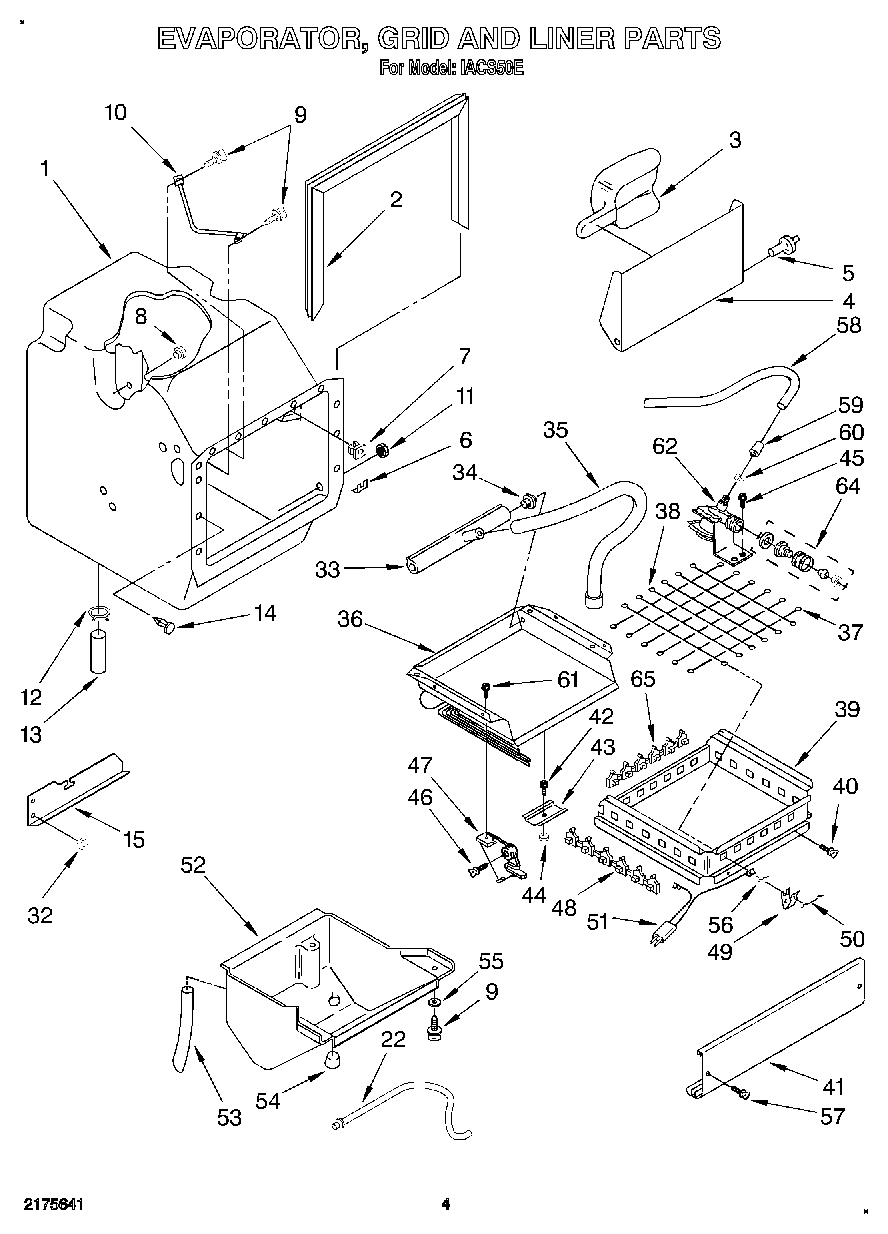

IACS50E 03 – EVAPORATOR, GRID AND LINER
Written by
in
IACS50E 03 – EVAPORATOR, GRID AND LINER
Products
Position
Product
1
Liner (Includes No.s 5, 6, 7, 11, 14)
2
Gasket, Liner
3
W11420408 Whirlpool Refrigerator Ice Scoop
4
Door, Inner
5
Stud, Inner Door Mtg. (2)
6
Washer, Clip
7
Grommet, Mtg (2)
8
Nut, Well (3)
9
Screw, 10 x 1/2
10
Thermostat, Well Bin
11
Nut, Hex 1/4 (2)
12
Clamp, Hose (2)
13
Hose, 5/8 x 4“ (Connector To Air Gap)
14
Clip, Linner (12)
15
Shelf, Water Pan
22
WPL 759213
32
Nut (3)
33
WPL 1129798
34
Plug,
35
Hose, Dispenser
36
Evaporator
37
Wire, Cutter (Includes 5 Wires)
38
Wire, Cutter (Includes 6 Wires)
39
WPL 759200
40
Thumbscrew 10-32 x 5/8
41
Panel, Grid
42
Screw, 10-32 x 1/2
43
Clamp
44
Nut, 10-32
45
Screw, 1/4-20 x 1/2
46
Screw, Thumb 10-32 x 1“
47
Bracket, Grid (2)
48
Insulator (2 Strips of 10)
49
Clip, Grid Wires (11)
50
Pin, Grid Wires (4)
51
Harness, Wiring (Cutter Grid)
52
Pan, Water
53
WPL 759109
54
WPL 759043
55
Washer, Latch
56
Pin, Grid Wire (17)
57
Screw, Thumb 10-32 x 3/4 (2)
58
W10823511 Whirlpool Refrigerator Water Tube
59
4387491 Whirlpool Refrigerator Insert
60
WP627018 Whirlpool Refrigerator Nut
61
SCREW
62
Valve, Complete Water
64
Adapter
65
Insulator (2 Strips of 9)
←
