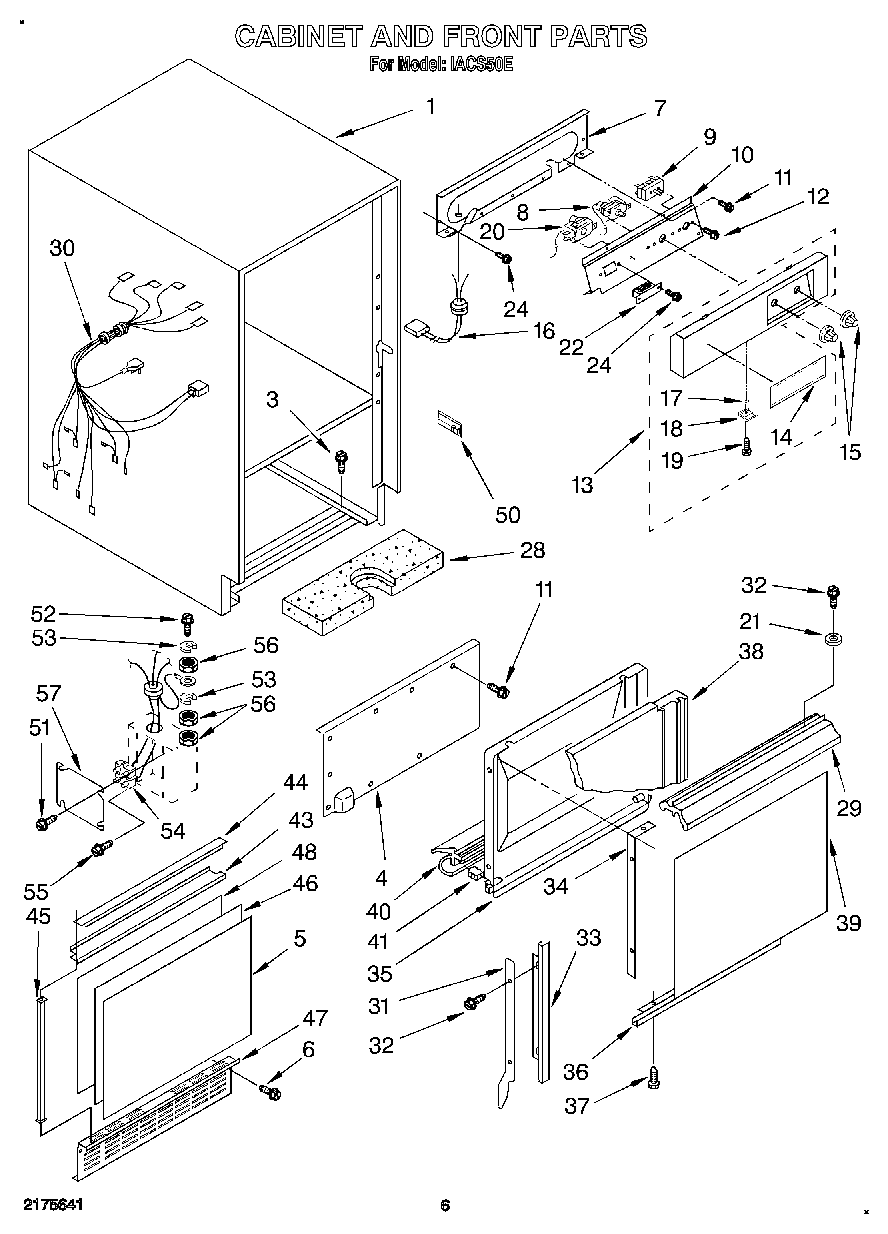

IACS50E 04 – CABINET AND FRONTadmin2025-04-26T11:24:35+00:00IACS50E 04 – CABINET AND FRONT
Products
| Position | Product |
|---|
| 1 | WPL 759117 |
| 3 | Screw, No.10-32 x 3/8 |
| 4 | Support, Cabinet Front |
| 5 | Panel, Outer |
| 6 | WP90767 Whirlpool Screw |
| 7 | Escutcheon, Panel |
| 8 | WPL 2157321 |
| 9 | Switch, Service |
| 10 | Panel, Control |
| 11 | WP488729 Whirlpool Refrigerator Door Screw |
| 12 | WP486579 Whirlpool Air Conditioner Screw |
| 13 | Escutcheon |
| 14 | Nameplate |
| 15 | Knob |
| 16 | Harness, Wiring (Cutter Grid) |
| 17 | Washer, Latch |
| 18 | Latch, Door |
| 19 | Screw, 8-32 x 1/2 |
| 20 | WPL 2165478 |
| 21 | Washer (2) |
| 22 | WPL 758309 |
| 24 | Screw, 8-32 x 3/8 (2) |
| 28 | Insul/Bottom Foam |
| 29 | Handle, Door Pull |
| 30 | WPL 758406 |
| 31 | Rail, Door (Right Side) |
| 31 | Rail, Door (Left Side) |
| 32 | Screw, No.8-32 1/2 (6) |
| 33 | Trim, Door (L.S.) |
| 33 | Trim, Door (R.S.) |
| 34 | Strip, Tapping (2) |
| 35 | Liner, Door |
| 36 | Trim, Door (Lower) |
| 37 | Screw, No.8-32 x 1/2 |
| 38 | WPL 758754 |
| 39 | Panel, Door (Stainless Steel) |
| 40 | Gasket, Door |
| 41 | Plug, Hinge |
| 43 | Support Panel |
| 44 | Trim, Top & Bottom |
| 45 | Trim, Sides (2) |
| 46 | Filler, Grille Panel |
| 47 | Grille, Panel |
| 48 | Panel, Inner Grille |
| 50 | Retainer, Wire (2) |
| 51 | Screw, 8-15 x 1/2 (4) |
| 52 | WPL 681333 |
| 53 | Lockwasher (3) |
| 54 | Terminal, Connector |
| 55 | WP681249 Whirlpool Screw Assembly |
| 56 | Nut, 1/4 Hex |
| 57 | WPL 573468 |
