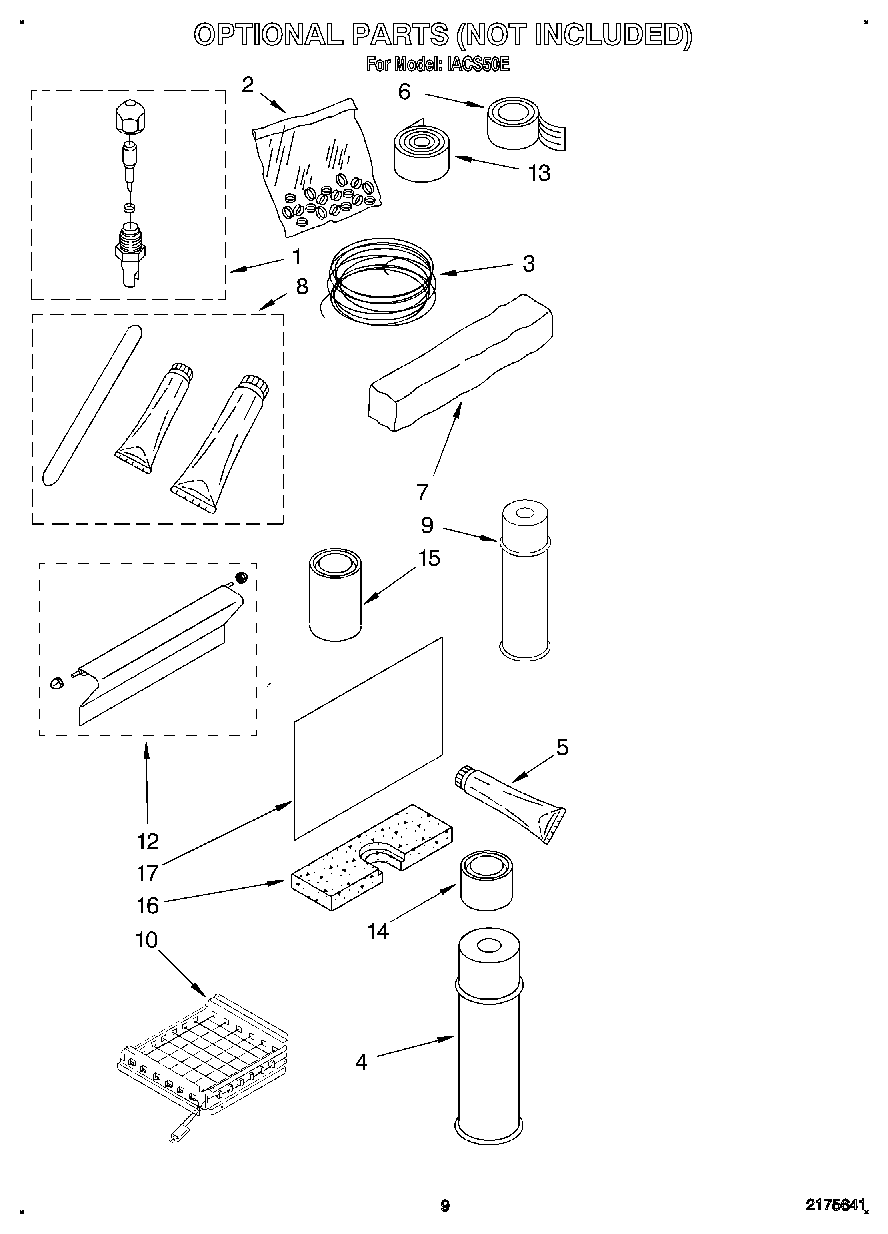

IACS50E 06 – OPTIONAL

Written by

Products

Position	Product
1	WP978025 Whirlpool Refrigerator Valve
1	VALVE, ACCESS (1/2“)
1	978030 Whirlpool Refrigerator Valve
1	978027 Whirlpool Refrigerator Primary Valve
1	978026 Whirlpool Refrigerator Primary Valve
1	876764 Whirlpool Refrigerator Primary Valve
1	VALVE, ACCESS (5/8“)
2	Seal, Ring (Access Valve) (20 – Pack)
3	Wire, 25“ Roll (White 12 GA.)
3	Wire, 25` Roll (Red 14 Ga.)
3	Wire, 25` Roll (Red 12 Ga.)
3	Wire, 25` Roll (Black 14 Ga.)
3	Wire, 25` Roll (Blue 16 Ga.)
3	Wire, 25“ Roll (White 14 GA.)
3	Wire, 25“ Roll (Black 12 GA.)
4	Adhesive, Insulation (24 Oz. Spray)
5	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
6	212643 Whirlpool Refrigerator Permagum Sealer
7	4318168 Whirlpool Refrigerator Primary Permagum Sealer
8	WPL 799833
9	Leveler (Thinner) (2oz.)
9	350956 Whirlpool Spray Assembly
9	350942 Whirlpool Spray Paint
10	Grid, Cutter (3/4“ – Cubes)
10	Grid, Cutter (1-1/4“ – Cubes (Complete Assembly))
12	Ice Deflector Kit
13	TAPE, VINYL (3/4 X 108“)
14	WP503695 Whirlpool Refrigerator Sealer
15	WP505587 Whirlpool Refrigerator Sealer
16	Insulation, Kit (Bin Bottom)
17	Panel
17	Panel, Door (Walnut)
17	Panel, Door (Almond & Harvest Gold)
17	Panel, Door (White & Black)
17	Panel, Door (Stainless Steel)
17	WPL 758745
