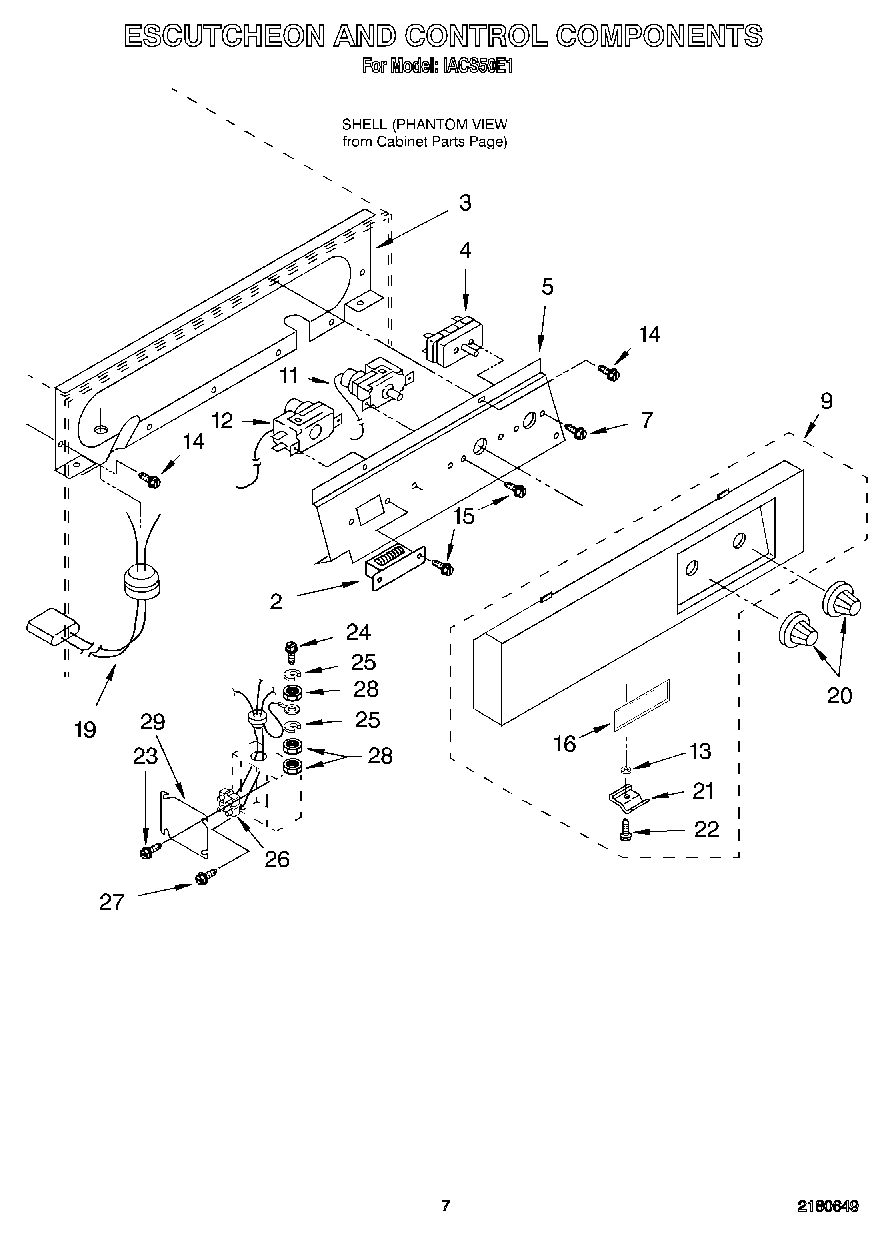

IACS50E1 05 – ESCUTCHEON AND CONTROL COMPONENTS

Products

PositionProduct
2WPL 758309
3Escutcheon, Panel
4Switch, Service
5WPL 2172846
7WP486579 Whirlpool Air Conditioner Screw
9Escutcheon
11Thermostat, Ice-Control
12Thermostat, Ice-Bin
13Washer, Latch
14WP488729 Whirlpool Refrigerator Door Screw
15Screw, 8-32 x 3/8 (2)
16Nameplate
19Harness, Wiring (Cutter Grid)
20Knob
21Latch, Door
22Screw, 8-32 x 1/2
23Screw, 8-15 x 1/2 (4)
24WPL 681333
25Lockwasher (3)
26Terminal, Connector
27WP681249 Whirlpool Screw Assembly
28Nut, 1/4 Hex
29WPL 573468
