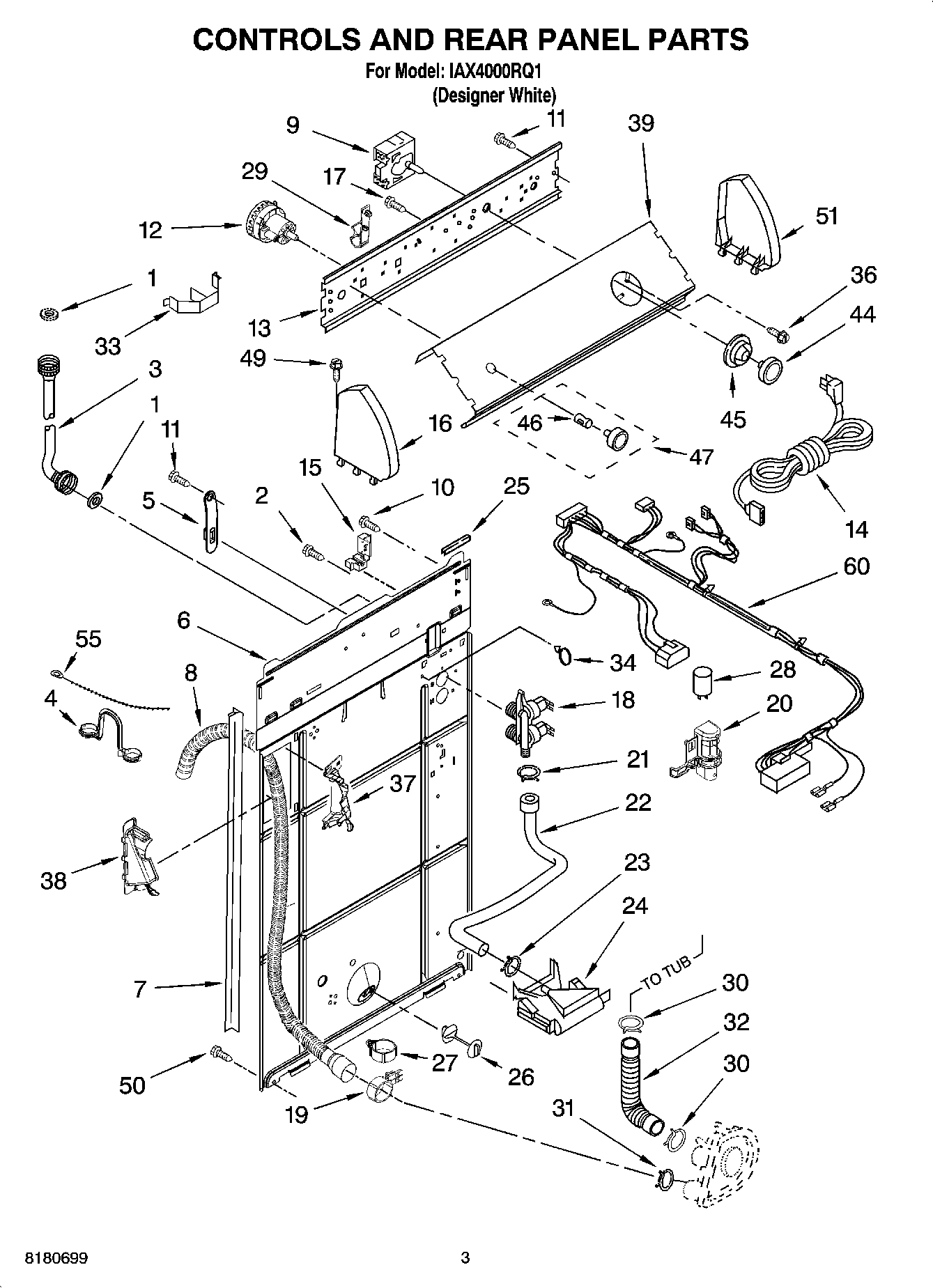

IAX4000RQ1 02 – CONTROL AND REAR PANEL PARTS

IAX4000RQ1 02 – CONTROL AND REAR PANEL PARTS

Written by

in

IAX4000RQ1 02 – CONTROL AND REAR PANEL PARTS

Products

PositionProduct
1WP16123 Whirlpool Washer
2WP9740848 Whirlpool Dishwasher Screw
3FILL HOSE 5' W/WASHER
3WP89503 Whirlpool Washer Fill Hose
4WP8577378 Whirlpool Retainer
5WP8568314 Whirlpool Strap
6Panel, Rear
7WP62747 Whirlpool Pad
9WP3954563 Whirlpool Timer Assembly
10WP3351614 Whirlpool Screw
11WP90767 Whirlpool Screw
12SWITCH-WL
13WP3948608 Whirlpool Bracket
14Cord, Power (Includes Illus. 15)
15Strain Relief, Power Cord
173400073 Whirlpool Screw
18285805 Whirlpool Washer Water Inlet Valve
198541668 Whirlpool Washer Clamp
20Clip, Capacitor
21WP596669 Whirlpool Hose Clamp
22HOSE
24WP3347034 Whirlpool Vacuum Break
25Edge Protector
26WP8519200 Whirlpool Support Assembly
27Clamp, Hose
28CAPACITOR
29Retainer, Harness
30WP616099 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
33Clip, Harness & Pressure Hose
348559320 Whirlpool Clip
36WP3400818 Whirlpool Screw
38WPW10096921 Whirlpool Hose
39Panel, Console
44W10807860 Whirlpool White Control Knob
45Dial, Timer
46WP8536939 Whirlpool Spring Clip
47WP8557460 Whirlpool Knob
49WP388326 Whirlpool Screw
50WP3390631 Whirlpool Screw
51279960 Whirlpool Endcap Assembly
55WPW10339879 Whirlpool Wire Tie
60Harness, Wiring (For Detail See Pages 9 & 10)
