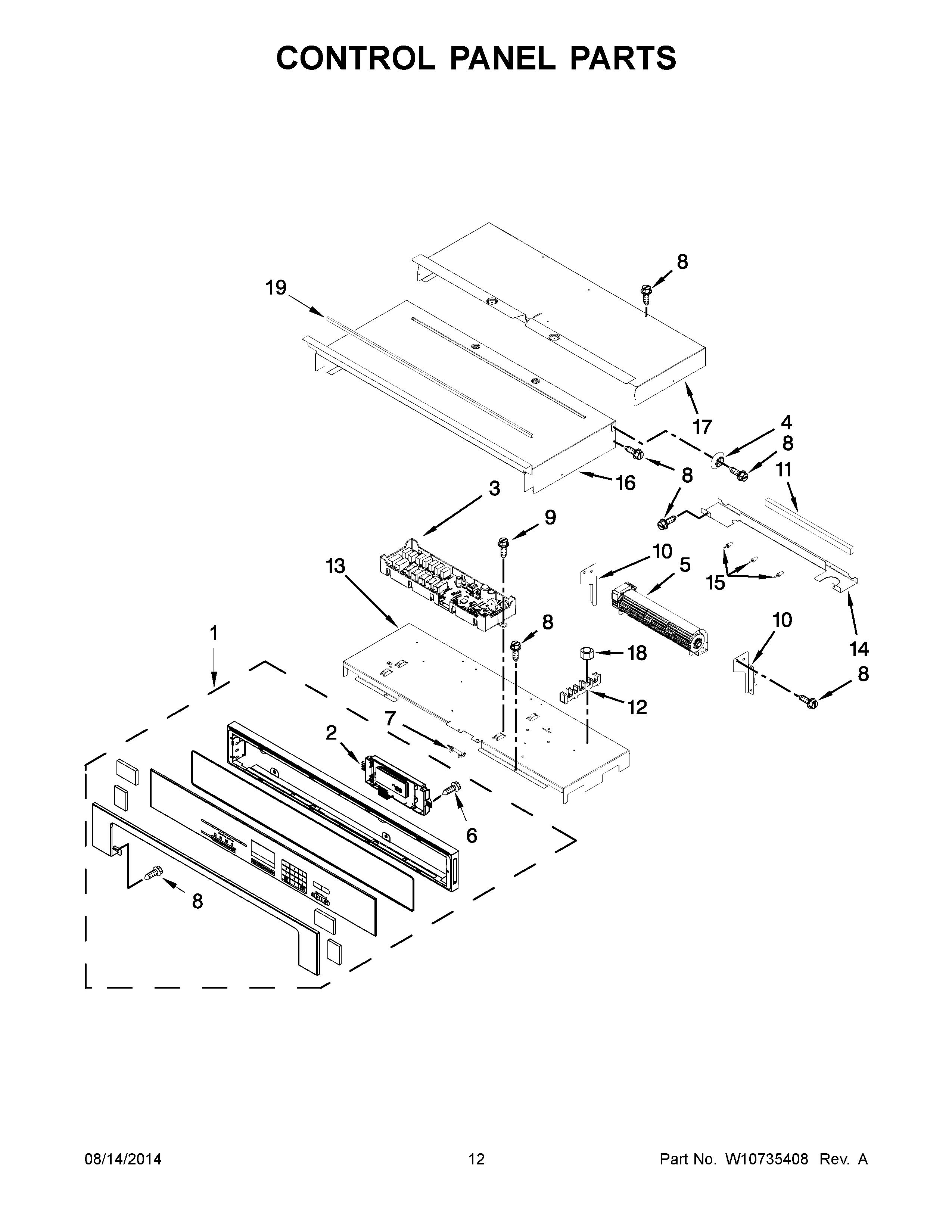

IBD350DS00 07 – CONTROL PANEL PARTS

Products

PositionProduct
1W10695076 Whirlpool Control Panel
2WPW10532438 Whirlpool Electronic Control Board + Core
3WPW10695608-includeCORE Whirlpool WPW10695608 Washer Electronic Control Board + Core
4W10363824 Whirlpool Spacer
5WPW10661038 Whirlpool Blower
5AWPW10641253 Whirlpool Blower Motor
6SCREW
7WPW10545291 Whirlpool Range Thermal Fuse
8SCREW
9SCREW
10BRACKET, BLOWER LEFT
10AW10283078 Whirlpool Mounting Bracket
11W10491987 Whirlpool Foam Seal
12BLOCK, TERMINAL
13W10347650 Whirlpool Mounting Bracket
14W10509164 Whirlpool Mounting Bracket
15W10351295 Whirlpool Bumper Assembly
16W10318192 Whirlpool Cabinet Top
17W10904156 Whirlpool Cabinet Top
18Nut
19WPW10657548 Whirlpool Foam Seal
