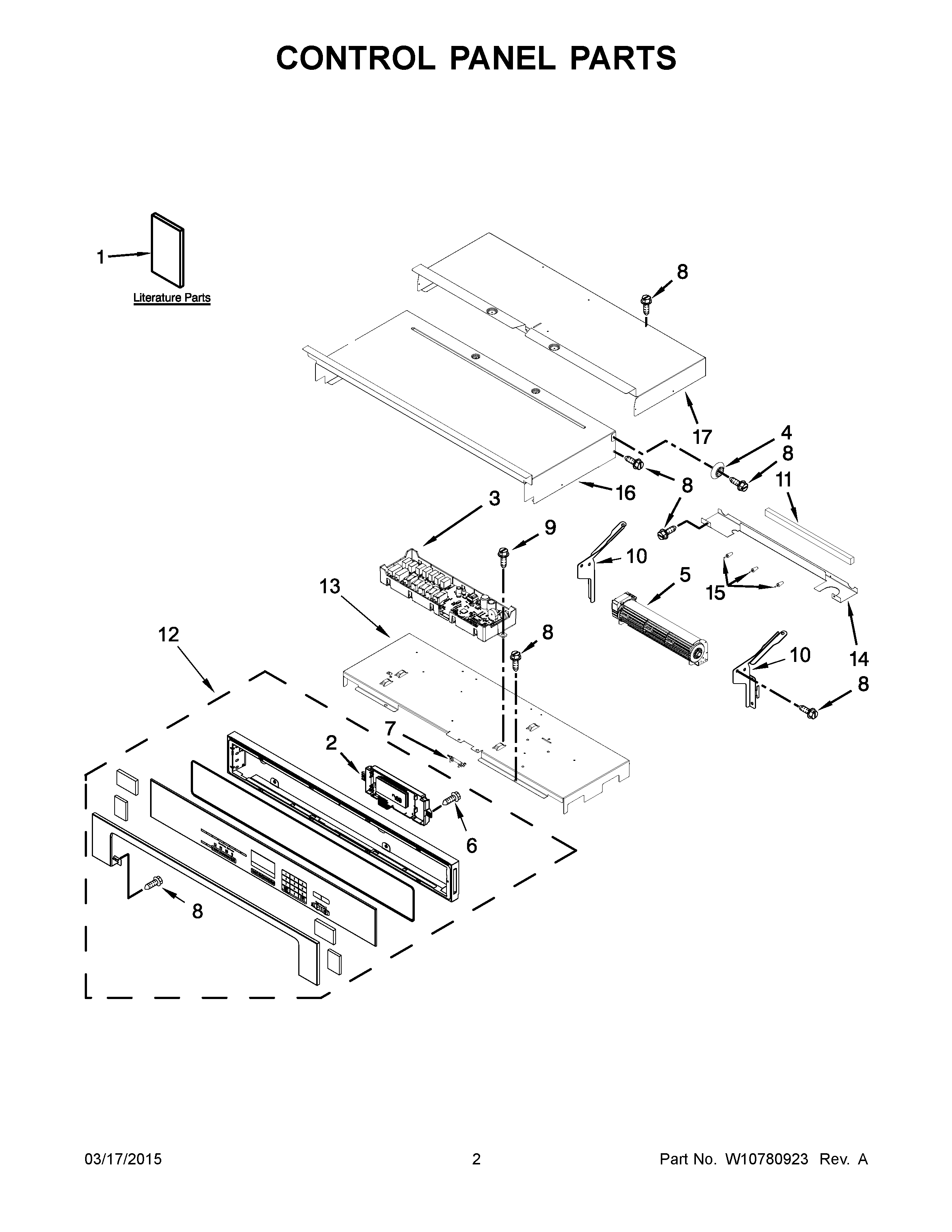

IBD350DS01 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	W10679413 Whirlpool Wire Harness
NI	W11157775 Whirlpool Wire Harness
NI	W10573327 Whirlpool Wire Harness
NI	16515 Whirlpool Clip
NI	4452400 Whirlpool Microwave Wire Harness
NI	W10655464 Whirlpool Bracket
NI	4450800 Whirlpool Oven Screw
NI	4448664 Whirlpool Oven Mounting Bracket
NI	W10284931 Whirlpool Wire Harness
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10730964 Whirlpool Wire Harness
1	GUIDE, USE & CARE
1B	SHEET, TECH
1A	INSTRUCTIONS, INSTALLATION
2	WPW10532438 Whirlpool Electronic Control Board + Core
3	WPW10734533-includeCORE Whirlpool WPW10734533 Washer Electronic Control Board + Core
4	W10618105 Whirlpool Spacer
5	WPW10661038 Whirlpool Blower
5A	WPW10641253 Whirlpool Blower Motor
6	SCREW
7	WPW10545291 Whirlpool Range Thermal Fuse
8	SCREW
9	SCREW
10A	W10655462 Whirlpool Mounting Bracket
10	W10655463 Whirlpool Bracket Mounting
11	W10491987 Whirlpool Foam Seal
12	W10695076 Whirlpool Control Panel
13	W10347650 Whirlpool Mounting Bracket
14	W10655465 Whirlpool Mounting Bracket
15	W10351295 Whirlpool Bumper Assembly
16	W10318192 Whirlpool Cabinet Top
17	W10904156 Whirlpool Cabinet Top
