IBD350DS02 02 – CONTROL PANEL PARTS
Written by
in

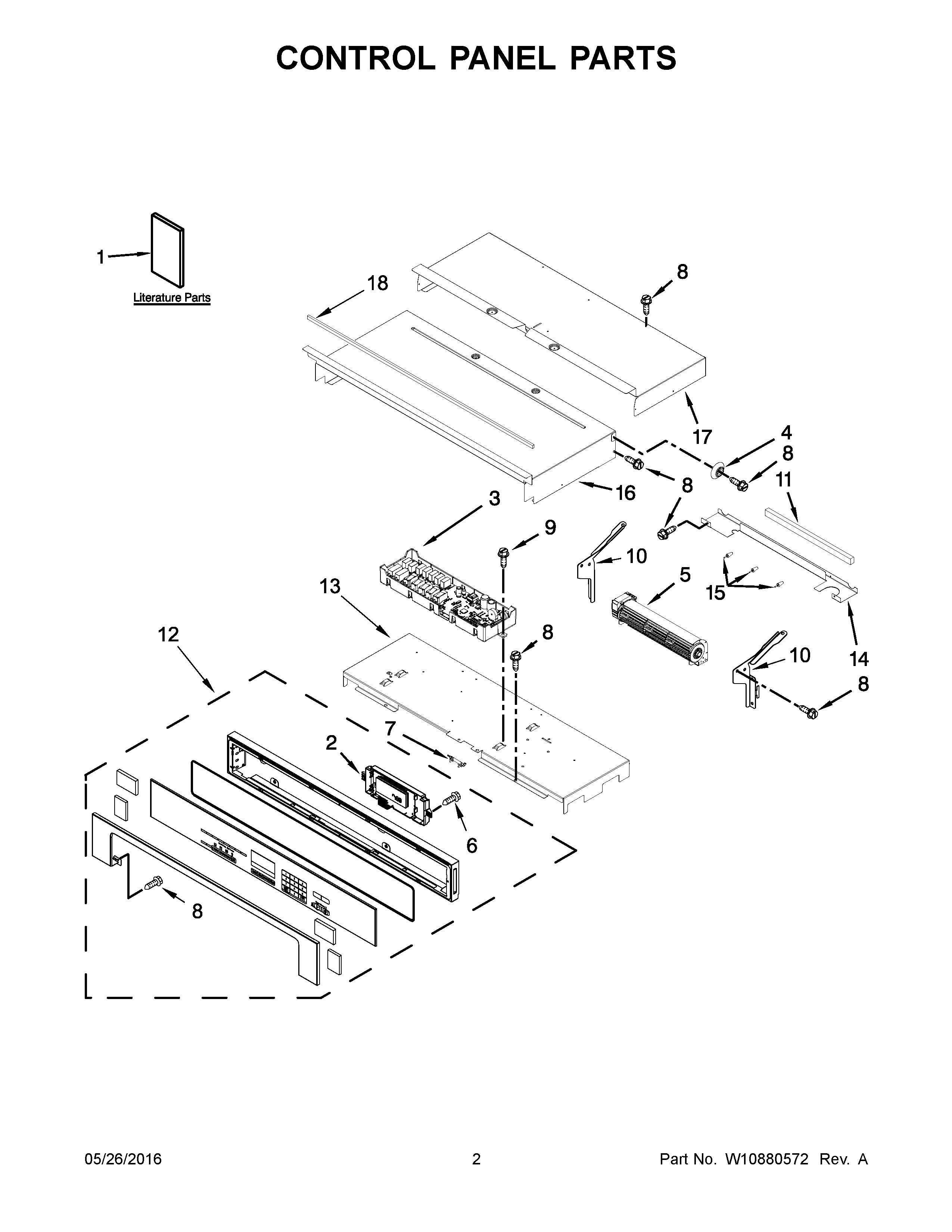

IBD350DS02 02 – CONTROL PANEL PARTS
Products
Position
Product
NI
W11132989 Whirlpool Wire Harness
NI
W11157775 Whirlpool Wire Harness
NI
16515 Whirlpool Clip
NI
4452400 Whirlpool Microwave Wire Harness
NI
W10655464 Whirlpool Bracket
NI
W10487999 Whirlpool Clip
NI
4450800 Whirlpool Oven Screw
NI
4448664 Whirlpool Oven Mounting Bracket
NI
CABINET (NOT A SERVICEABLE PART)
NI
W10284931 Whirlpool Wire Harness
NI
W10679413 Whirlpool Wire Harness
NI
W10774726 Whirlpool Wire Harness
1B
SHEET, TECH
1
GUIDE, USE & CARE
1A
INSTRUCTIONS, INSTALLATION
1C
W10760039 Whirlpool Hardware
2
WPW10752316-includeCORE Whirlpool WPW10752316 Washer Electronic Control Board + Core
3
W10879696-includeCORE Whirlpool W10879696 Refrigerator Electronic Control Board + Core
4
W10618105 Whirlpool Spacer
5
WPW10661038 Whirlpool Blower
5A
WPW10641253 Whirlpool Blower Motor
6
SCREW
7
WPW10545291 Whirlpool Range Thermal Fuse
8
SCREW
9
SCREW
10A
W10655462 Whirlpool Mounting Bracket
10
W10655463 Whirlpool Bracket Mounting
11
W10491987 Whirlpool Foam Seal
12
W10864195 Whirlpool Control Panel
13
W10347650 Whirlpool Mounting Bracket
14
W10655465 Whirlpool Mounting Bracket
15
W10351295 Whirlpool Bumper Assembly
16
W10318192 Whirlpool Cabinet Top
17
W10904156 Whirlpool Cabinet Top
18
W10728475 Whirlpool Foam Seal
←
