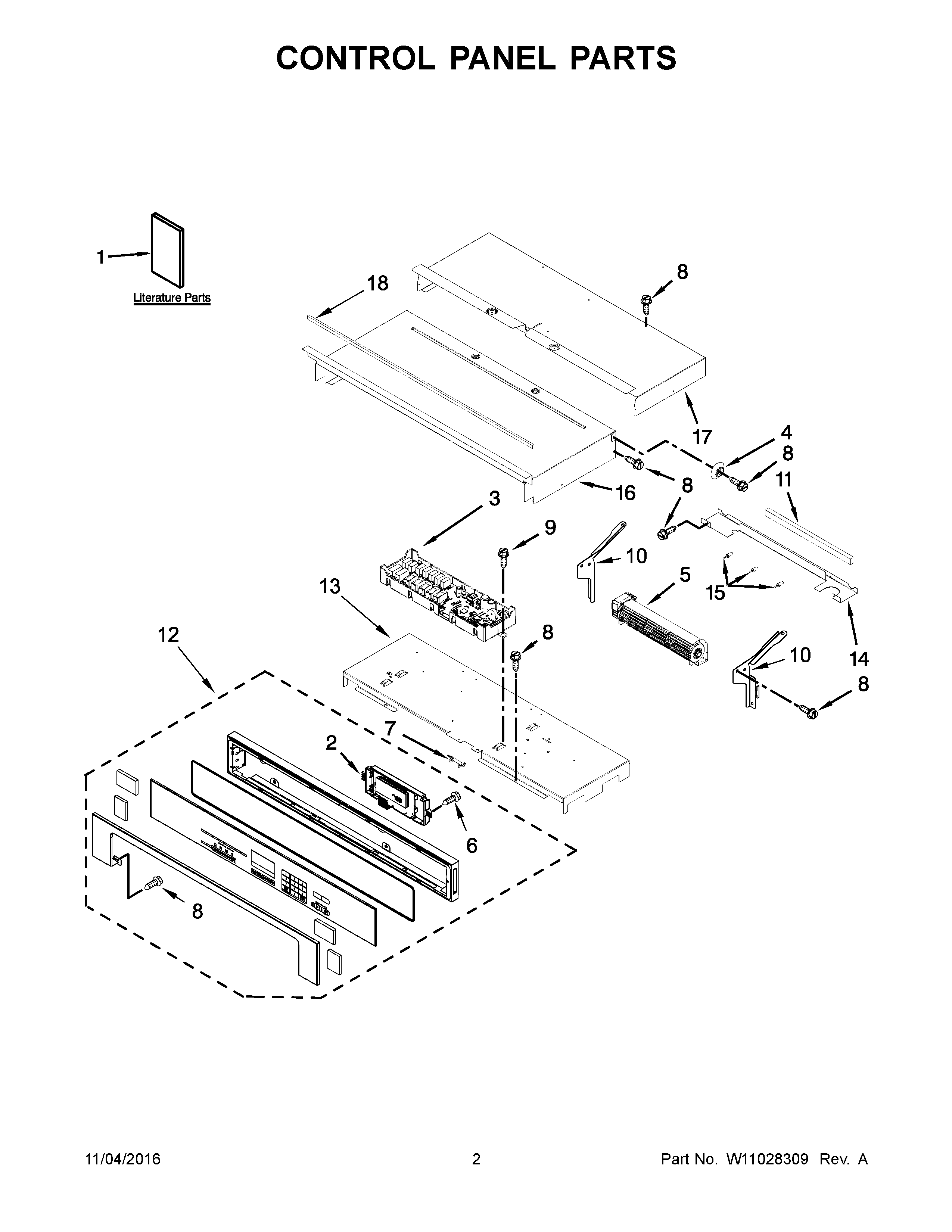

IBD350DS03 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	W11132989 Whirlpool Wire Harness
NI	W11157775 Whirlpool Wire Harness
NI	W11136112 Whirlpool Wire Harness
NI	16515 Whirlpool Clip
NI	4452400 Whirlpool Microwave Wire Harness
NI	W11177679 Whirlpool Wire Harness
NI	W10655464 Whirlpool Bracket
NI	W10487999 Whirlpool Clip
NI	4450800 Whirlpool Oven Screw
NI	4448664 Whirlpool Oven Mounting Bracket
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10284931 Whirlpool Wire Harness
1B	SHEET, TECH
1C	W10760039 Whirlpool Hardware
1A	INSTRUCTIONS, INSTALLATION
1	GUIDE, USE & CARE
2	WPW10752316-includeCORE Whirlpool WPW10752316 Washer Electronic Control Board + Core
3	W11032470 Whirlpool Electronic Control
4	W10618105 Whirlpool Spacer
5	W11245567 Whirlpool Blower Assembly
6	SCREW
7	WPW10545291 Whirlpool Range Thermal Fuse
8	SCREW
9	SCREW
10	W10655463 Whirlpool Bracket Mounting
10A	W10655462 Whirlpool Mounting Bracket
11	W10491987 Whirlpool Foam Seal
12	W10864195 Whirlpool Control Panel
13	W10347650 Whirlpool Mounting Bracket
14	W10655465 Whirlpool Mounting Bracket
15	W10351295 Whirlpool Bumper Assembly
16	W10318192 Whirlpool Cabinet Top
17	W10904156 Whirlpool Cabinet Top
18	W10728475 Whirlpool Foam Seal
