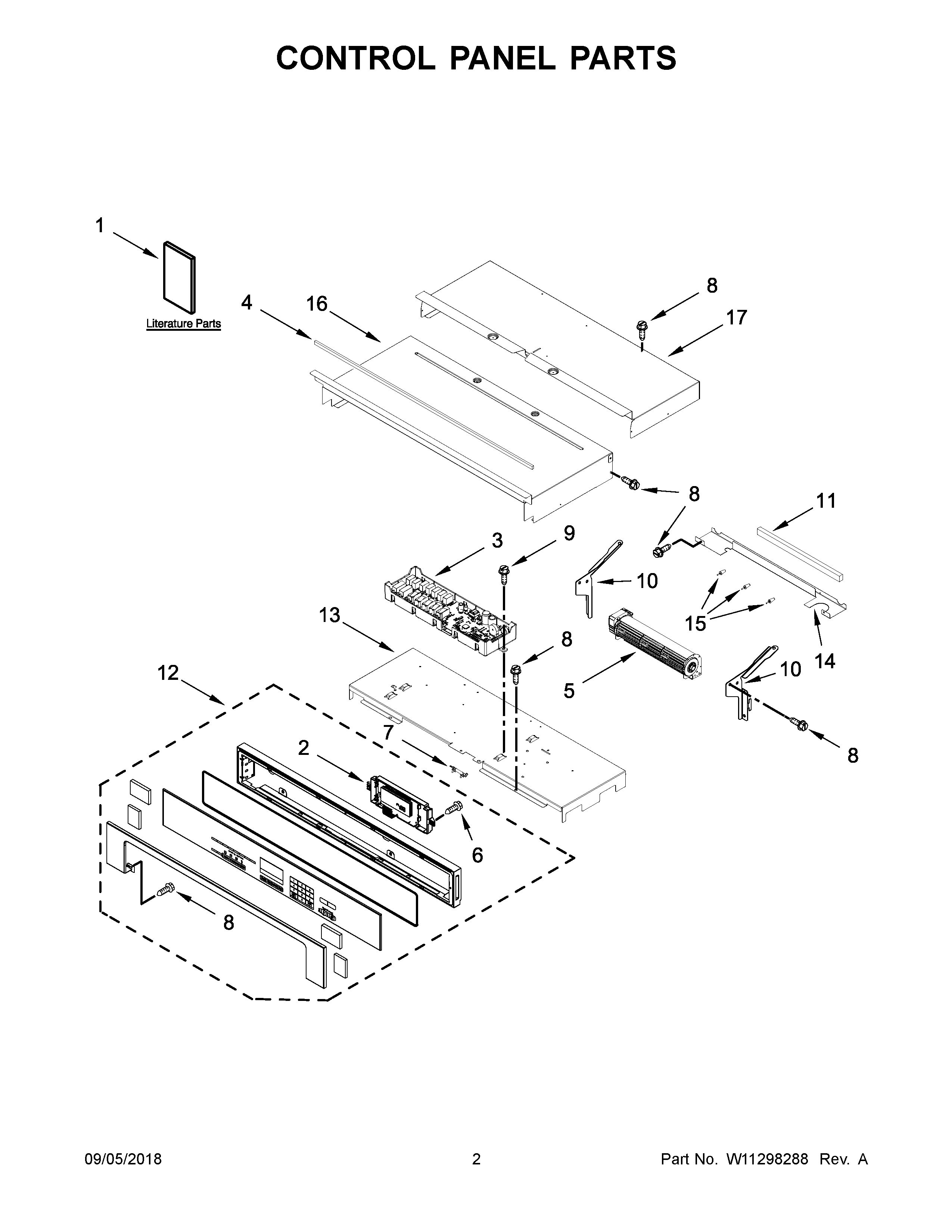

IBD350DS04 02 – CONTROL PANEL PARTS

Products

PositionProduct
NIW11132989 Whirlpool Wire Harness
NIW11157775 Whirlpool Wire Harness
NI16515 Whirlpool Clip
NISTRAP, LEAD GROUND
NIW10655464 Whirlpool Bracket
NIW10487999 Whirlpool Clip
NI4450800 Whirlpool Oven Screw
NI4448664 Whirlpool Oven Mounting Bracket
NICABINET (NOT A SERVICEABLE PART)
NIW11136112 Whirlpool Wire Harness
NIW11177679 Whirlpool Wire Harness
NIHARNESS, SIGNAL
1BSHEET, TECH
1GUIDE, USE & CARE
1AINSTRUCTIONS, INSTALLATION
1CW10760039 Whirlpool Hardware
2WPW10752316-includeCORE Whirlpool WPW10752316 Washer Electronic Control Board + Core
3W11032470 Whirlpool Electronic Control
4W10728475 Whirlpool Foam Seal
5W11245567 Whirlpool Blower Assembly
6SCREW
7WPW10545291 Whirlpool Range Thermal Fuse
8SCREW
9SCREW
10W10655463 Whirlpool Bracket Mounting
10AW10655462 Whirlpool Mounting Bracket
11W10491987 Whirlpool Foam Seal
12ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (STAINLESS)
13W10347650 Whirlpool Mounting Bracket
14W10655465 Whirlpool Mounting Bracket
15W10351295 Whirlpool Bumper Assembly
16W10318192 Whirlpool Cabinet Top
17W10904156 Whirlpool Cabinet Top
