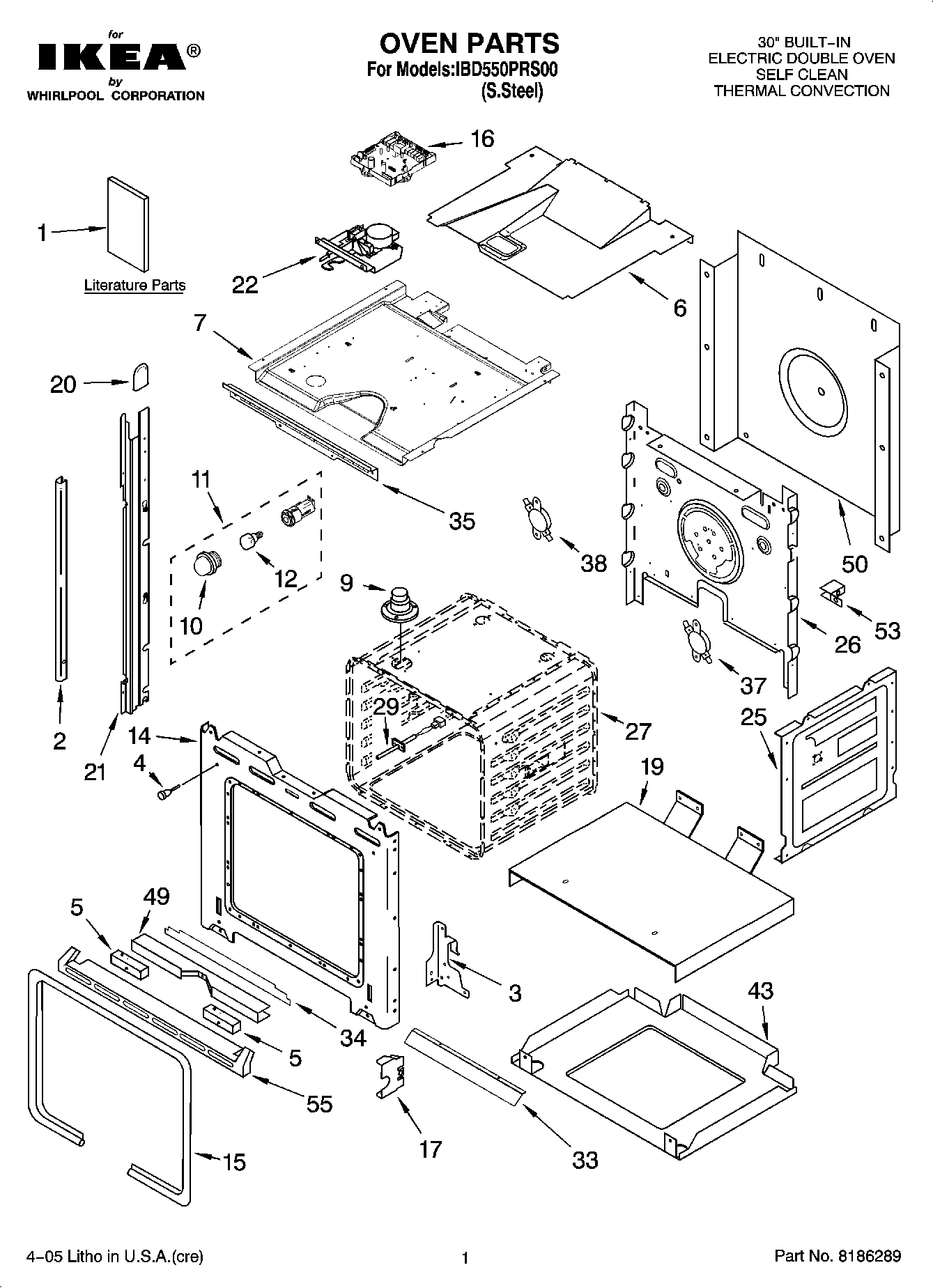

IBD550PRS00 01 – OVEN PARTS

IBD550PRS00 01 – OVEN PARTS

Written by

in

IBD550PRS00 01 – OVEN PARTS

Products

PositionProduct
1Instruction, Installation
1Safe Cooking Tips
1Installation/ Undercounter
1Tech Sheet
1Use & Care Guide (Oven)
1Installation, MWO Trim Kit
2Trim, Side (Stainless Steel)
2WP694091 Whirlpool Screw
2Trim, Side (Stainless Steel)
3WP4455605 Whirlpool Left Hand Hinge
3WP4455606 Whirlpool Right Hand Hinge
44448520 Whirlpool Oven Bumper
5Spacer, Foam
6Divider, Vent
7Top, Chassis
9SCREW
9W10861715 Whirlpool Vent Tube
10Lens, Light
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
14Screw
14WP4450118 Whirlpool Nut
14Frame, Front
15W11675844 Whirlpool Oven Gasket
16WP8304383 Whirlpool Electronic Control Board + Core
16Control, Taurus2 (Upper)
174452152 Whirlpool Oven Mounting Bracket
19Support, Insulation
20Cap, Spacer
21814374 Whirlpool Oven Rail Mount
21WP4448444 Whirlpool Grommet
21814373 Whirlpool Oven Rail Mount
22WP9760889 Whirlpool Door Latch
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not serviceable)
29WPW10131825 Whirlpool Oven Temperature Sensor
339760677 Whirlpool Oven Vent Deflector
34Insulation Bottom Vent
35Vent, Center
37WP9759243 Whirlpool Thermostat
38WP9759242 Whirlpool Thermostat
43Base, Chassis
49WP4449154 Whirlpool Screw
49WP4448933 Whirlpool Retainer
50WP4451747 Whirlpool Rear Cover
53WPL 4449845
53WP4449809 Whirlpool Screw
55WPL 4450365
55WP3400832 Whirlpool Screw
55WPL 4455147
55W11684730 Whirlpool Insulation
55FOLLOWI
