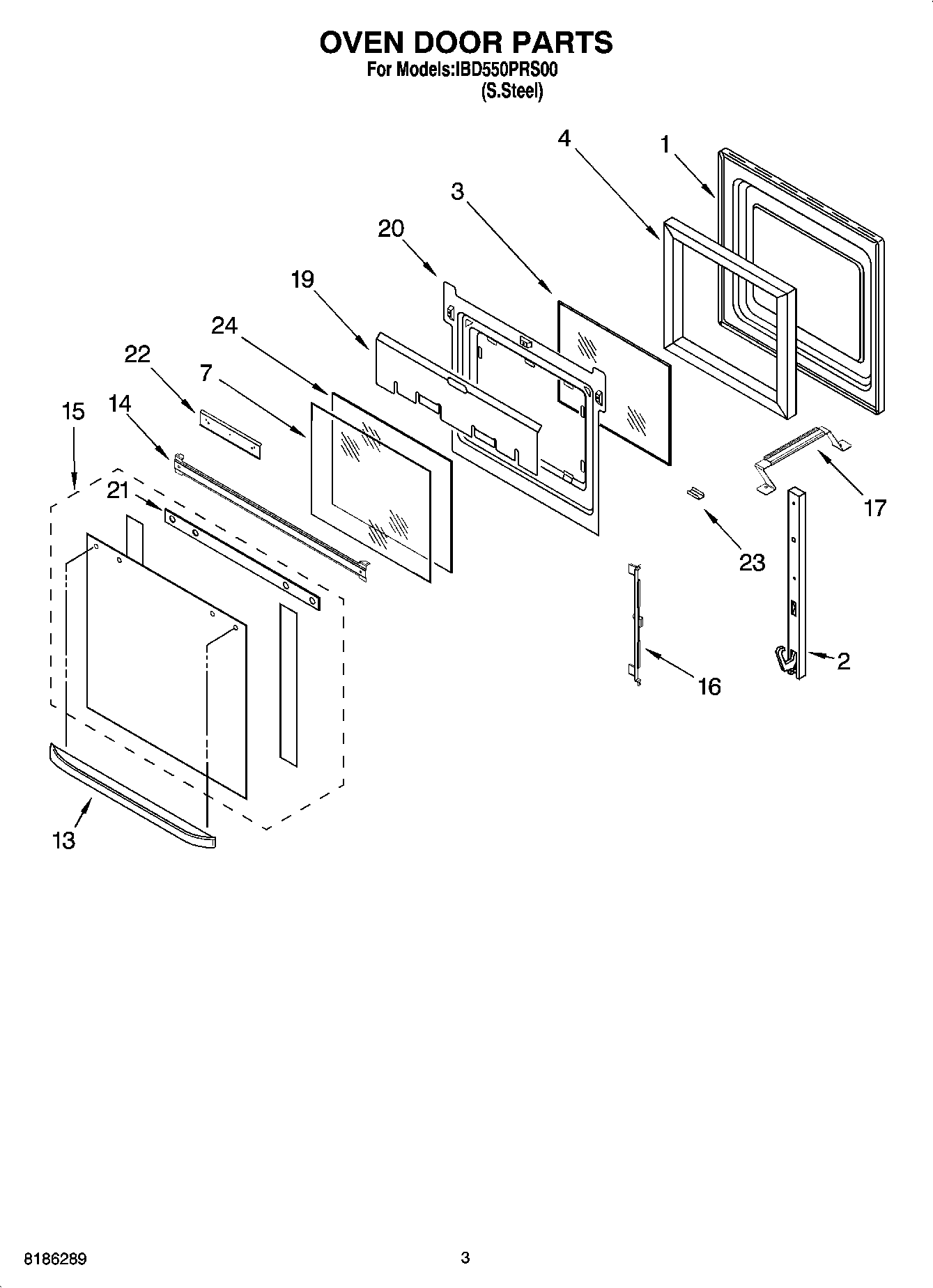

IBD550PRS00 02 – OVEN DOOR PARTS

Products

Position	Product
1	WP9759413 Whirlpool Door Liner
2	WP9760579 Whirlpool Right Door Hinge
2	HINGE-DOOR LH/SS DOOR SPRING
3	WP4449259 Whirlpool Glass Window
4	WP4451722 Whirlpool Door Insulation Assembly
13	Door Handle
14	Bracket, Handle
14	WPW10132940 Whirlpool Dishwasher Screw
15	Assy, Door Glass (S.Steel)
15	Assy, Door Glass (S.Steel (Lower))
16	WP9759229 Whirlpool Mounting Bracket
17	Bracket (3rd Glsss)
19	WP4449809 Whirlpool Screw
19	Shield, Heat
20	WP3400832 Whirlpool Screw
20	WP4457132 Whirlpool Retainer
21	Seal, Door Top
22	4457114 Whirlpool Oven Heat Shield
23	Retainer, Glass-Clip (Stainless Steel)
23	WP4449743 Whirlpool Screw
24	WP9759225 Whirlpool Inner Door Glass
