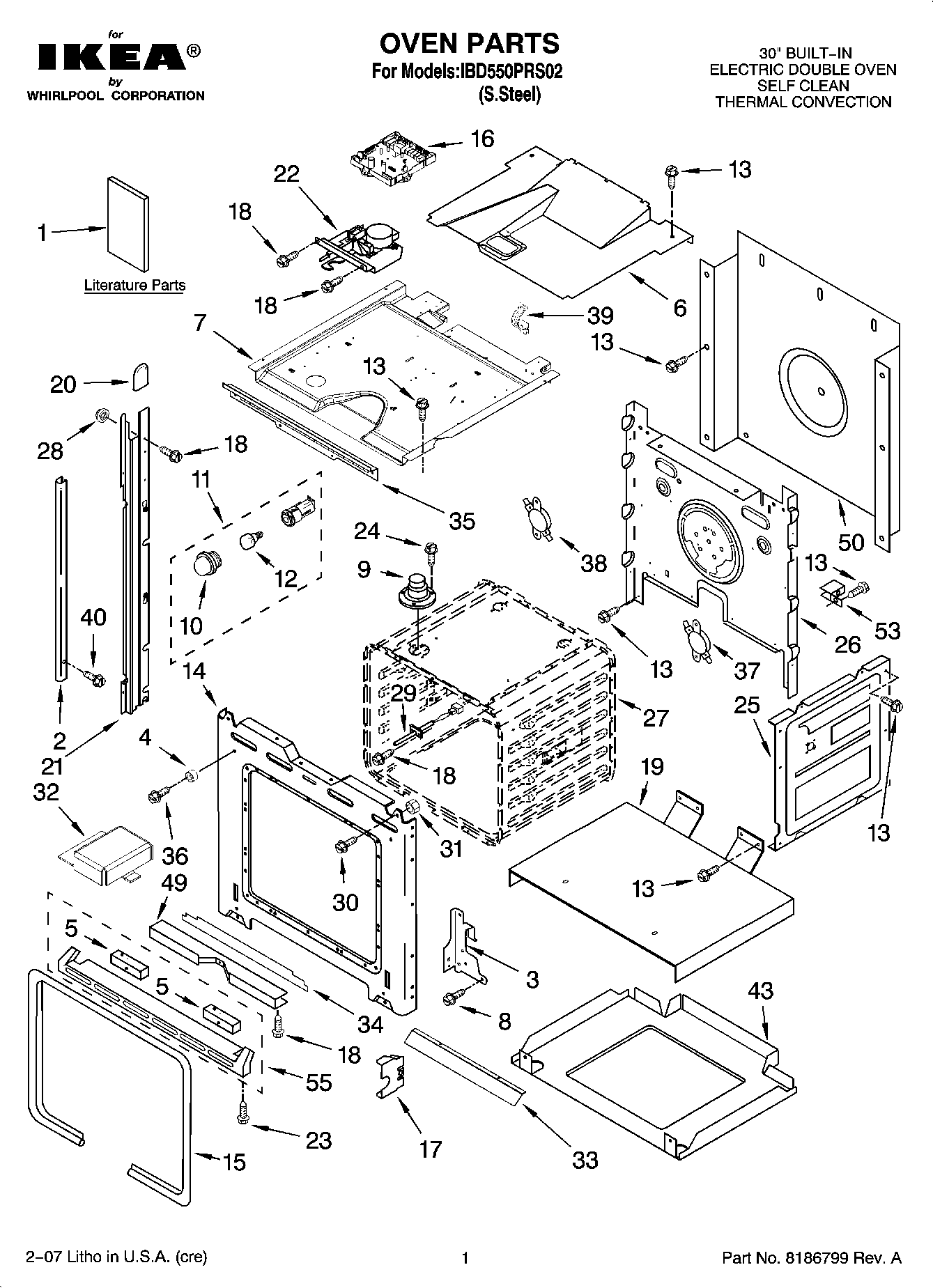

IBD550PRS02 01 – OVEN PARTS

IBD550PRS02 01 – OVEN PARTS

Written by

in

IBD550PRS02 01 – OVEN PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS (BI-LINGUAL)
1Owners Manual (Sgl/Dbl Oven)
1Instruction, Installation
1Tech Sheet
2Trim, Side (Stainless Steel)
2Trim, Side (Stainless Steel)
3WP4455605 Whirlpool Left Hand Hinge
3WP4455606 Whirlpool Right Hand Hinge
4W10105790 Whirlpool Bumper
5Spacer, Foam
6Divider, Vent
7Top Chassis
8WP4449743 Whirlpool Screw
9W10861715 Whirlpool Vent Tube
10Lens, Light (2)
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
13WP4449809 Whirlpool Screw
14WPW10115831 Whirlpool Front Frame
15W11675844 Whirlpool Oven Gasket
16WP8304383 Whirlpool Electronic Control Board + Core
16Control (Upper)
174452152 Whirlpool Oven Mounting Bracket
18WP4449154 Whirlpool Screw
19Support, Insulation
20Cap, Spacer
21814373 Whirlpool Oven Rail Mount
21814374 Whirlpool Oven Rail Mount
22WP9760889 Whirlpool Door Latch
23WP3400832 Whirlpool Screw
24SCREW
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not serviceable)
28WP4448444 Whirlpool Grommet
29WPW10131825 Whirlpool Oven Temperature Sensor
30Screw
31WP4450118 Whirlpool Nut
328285593 Whirlpool Oven Wire Cover
339760677 Whirlpool Oven Vent Deflector
34Insulation Bottom Vent
35Vent, Center
36WP4450038 Whirlpool Screw
37WP9759243 Whirlpool Thermostat
38WP9759242 Whirlpool Thermostat
398528351 Whirlpool Clip
40WP694091 Whirlpool Screw
43Base, Chassis
49WP4448933 Whirlpool Retainer
50WP4451747 Whirlpool Rear Cover
53WPL 4449845
55FOLLOWING PARTS NOT ILLUSTRATED INSULATION
55W11684730 Whirlpool Insulation
55WPL 4450365
55WPL 4455147
