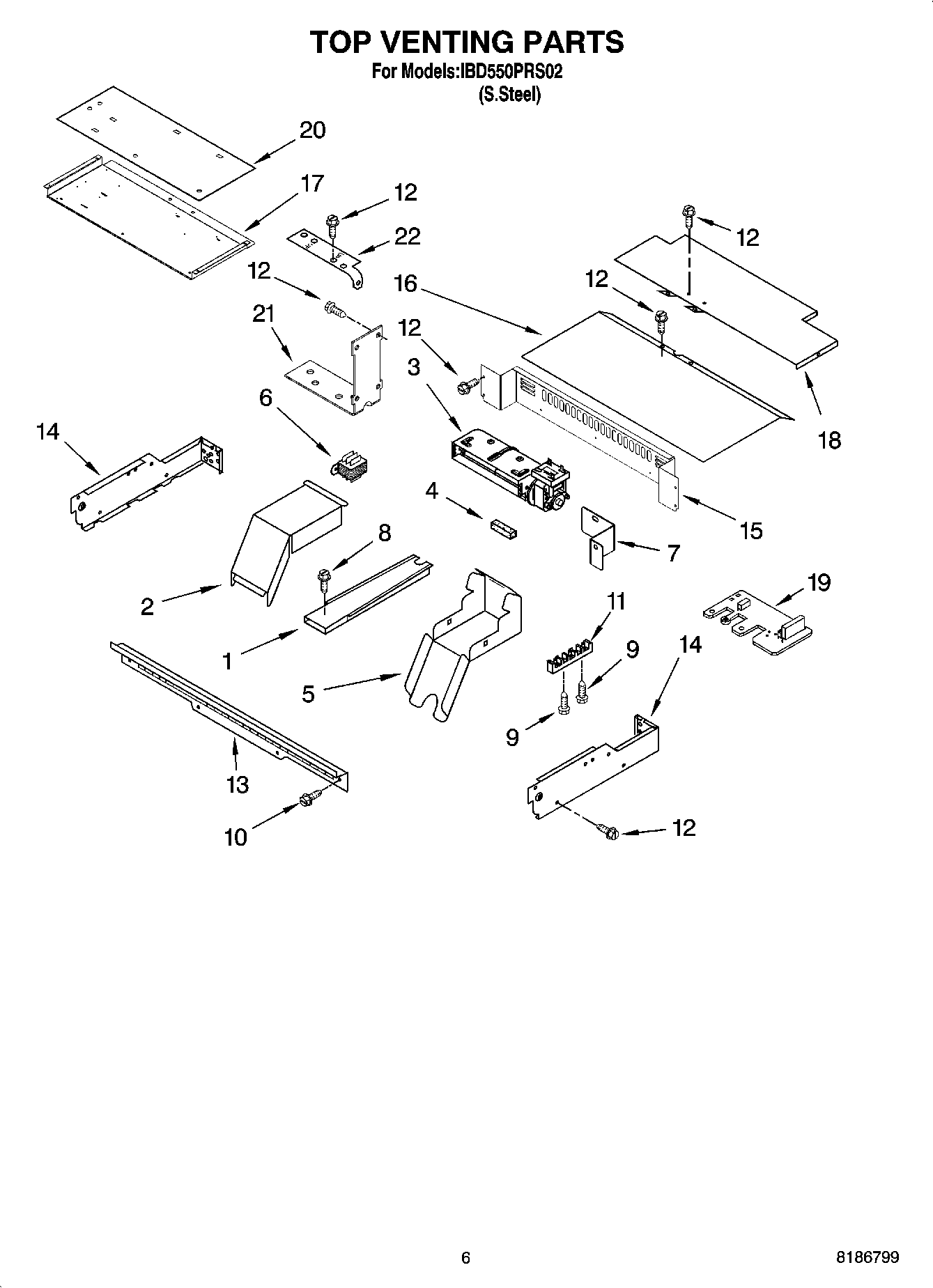

IBD550PRS02 05 – TOP VENTING PARTS, OPTIONAL PARTS

IBD550PRS02 05 – TOP VENTING PARTS, OPTIONAL PARTS

Written by

in

IBD550PRS02 05 – TOP VENTING PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI75171A5
WP261869 Whirlpool Microwave Paint
Wire (14 Ga. 150 c Blue)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 200 c Brown)
WPL 591014
4451761 Whirlpool Oven Support Bracket
WPL ARI75172A1
261900 Whirlpool Microwave Spray
8301909 Whirlpool Oven Wire Harness
8303865 Whirlpool Oven Wire Harness
Harness, Double Ikea
WPL ARI75169A7
WPL ARI75170A9
242831 Whirlpool Oven Wire
16515 Whirlpool Clip
Wire, 25` Roll (Red 14 Ga.)
Wire, 25` Roll (Black 14 Ga.)
WP112432 Whirlpool Nut Assembly
4450800 Whirlpool Oven Screw
WP4449809 Whirlpool Screw
WPW10339879 Whirlpool Wire Tie
72017 Whirlpool Appliance Touch-Up Paint White
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
4448664 Whirlpool Oven Mounting Bracket
4452400 Whirlpool Microwave Wire Harness
WP482338 Whirlpool Refrigerator Adhesive
WP4448950 Whirlpool Screw
Conduit, Double
350930 Whirlpool White Spray Paint
14451759 Whirlpool Oven Exhaust Vent
24455178 Whirlpool Oven Top Elbow
3WPW10016550 Whirlpool Blower Cooling Fan
3W10810687 Whirlpool Blower Assembly
4W10491987 Whirlpool Foam Seal
54455177 Whirlpool Oven Bottom Elbow
6Transformer, Control
78302390 Whirlpool Support Bracket
8Screw
9Screw
10WP4450038 Whirlpool Screw
11WP8203546 Whirlpool Terminal Block
13Vent, (Control Panel)
14W10755214 Whirlpool Side Complete
14W10790240 Whirlpool Side Assembly Complete
15Back, Control
16WP4450551 Whirlpool Top Cabinet
17Mounting Plate
18WP4452367 Whirlpool Top Cover
19WP4451985 Whirlpool Noise Filter Board
20Insulation
21WP4455352 Whirlpool Mounting Bracket
224455191 Whirlpool Oven Mounting Plate
