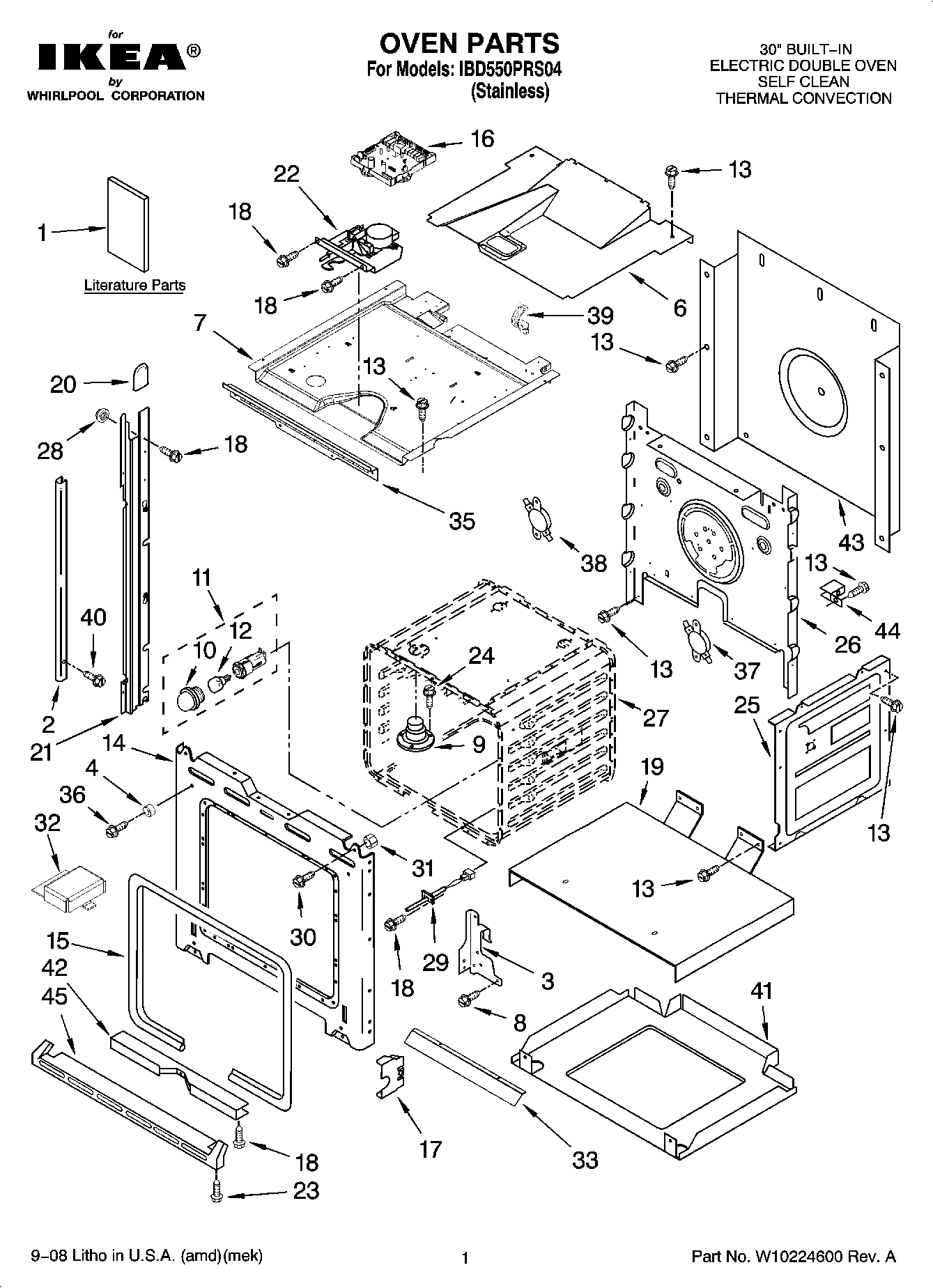

IBD550PRS04 01 – OVEN PARTS

Products

Position	Product
	WPL 4450365
	W11684730 Whirlpool Insulation
	Insulation
	Following Parts Not Illustrated
1	Tech Sheet
1	Instruction, Installation
1	Owners Manual
2	WPW10144986 Whirlpool Trim Assembly
2	WPW10144985 Whirlpool Trim
3	WP4455605 Whirlpool Left Hand Hinge
3	WP4455606 Whirlpool Right Hand Hinge
4	W10105790 Whirlpool Bumper
6	Divider, Vent
7	Top Chassis
8	WP4449743 Whirlpool Screw
9	W10861715 Whirlpool Vent Tube
10	Lens, Light (2)
11	WPW10734065 Whirlpool Light
12	WP4173175 Whirlpool Light Bulb
13	WP4449809 Whirlpool Screw
14	WPW10115831 Whirlpool Front Frame
15	W11675844 Whirlpool Oven Gasket
16	WP8304383 Whirlpool Electronic Control Board + Core
16	Control (Upper)
17	4452152 Whirlpool Oven Mounting Bracket
18	WP4449154 Whirlpool Screw
19	Support, Insulation
20	Cap, Spacer
21	814373 Whirlpool Oven Rail Mount
21	814374 Whirlpool Oven Rail Mount
22	WP9760889 Whirlpool Door Latch
23	WP3400832 Whirlpool Screw
24	SCREW
25	W10782197 Whirlpool Side Panel
26	Back, Chassis
27	Liner, Oven (Not serviceable)
28	WP4448444 Whirlpool Grommet
29	WPW10131825 Whirlpool Oven Temperature Sensor
30	Screw
31	WP4450118 Whirlpool Nut
32	8285593 Whirlpool Oven Wire Cover
33	9760677 Whirlpool Oven Vent Deflector
35	Vent, Center
36	WP4450038 Whirlpool Screw
37	WP9759243 Whirlpool Thermostat
38	WP9759242 Whirlpool Thermostat
39	8528351 Whirlpool Clip
40	WP694091 Whirlpool Screw
41	Base, Chassis
42	WP4448933 Whirlpool Retainer
43	WP4451747 Whirlpool Rear Cover
44	WPL 4449845
45	WPL 4455147
