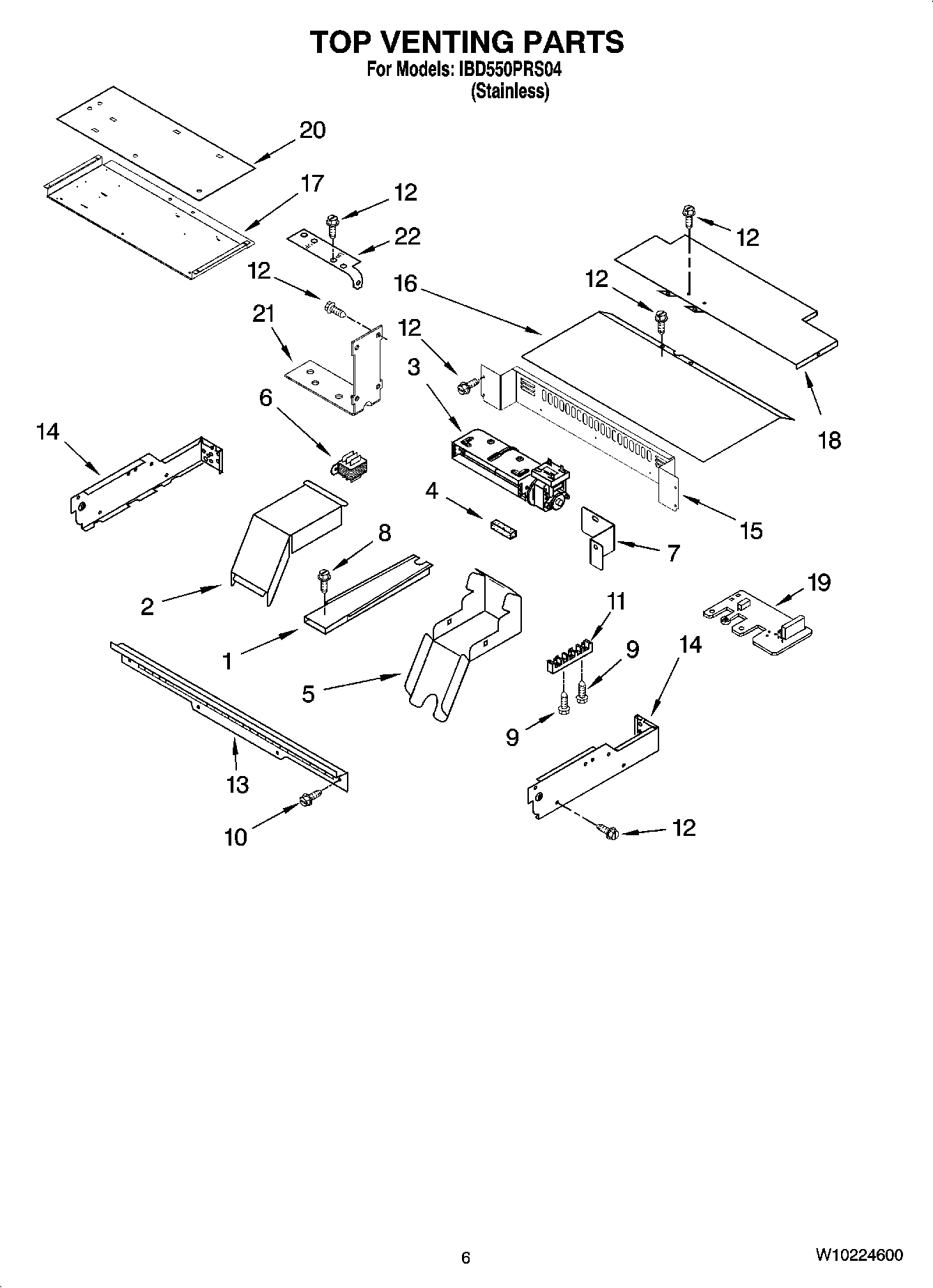

IBD550PRS04 05 – TOP VENTING PARTS, OPTIONAL PARTS

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Conduit, Double
	4452400 Whirlpool Microwave Wire Harness
	16515 Whirlpool Clip
	WP261869 Whirlpool Microwave Paint
	ADHESIVE
	WPL 591014
	Harness, Double Ikea
	8303865 Whirlpool Oven Wire Harness
	Miscellaneous
	8301909 Whirlpool Oven Wire Harness
	WIRING HARNESS PARTS
	WP4448950 Whirlpool Screw
	72017 Whirlpool Appliance Touch-Up Paint White
	WP4449809 Whirlpool Screw
	Nut
	4448664 Whirlpool Oven Mounting Bracket
	4450800 Whirlpool Oven Screw
	261900 Whirlpool Microwave Spray
	WPW10339879 Whirlpool Wire Tie
	285006 Whirlpool Spray
	72032 Whirlpool Touch Up Paint Black
	WP482338 Whirlpool Refrigerator Adhesive
1	4451759 Whirlpool Oven Exhaust Vent
2	4455178 Whirlpool Oven Top Elbow
3	WPW10016550 Whirlpool Blower Cooling Fan
3	W10810687 Whirlpool Blower Assembly
4	W10491987 Whirlpool Foam Seal
5	4455177 Whirlpool Oven Bottom Elbow
6	Transformer
7	8302390 Whirlpool Support Bracket
8	Screw
9	Screw
10	WP4450038 Whirlpool Screw
11	WP8203546 Whirlpool Terminal Block
13	Vent, (Control Panel)
14	W10755214 Whirlpool Side Complete
14	W10790240 Whirlpool Side Assembly Complete
15	Back, Control
16	WP4450551 Whirlpool Top Cabinet
17	Mounting Plate
18	WP4452367 Whirlpool Top Cover
19	WP4451985 Whirlpool Noise Filter Board
20	Insulation
21	WP4455352 Whirlpool Mounting Bracket
22	4455191 Whirlpool Oven Mounting Plate
