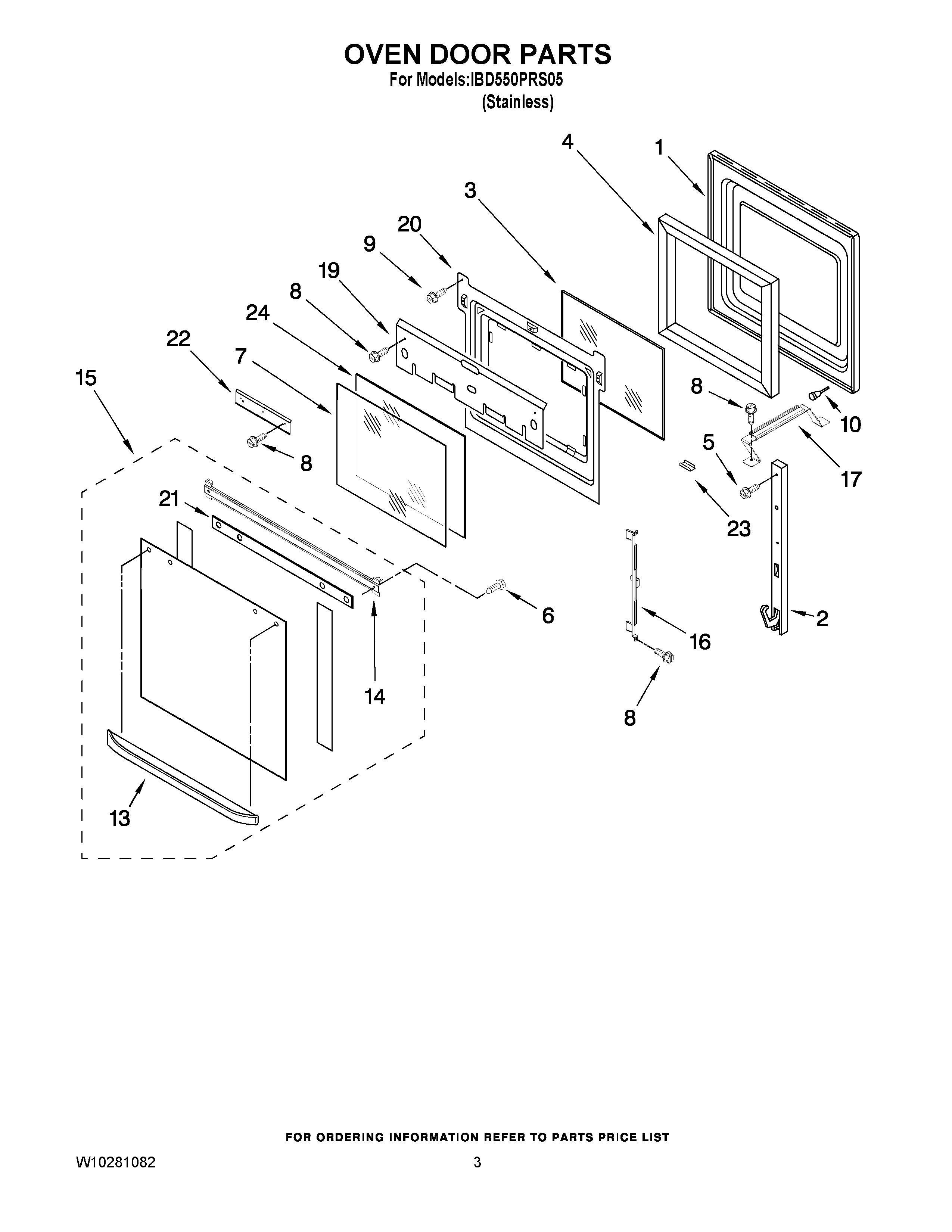

IBD550PRS05 02 – OVEN DOOR PARTS

IBD550PRS05 02 – OVEN DOOR PARTS

Written by

in

IBD550PRS05 02 – OVEN DOOR PARTS

Products

PositionProduct
1WP9759413 Whirlpool Door Liner
2WP9760579 Whirlpool Right Door Hinge
2HINGE-DOOR LH/SS DOOR SPRING
3WP4449259 Whirlpool Glass Window
4WP4451722 Whirlpool Door Insulation Assembly
5WP4449743 Whirlpool Screw
6WPW10132940 Whirlpool Dishwasher Screw
8WP4449809 Whirlpool Screw
9WP3400832 Whirlpool Screw
104448520 Whirlpool Oven Bumper
13Door Handle
14Bracket, Handle
15Assy, Door Glass (Lower)
15Assy, Door Glass (Upper)
16WP9759229 Whirlpool Mounting Bracket
17Bracket (3rd Glsss)
19SHIELD, HEAT TOP
20WP4457132 Whirlpool Retainer
21Seal, Door Top
224457114 Whirlpool Oven Heat Shield
23Retainer, Clip (Stainless)
24WP9759225 Whirlpool Inner Door Glass
