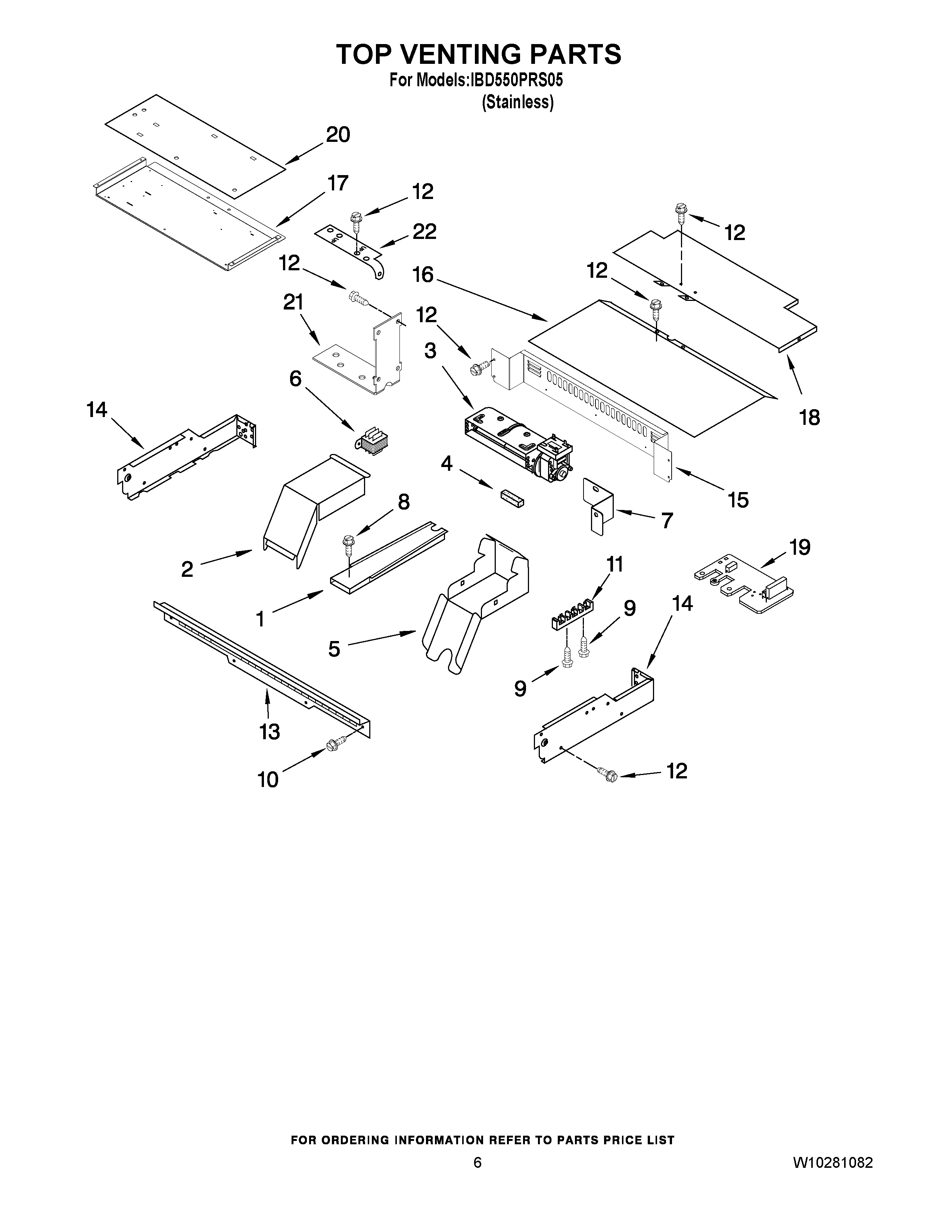

IBD550PRS05 05 – TOP VENTING PARTS

Products

Position	Product
1	4451759 Whirlpool Oven Exhaust Vent
2	4455178 Whirlpool Oven Top Elbow
3	WPW10016550 Whirlpool Blower Cooling Fan
3	W10810687 Whirlpool Blower Assembly
4	W10491987 Whirlpool Foam Seal
5	4455177 Whirlpool Oven Bottom Elbow
6	Transformer
7	8302390 Whirlpool Support Bracket
8	Screw
9	Screw
10	WP4450038 Whirlpool Screw
11	BLOCK, TERMINAL
12	WP4449809 Whirlpool Screw
13	Vent, (Control Panel)
14	W10790240 Whirlpool Side Assembly Complete
14	W10755214 Whirlpool Side Complete
15	Back, Control
16	WP4450551 Whirlpool Top Cabinet
17	Mounting Plate
18	WP4452367 Whirlpool Top Cover
19	WP4451985 Whirlpool Noise Filter Board
20	Insulation
21	WP4455352 Whirlpool Mounting Bracket
22	4455191 Whirlpool Oven Mounting Plate
