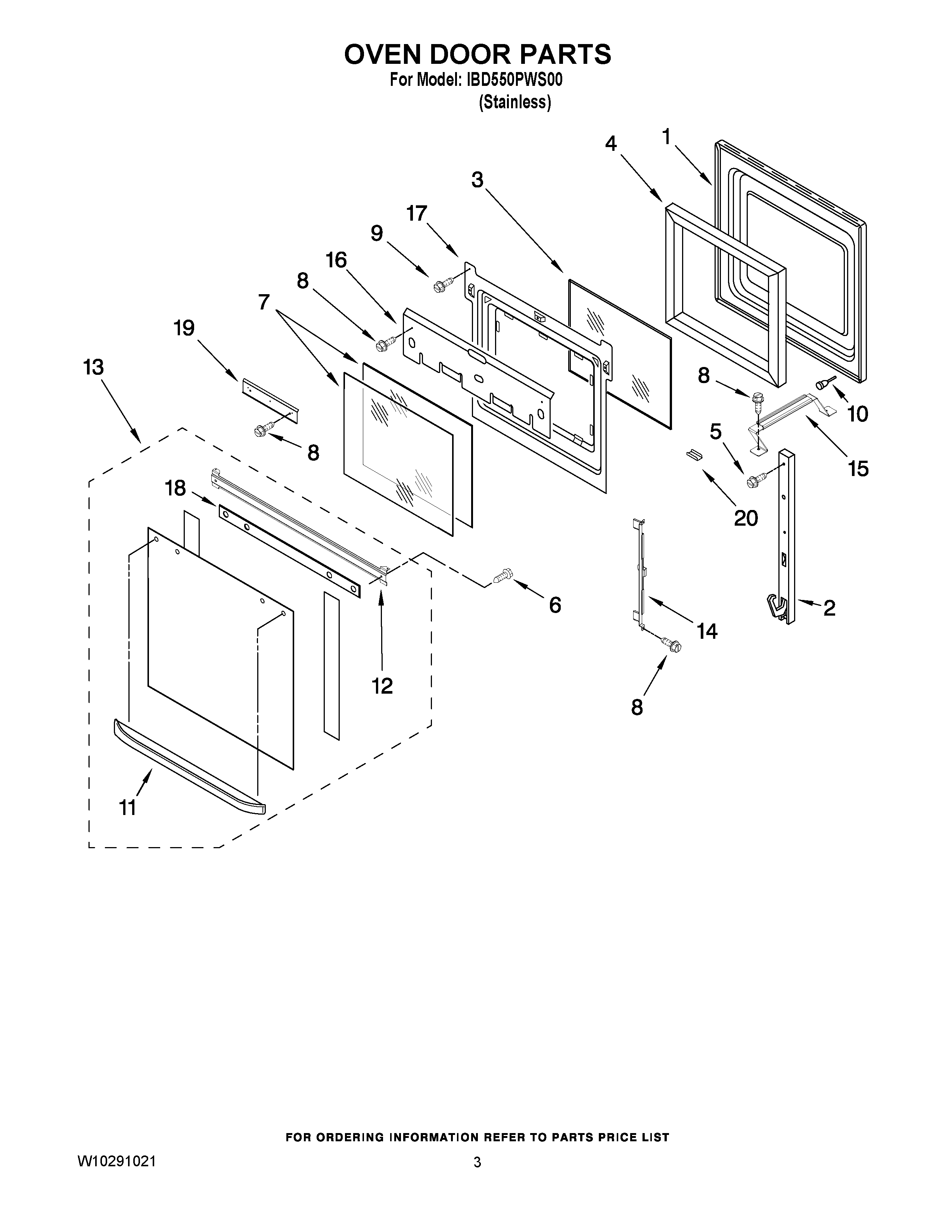

IBD550PWS00 02 – OVEN DOOR PARTS

IBD550PWS00 02 – OVEN DOOR PARTS

Written by

in

IBD550PWS00 02 – OVEN DOOR PARTS

Products

PositionProduct
1WP9759413 Whirlpool Door Liner
2WP9760579 Whirlpool Right Door Hinge
2HINGE-DOOR LH/SS DOOR SPRING
3WP4449259 Whirlpool Glass Window
4WP4451722 Whirlpool Door Insulation Assembly
5WPW10292297 Whirlpool Screw
6WPW10132940 Whirlpool Dishwasher Screw
7WP9759225 Whirlpool Inner Door Glass
8WP4449809 Whirlpool Screw
9WP3400832 Whirlpool Screw
104448520 Whirlpool Oven Bumper
11Door Handle
12Bracket, Handle
13ASSY, DOOR GLASS (UPPER)
13Assy, Door Glass (Lower)
14WP9759229 Whirlpool Mounting Bracket
15Bracket (3rd Glsss)
16SHIELD, HEAT TOP
17WP4457132 Whirlpool Retainer
18Seal, Door Top
194457114 Whirlpool Oven Heat Shield
20Retainer, Clip (Stainless)
