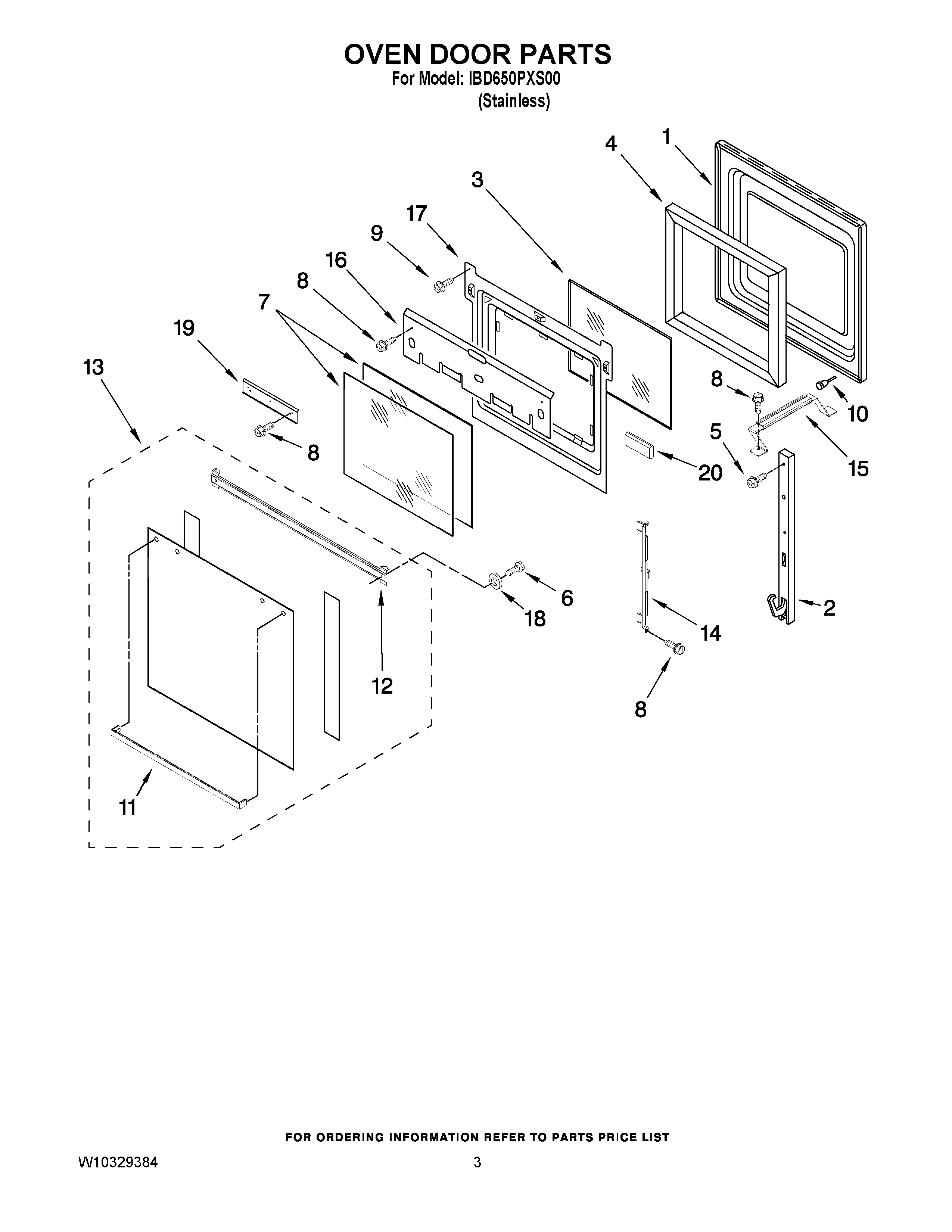

IBD650PXS00 02 – OVEN DOOR PARTS

Products

Position	Product
1	WP9759413 Whirlpool Door Liner
2	WP9760578 Whirlpool Oven Left Door Hinge
2	WP9760577 Whirlpool Oven Right Door Hinge
3	WP4449259 Whirlpool Glass Window
4	WP4451722 Whirlpool Door Insulation Assembly
5	WPW10292297 Whirlpool Screw
6	SCREW
7	WP9759225 Whirlpool Inner Door Glass
8	WP4449809 Whirlpool Screw
9	WP3400832 Whirlpool Screw
10	4448520 Whirlpool Oven Bumper
11	HANDLE, DOOR
12	Bracket, Handle
13	ASSY, DOOR GLASS
14	WP9759229 Whirlpool Mounting Bracket
15	Bracket (3rd Glsss)
16	SHIELD, HEAT TOP
17	WP4457132 Whirlpool Retainer
18	WASHER
19	4457114 Whirlpool Oven Heat Shield
20	Spacer, Glass
