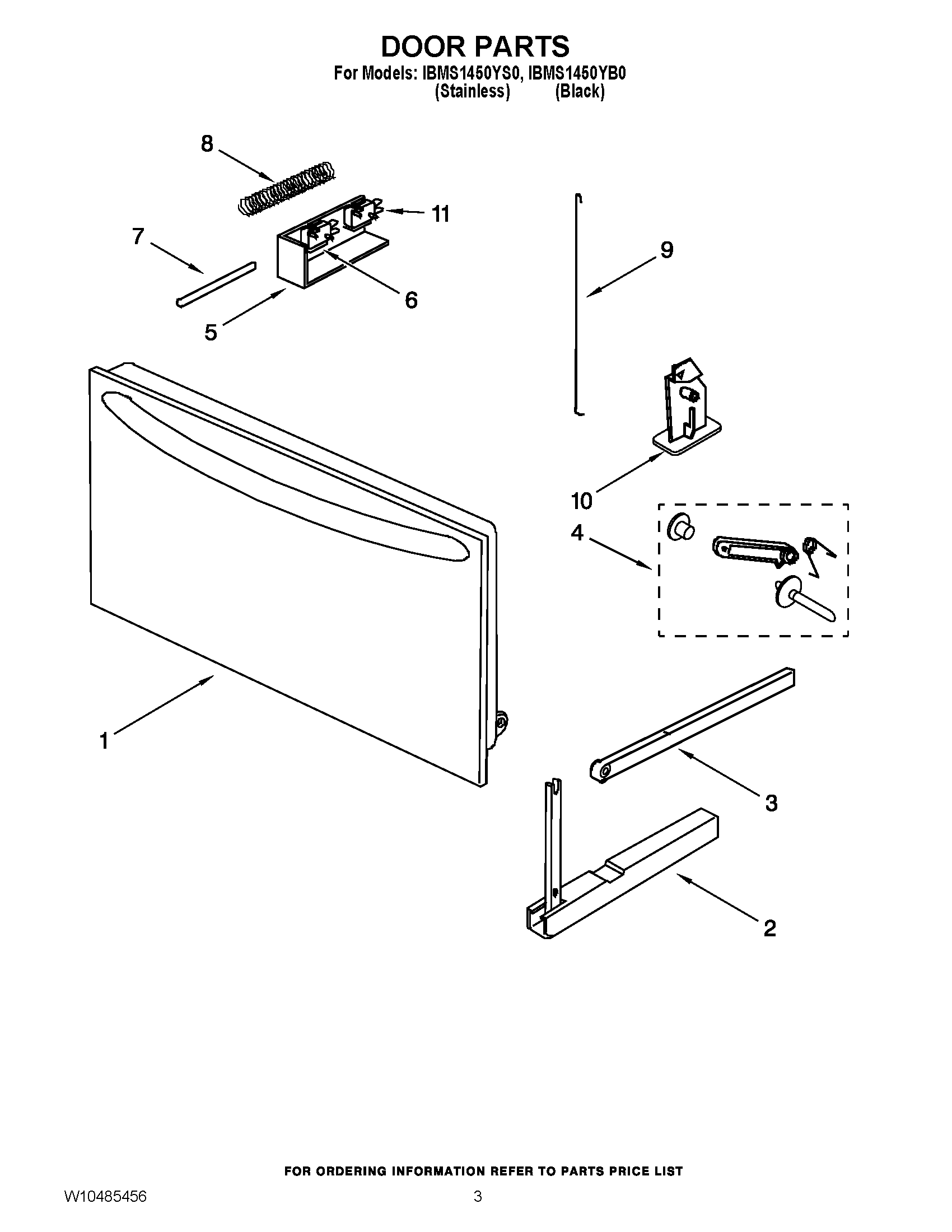

IBMS1450YB0 03 – DOOR PARTS

IBMS1450YB0 03 – DOOR PARTS

Written by

in

IBMS1450YB0 03 – DOOR PARTS

Products

PositionProduct
1DOOR ASSEMBLY (BLACK)
1WPW10485207 Whirlpool Microwave Door Assembly
2W11700293 Whirlpool Door Hinge
3W11214480 Whirlpool Microwave Arm
4WPW10128850 Whirlpool Microwave Arm
5WP8205683 Whirlpool Microwave Interlock
6W10269458 Whirlpool Microwave Door Switch
7Push-Rod (2)
8W11715912 Whirlpool Spring Assembly
9W11700292 Whirlpool Spring
10W11684510 Whirlpool Support
11W10211972 Whirlpool Microwave Switch
