IBMS1450YB0 04 – TOP VENTING PARTS

IBMS1450YB0 04 – TOP VENTING PARTS

Written by

in

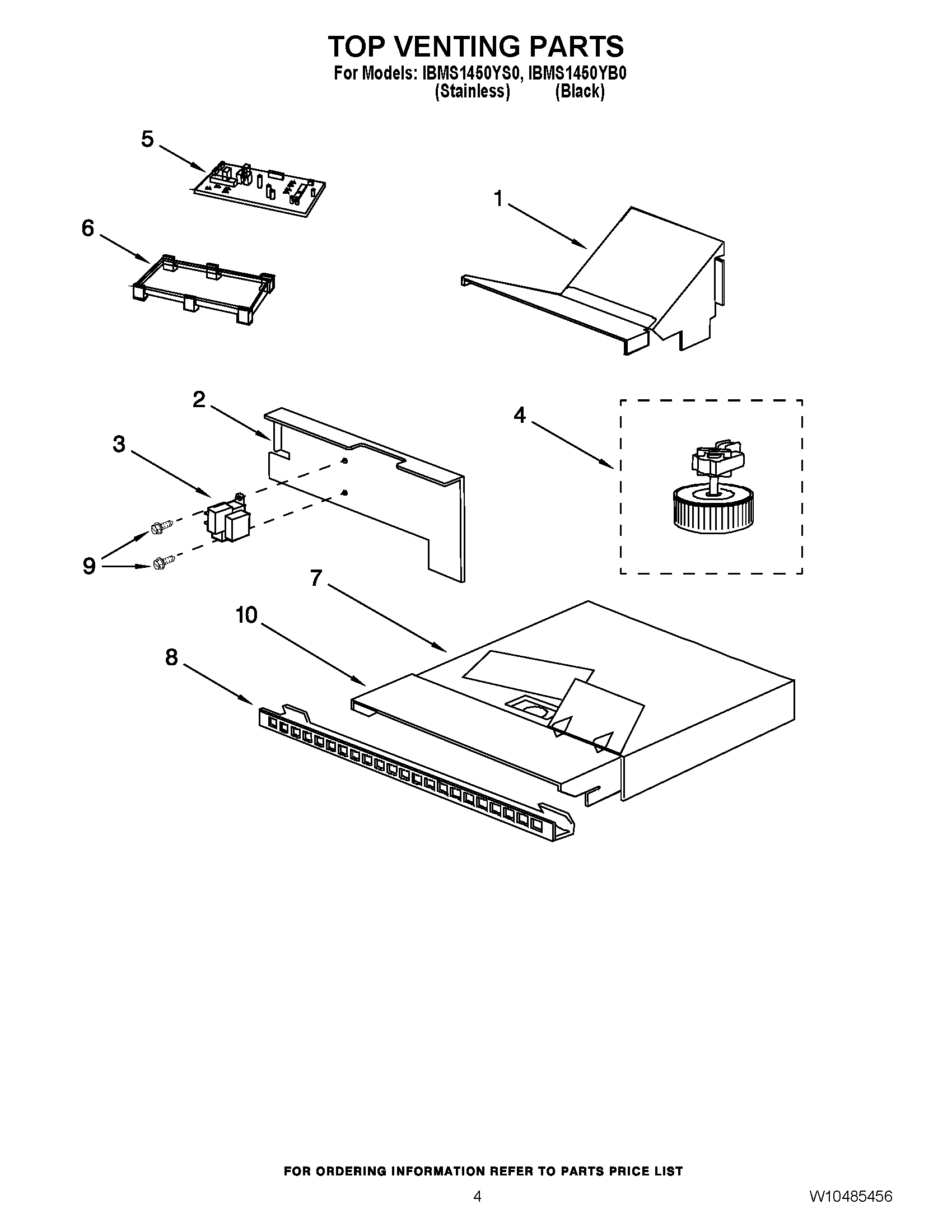

IBMS1450YB0 04 – TOP VENTING PARTS

Products

PositionProduct
1Air Duct
2Air Guide
3W11238401 Whirlpool Microwave Transformer
4461968973761 Whirlpool Microwave Fan Motor
5WPW10217471-includeCORE Whirlpool WPW10217471 Refrigerator Electronic Control Board + Core
6461967750752 Whirlpool Support Bracket
7Top Chassis
8461967749811 Whirlpool Microwave Vent Panel
9461967825321 Whirlpool Microwave Screw
10W10141634 Whirlpool Microwave Cover Plate
